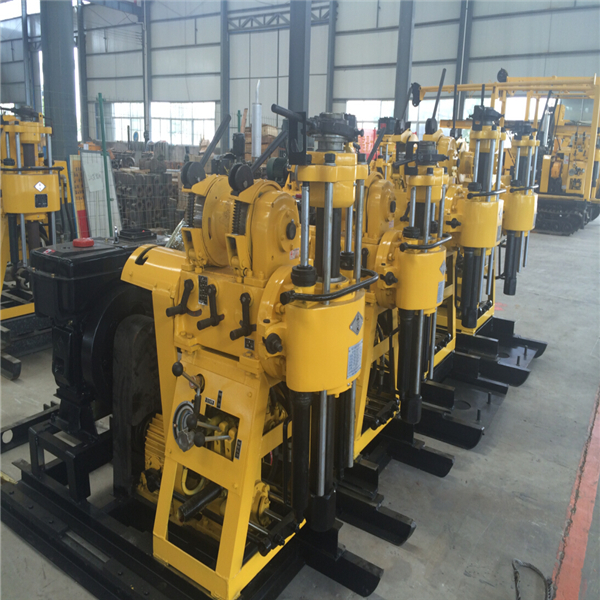

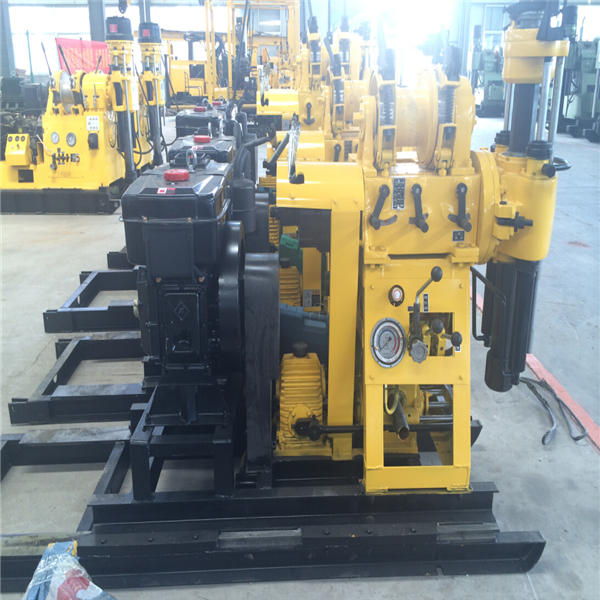

Factory Direct Sale Manufacturer Price Hydraulic Rotary Small Portable Water Well Drilling Machine
Product Introduction
Factory Direct Sale Manufacturer Price Hydraulic Rotary Small Portable Water Well Drilling Machine
Scope of application
HWD-230 drilling rig is mainly used for geological general investigation and exploration ,road and tall building foundation exploration ,kinds of hole in concret structure,river levees, subgrade grouting hole,drilling and direct grouting,civil wellsand earth temperature central air-conditioner,etc.
Technology Parameters
Factory Direct Sale Manufacturer Price Hydraulic Rotary Small Portable Water Well Drilling Machine
| The whole machine parameters | |
| Drill hole depth | 200m |
| Maximum opening diameter | φ75-φ300mm |
| Final hole diameter | 75mm |
| Take the initiative to drill pipe | 53/59*4200mm |
| Drill pipe diameter | φ50,φ60mm |
| Borehole inclination | 90°~75° |
| Power (diesel engine) | 15/2200kW/r/min |
| Structure weight/size | 1150kg/2700*950*1770 |
| Vertical shaft | |
| Vertical spindle speed | 64,128,287,557r/min |
| Vertical stroke | 450mm |
| Hoist | |
| Single rope lift | 24kN |
| Single rope winding speed | 0.12,0.22,0.49,0.95m/s |
| Drum diameter | φ140mm |
| Diameter of wire rope | φ13mm |
| Wire rope capacity | 35m |
Factory Direct Sale Manufacturer Price Hydraulic Rotary Small Portable Water Well Drilling Machine
Product Overview
Factory Direct Sale Manufacturer Price Hydraulic Rotary Small Portable Water Well Drilling Machine
Factory Direct Sale Manufacturer Price Hydraulic Rotary Small Portable Water Well Drilling Machine
Quality Certificate
Our Factory and Customers
Factory Direct Sale Manufacturer Price Hydraulic Rotary Small Portable Water Well Drilling Machine
