china-made electric diesel drive mini water well drill rig for home use

Click on the image to view the original image

Product：	views：2china-made electric diesel drive mini water well drill rig for home use
Branch：	HENG WANG
Type：	Rotary Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:32

Product Details

Overview

Quick Details

Condition:: New

Type:: Rotary Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: HENG WANG

Model Number:: HW-80

Usage:: Water Well

Voltage:: 220V/380V

Power(W):: 8.8kw, 8.8KW

Dimension(L*W*H):: 1100*600*500, 1100*600*500mm

Weight:: 700kg

Certification:: ISO9001

Drilling depth:: 80m-100m

Application:: Water Wells

Drilling diameter:: 70-300mm

Feature:: Multifunctional

Color:: Customised

Drilling angle:: 0-360

Air consumption:: 15m3/min

Area:: Household

After-sales Service Provided:: No overseas service provided

Warranty:: One Year

Supply Ability

Supply Ability:: 1000 Piece/Pieces per Month China best sellerGeotechnical Drill Diesel Small Water Well Dr

Packaging & Delivery

Packaging Details: wooden case or as your requirement

Port: SHANGHAI QINGDAODALIAN

Lead Time:: within 5 working days after deposit

china-made electric diesel drive mini water well drill rig for home use

Product Introduction

This machine mainly used for geothermal drilling, farm irrigation , house yard, gardens and water well drilling, drilling diameter is 70-300mm, and drilling depth is 60-80m. It also can be used in small building piling, like farmhouse or factory and so on, the drilling diameter can reach 500mm and depth can be more than 10m.

Features:

1. Light weight. The main engine is only weighted 0.135tons ;

2. Unique design and simple drilling structure;

3. Easy to transport and can learn how to handle the machine in short time;

4. Can drill through hard stratum, unless thick rock layer ;

5. Can drill deep. Equipped with raser, reduce the labor intensity ;

6. High efficiency, the drilling speed can reach 20meters depth per hour, in plain area ;

7. Assure easily operation and long life span to save more labors and money for you;

8.The packing of the machine is wood box, the CBM is about 2.0m³, the total weight (complete set) is about 850KG .

Question and answer

1: What kind of drilling work can it do?

Mainly applies to drill wells for farm irrigation wells, garden irrigation wells, drilling water wells, geothermal wells.

2: What are the max. depth and the max. diameter of holes allowed for this drill rig?

250mm diameter and 150m depth are available. Here we sincerely inform that the final depth and diameter will subject to your special local working strata and drilling experience.

3: What kind of working strata is OK ?

Soil, sandy, clay, sediment, soft rocks, etc. Certainly, the special strata need different drilling bits. Please note that this model is not designed for drilling hard rocks

4: What is your advantage over this drill?

Economical and worthy to owned by any family.Practical and efficient by drilling speed of 40m/h; Easy operate and maintain by only two workers.

Technology Parameters

Technical Parameters of Water Well Drilling Rig
Type	HW-80
Max. Drilling Diameter	70-300mm
Max. Drilling Depth	60-80m
Total Power	8.8 kw
Engine Power	1.2kw
Lifting Power	1.0kw
Pump	2.2kw,220V(flow head 46m)
Capacity of hoist	1.0t
Height of tower	3m
Total Weight	700kgs(150m pipes)
Drilling Rod Length	2m/piece
Diameter of Drilling Rod	42mm

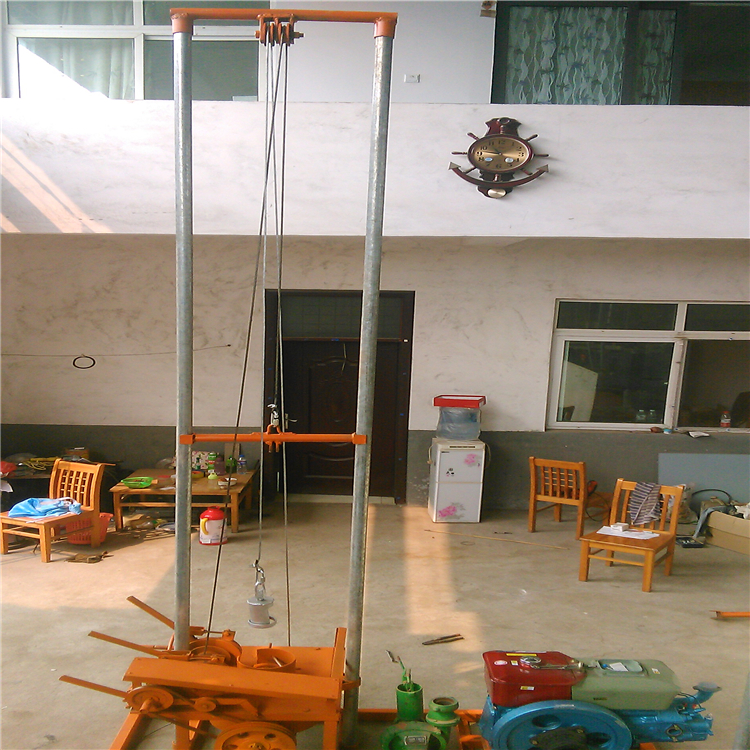

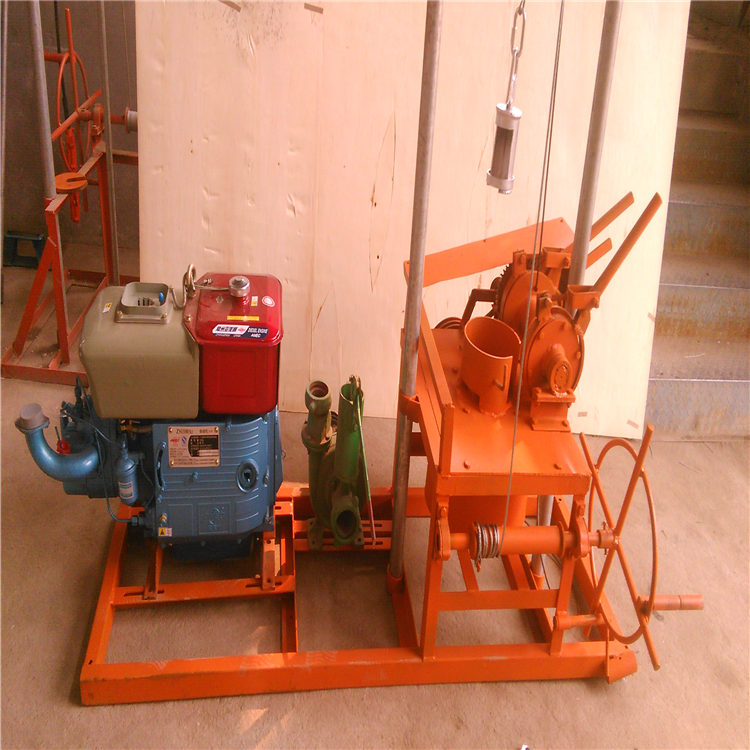

The real details photo
