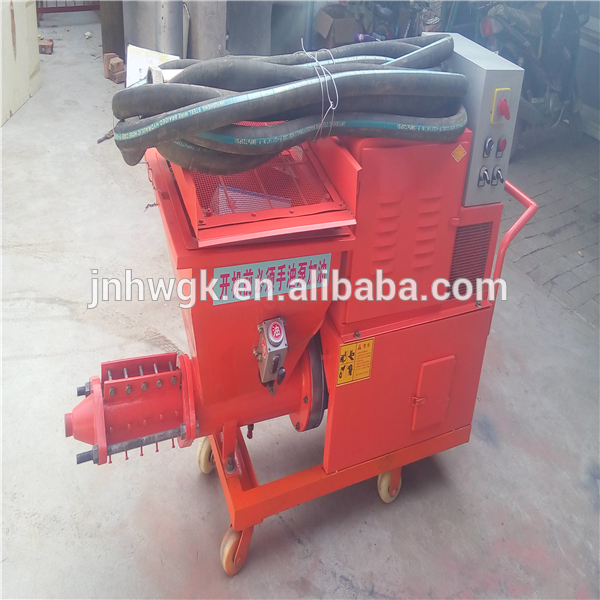

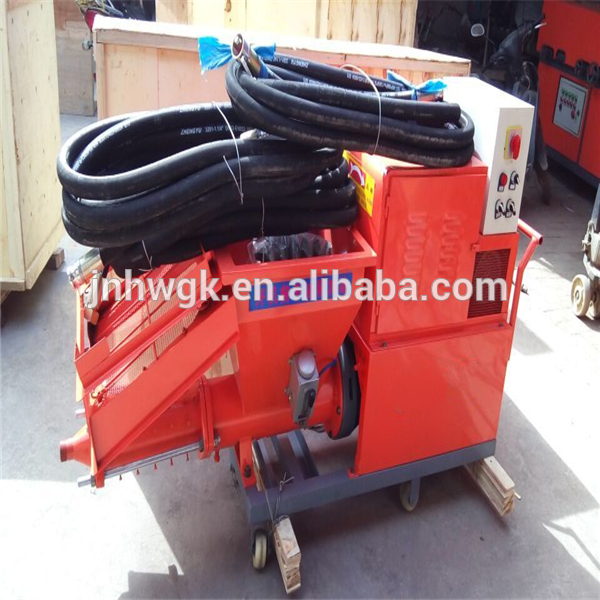

Stable Working Cement Equipment Fast Mortar spraying machine/Epoxy Putty Motar Sprayer

Click on the image to view the original image

Product：	views：2Stable Working Cement Equipment Fast Mortar spraying machine/Epoxy Putty Motar Sprayer
Branch：	Jining Hengwang
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:32

Product Details

Overview

Quick Details

Weight:: 340kg

Dimension(L*W*H):: 1460*600*1100mm

Condition:: New

Application:: Construction

Place of Origin:: China

Brand Name:: Jining Hengwang

Model Number:: KSP-4

Certification:: ISO

Name:: Fast Mortar spraying machine

Convey height:: 30m

Max conveying capacity:: 4m3/h

Spary distance:: 30-50cm

Auxiliary Air Compressor:: 0.36m3/h

Main Motor Power:: 9.7kw

Water Flux Ration: grey:: 0.7-1:1:3

Hopper capacity:: 60L

Voltage:: 380V

After-sales Service Provided:: Engineers available to service machinery overseas

Warranty:: 1 Year

Supply Ability

Supply Ability:: 12000 Set/Sets per Year Mortar spraying machine

Packaging & Delivery

Packaging Details: Standard Box

Port: Qingdao

Lead Time:: Shipped in 7 days after payment

Product Description

Mortar spraying machine is widely used for spraying mortar on the wall ,tunnel ,channel ,etc. Available spraying material means sand ,cement , water,etc , other things that the diameter is no more than 6mm.

Main Features

1, Reasonable design , Integration of pumps and compressors .
2,Feeding continuous no pulse .
3,Wider practicability ,can spray powder ,mortar ,also can spray ordinary mortar
4,Spray evenly ,adhesion is strong
5,Multiple functions ,can either spray coating and guniting .
6,Spray gun and nozzle connection can choose any direction ,easy to operation .

Technical Parameter
