hot sale Manual Hand Press Machine

Click on the image to view the original image

Product：	views：2hot sale Manual Hand Press Machine
Branch：	HW
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:32

Product Details

Overview

Quick Details

Place of Origin:: Shandong, China

Brand Name:: HW

Dimension(L*W*H):: 120X80X180CM

Model:: hydraulic punching machine

condition:: new

Bore Diameter:: 10.5 - 20.5

Application:: Power Construction

Weight(KG):: 13.5

Color:: Can be ordered

Punching force:: 31T

Function:: hole punching

Material:: Copper

Throat depth:: 95mm

Condition:: New

CNC or Not:: Normal

Power Source:: Hydraulic

Voltage:: 380V

Power(W):: 0.75KW

Weight:: 20KG

Certification:: ISO9001

Supply Ability

Supply Ability:: 20000 Piece/Pieces per Year hydraulic punching machine

Packaging & Delivery

Packaging Details: wooden case

Port: qingdao

Product Description

Product Introduction

hydraulic punching machine

CH-60 hydraulic pressure hole puncher for angle iron
1 It is used for punching holes on Cu/AI bus bar.
2 Punching force: 35T

CH-60 Split-unit hydraulic puncher hole machine

CH-60 Punching the different kind of metal sheet up to 10mm

CH-60 Hydraulic punching tool for punching hole on 10mm below metal plate.

Max thickness of sheet: 10mm

Punching force:31KN

Depth of throat:95mm

Weight:approx.18kgs

ACCESSORIES:

3/8"(ø10.5mm),1/2"(ø13.8mm),5/8"(ø17mm),3/4"(ø20.5mm)

Another type

FM-YP8

Punching force:30T

Hydraulic Power required: 63MPa, 0.52 L/min

Connecting with threaded connector PT3/8”-19
Throat depth: 95 mm

Punching capacity: 8 mm mild steel, 10 mm cupper and Alumiunm

Net Weight: 15KG
Standard Accessories: 4 sets of round hole punching die for Dia. 7.0mm, 9.0mm, 11.00mm and 13.00mm

Figure photos

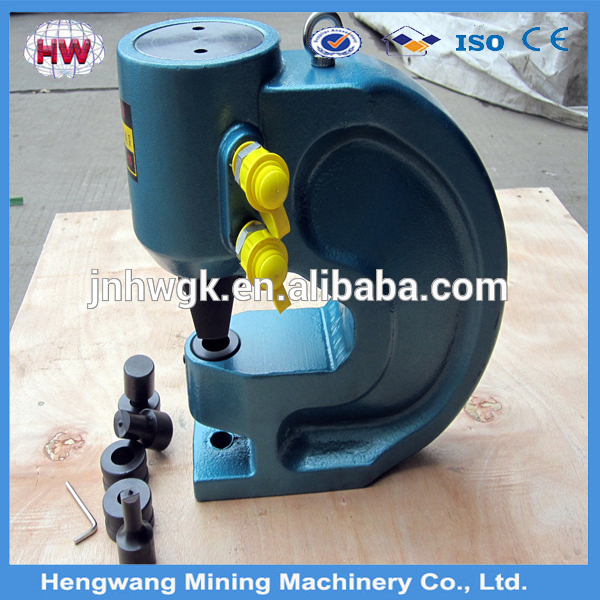

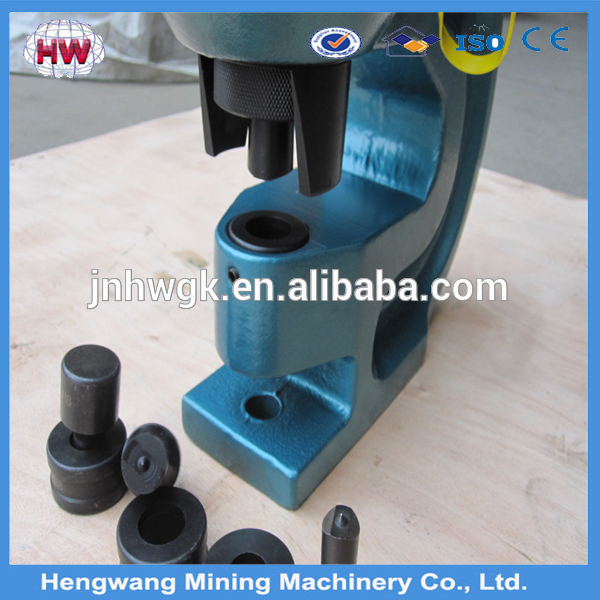

The real details photo
