Home > Products > mining drilling machine/coal mining machine/ mining core drilling portable rock drill
mining drilling machine/coal mining machine/ mining core drilling portable rock drill
Click on the image to view the original image
Product： views：2mining drilling machine/coal mining machine/ mining core drilling portable rock drill
Branch： HWGK2100
Type： Core Drilling Rig
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:33
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
Type:
Core Drilling Rig
Power Type:
gasoline, petrol ,ETC
Place of Origin:
Shandong, China
Brand Name:
HWGK2100
Model Number:
HW
Usage:
Coal
Voltage:
Gasoline Engine Driven
Power(W):
5.8KW
Dimension(L*W*H):
38*25*32cm(engine)
Weight:
25KGS
Certification:
ISO/CE
Application:
mineral,oil and gas exploration
rock core drilling diameter:
32-108mm
Product name:
mining core drilling
Water consumption:
14.4L/hr
Oil consumption:
0.39L/hr
drilling core diameter:
32-108mm
Drilling rig power:
7.75HP
Maximum drilling depth:
30m
Gasoline/Petrol engine:
KOHLER
Rated Power:
5.8KW
After-sales Service Provided:
Overseas third-party support available
Warranty:
1Year
Supply Ability
Supply Ability:
2500 Set/Sets per Month mining drilling machine/coal mining machine/ mining core drillin
Packaging & Delivery
Packaging Details
regular packaging
Port
qingdao/dalian/ningbo/tianjing
Lead Time:
with 3 day
Video Description



Product Description

 Core drill description

1.The portable drilling machine is designed for mineral,oil and gas exploration, it is tailored for geological research and prospectors



2.we have decades of experience and accumulation in dozens of countries and regions in the world of field validation, we constantly improve and upgrade the quality of our products and we believe that the equipment will be helpful for your work



3. The engine of portable drilling machine is original Honda engine which has one of the best quality and long life service



 Core drill parameter



Model: HW-B30

Drilling diameter : φ32-108mm

Drilling depth :30m

Adaptation Geological:soil, loose cover, all kinds of rock

Consumption: about 0.3L / min

Drill diameter : φ32mm

Drill length :750mm (with joints)

Drill pipe material: titanium

Drill pipe weight:about 1.1kg

Gasoline brand : KOHLER

Gasoline models: XT Series 775

Gasoline engine power :7.75HP

Rated speed : 2800rpm

Machine weight :about 25kg



 Core drill efficiency





Silicalite     69mm/min







Slate     119mm/min







Basalt     127mm/min







Sandstone    130mm/min







Dolomite    226mm/min







Limestone    241mm/min

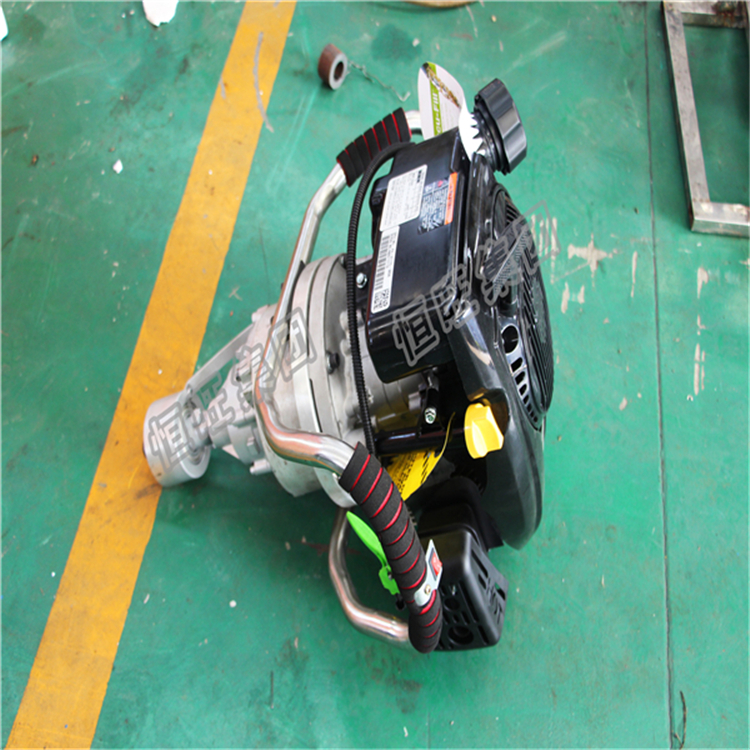

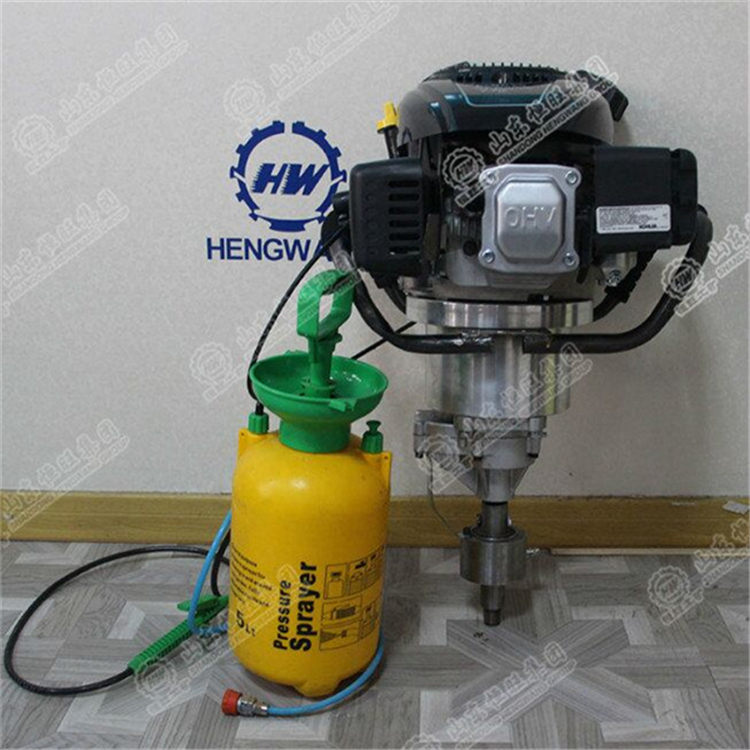

Core drill show



Packaging & Shipping



Company cooperation





mining drilling machine/coal mining machine/ mining core drilling portable rock drill

Customer Visit

 mining drilling machine/coal mining machine/ mining core drilling portable rock drill

Certifications

 mining drilling machine/coal mining machine/ mining core drilling portable rock drill

FAQ

 mining drilling machine/coal mining machine/ mining core drilling portable rock drill

Contact Way

Miss.Nina Rao
Overseas Marketing Manager
Tel.: 0086-537-2081658 mobile phone:008613668679003
Skype:649932389at qq.com Whatsapp:+8618353787695
E-mail:hw004at hengwanggk.com
