Rail Bender For Steel Rails
Railway bending machine description
Hydraulic bend machine is a dedicated to laying railway line in tunnel mining slope level elevation changes at the scene of the track-laying for below 50 kg/m or light rail vertical bending or adjustment. Hydraulic rail bending machine designed by the principle of hydraulic transmission and leverage, using static pressure on curved track rail horizontal and vertical curve or straight rail operations.
Railway bending machine features
It can save power, a person can complete the curved or straight rail track action, unloading fast, you can quickly get a lot of bends
Railway bending machine parameter
Item | Hydraulic rail bender | |
Model | HW-WG600 | HW-WG300 |
Bending direction | horizontal | horizontal |
Rails (kgs/m) | 30-50 | ≤24 |
Max bending capacity (KN) | 600 | 300 |
Rated bending capacity (KN) | 520 | 290 |
Piston stroke (mm) | 70 | 70 |
Overall weight (kg) | 70 | 30 |
Overall size (mm) | 990x555x183 | 730x450x165 |

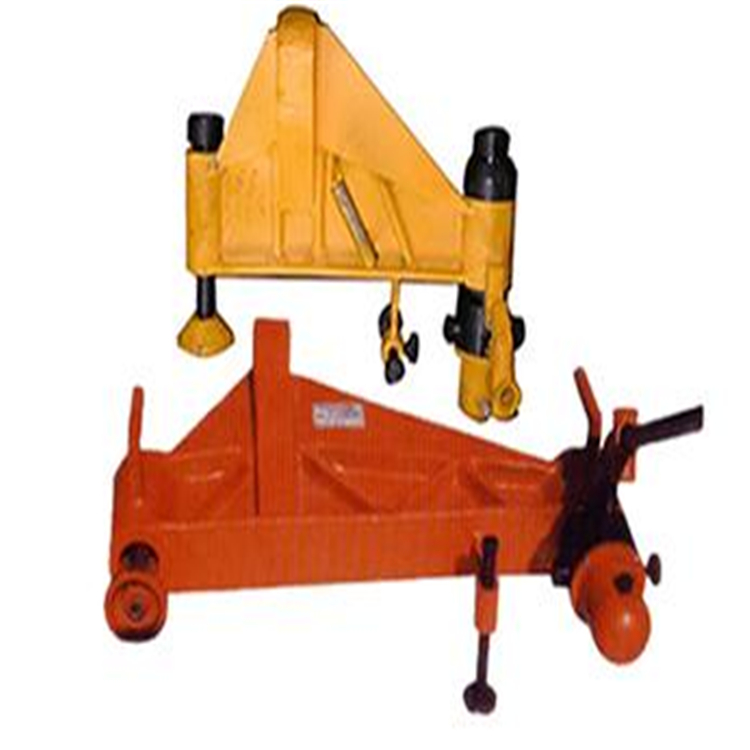

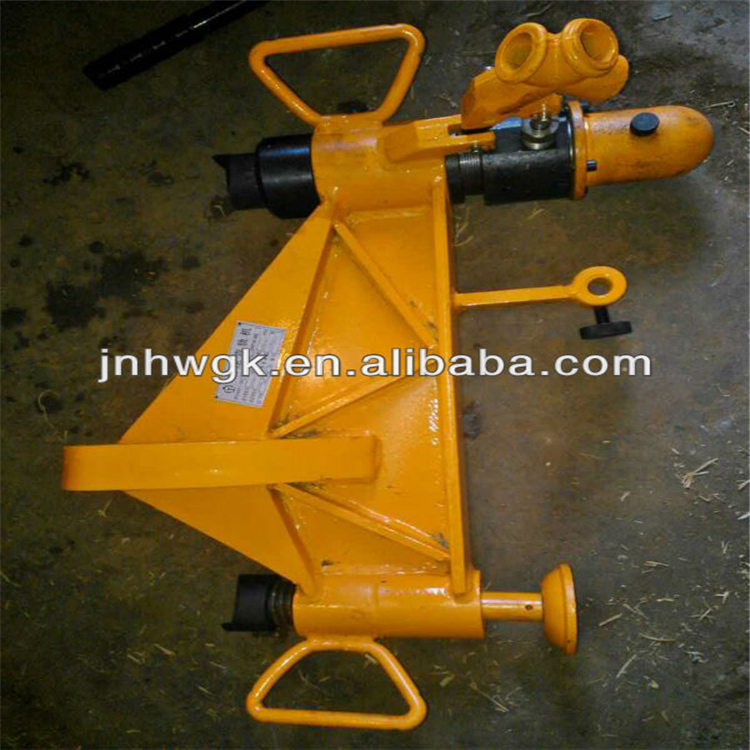

Railway bending machine picture
