3 in 1 Busbar processing machine for copper and aluminum bus bar processing machine
3 in 1 Busbar processing machine for copper and aluminum bus bar processing machine
Application :
This processor is suitable for making large electric cabinet ,power distribution cabinets ,switch
cabinets and power transmission and distribution construction engineering construction site use.
Feature :
This machine is with reference to foreign advanced products ,combined with domestic practical
situation , to provide the efficiency and guarantee of safety requirement and the design of form a
complete set of equipment .
Most suitable for making large electric cabinet and transmission and distribution construction
project fields use .High flexibility , small volume , big power , high production capacity and high
work efficiency .Low noise ,harmless processing . Finishing product is beautiful and won"t cause
pollution to the environment .
Parameter:
| Model | HW-150 |
| Functions | With three functions,cutting,punching and bending |
| Input voltage/control voltage | 700kgf/cm2(Over pressure safety valve setting value) |
| Outlet force of bus bar cutter | 25ton |
| Bus bar cutting capablility | (Copper bus bar/Aluminum bus bar)150x12mm |
| Outlet force of puncher | 31 ton |
| The distance between hole center and bus bar edge | 95mm |
| Punching capablity-coper bus bar/aluminum bus bar | φ6-φ20.5 Max thickness:10mm |
| Standard assembled punching dies | φ10.5mm,φ13.8mm,φ17.5mm,φ20.5mm |
| Outlet force of bender | 20 ton |
| Horizontal bending capability | 150x12mm |
| Weight | 190kg |
| Dimension of moveable workbench | 70cm(L)X70cm(W)X80cm(H) |
Machine dimension | 760mm(L)X760mm(W)X1000mm(H) |

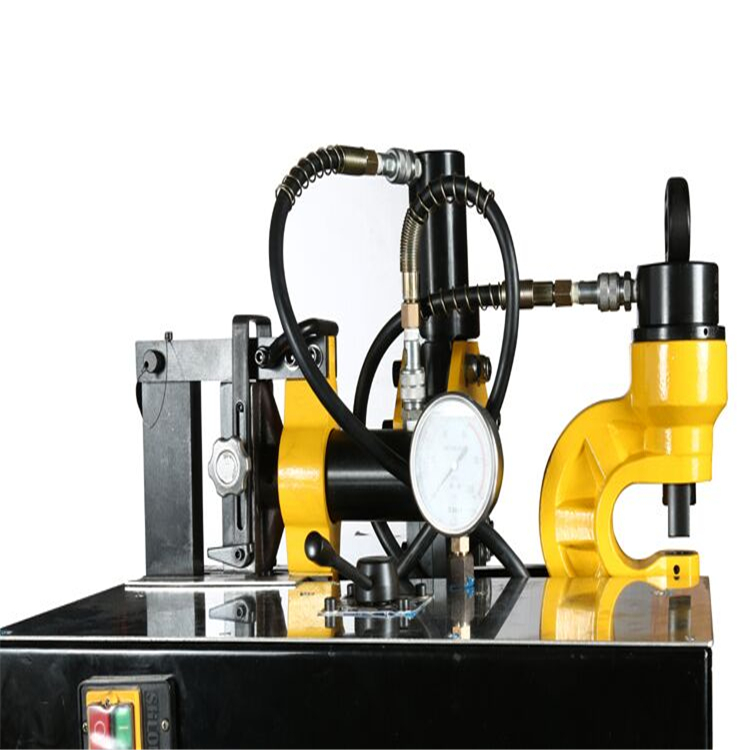

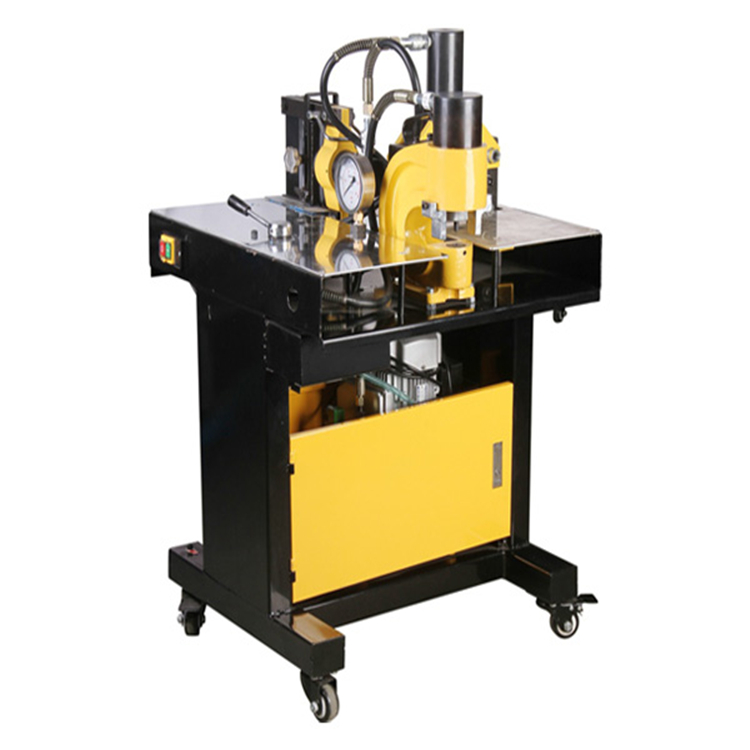

Product show
