china factory price cnc busbar turret machine copper busbar processing machine
china factory price cnc busbar turret machine copper busbar processing machine
Application :
This processor is suitable for making large electric cabinet ,power distribution cabinets ,switch
cabinets and power transmission and distribution construction engineering construction site use.
Feature :
This machine is with reference to foreign advanced products ,combined with domestic practical
situation , to provide the efficiency and guarantee of safety requirement and the design of form a
complete set of equipment .
Most suitable for making large electric cabinet and transmission and distribution construction
project fields use .High flexibility , small volume , big power , high production capacity and high
work efficiency .Low noise ,harmless processing . Finishing product is beautiful and won"t cause
pollution to the environment .
Parameter:
| Function | Item | MODEL | |||
| HW-303 | HW-503 | HW-303S | HW-503S | ||
| Punching | Max. Punching Force (KN) | 300 | 500 | 300 | 500 |
| Punching Diameter Range (MM) | Ø4.3-Ø25 | Ø4.3-Ø34 | Ø4.3-Ø25 | Ø4.3-Ø34 | |
| Max. Thickness (MM) | 12 | 16 | 12 | 16 | |
| Max. Width (MM) | 150 | 200 | 150 | 200 | |
| Shearing/Cutting | Max. Shearing Thickness (MM) | 12 | 16 | 12 | 16 |
| Max. Shearing Width (MM) | 150 | 200 | 150 | 200 | |
| Honrizental Bending | Max. Bending Force (KN) | 300 | 500 | 300 | 500 |
| Max. Thickness (MM) | 150 | 200 | 150 | 200 | |
| Max. Width (MM) | 12 | 16 | 12 | 16 | |
| Vertical Bending | Max. Width (MM) | 100 | 120 | 100 | 120 |
| Max. Angle (Degree) | 90° | 90° | 90° | 90° | |
| Out Dimension | MM | 1670*1200*1200 | 1800*1500*1300 | 1770*1400*1300 | 1980*1550*1460 |
| Power | KW | 3*4kw | 3*5.5kw | 3*4kw | 3*5.5kw |
| Weight | KG | 1200kg | 1750kg | 1360kg | 2200kg |
| CNC Precision | Bending Precision | ±1° | ±1° | ±1° | ±1° |
| Repeat Bending Precision | ±0.3° | ±0.3° | ±0.3° | ±0.3° | |

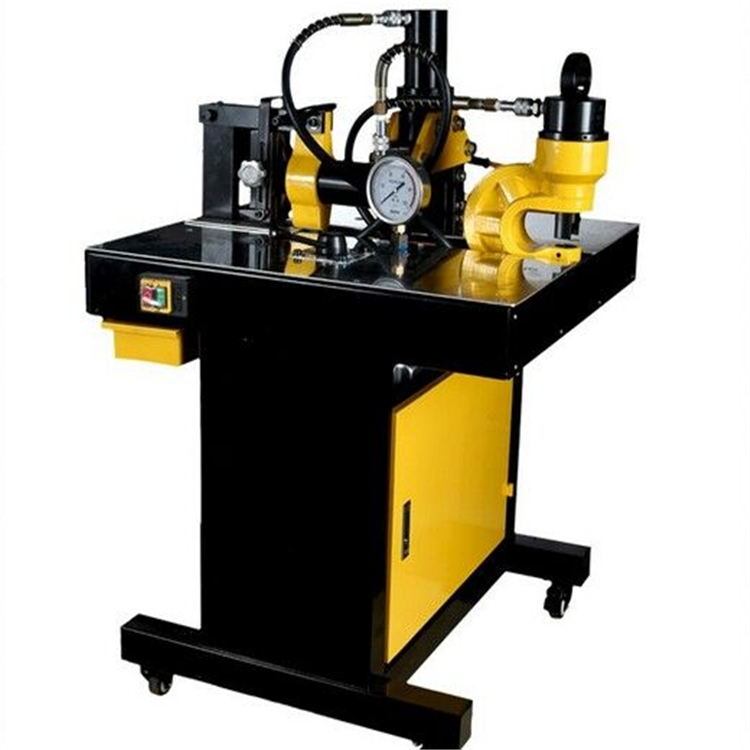

Product show
