Factory low price !! cnc busbar processing machine/hydraulic punching machine for copper busbar
Application :
This processor is suitable for making large electric cabinet ,power distribution cabinets ,switch
cabinets and power transmission and distribution construction engineering construction site use.
Feature :
This machine is with reference to foreign advanced products ,combined with domestic practical
situation , to provide the efficiency and guarantee of safety requirement and the design of form a
complete set of equipment .
Most suitable for making large electric cabinet and transmission and distribution construction
project fields use .High flexibility , small volume , big power , high production capacity and high
work efficiency .Low noise ,harmless processing . Finishing product is beautiful and won"t cause
pollution to the environment .
Parameter:
| Function | Item | MODEL | |||
| HW-303 | HW-503 | HW-303S | HW-503S | ||
| Punching | Max. Punching Force (KN) | 300 | 500 | 300 | 500 |
| Punching Diameter Range (MM) | Ø4.3-Ø25 | Ø4.3-Ø34 | Ø4.3-Ø25 | Ø4.3-Ø34 | |
| Max. Thickness (MM) | 12 | 16 | 12 | 16 | |
| Max. Width (MM) | 150 | 200 | 150 | 200 | |
| Shearing/Cutting | Max. Shearing Thickness (MM) | 12 | 16 | 12 | 16 |
| Max. Shearing Width (MM) | 150 | 200 | 150 | 200 | |
| Honrizental Bending | Max. Bending Force (KN) | 300 | 500 | 300 | 500 |
| Max. Thickness (MM) | 150 | 200 | 150 | 200 | |
| Max. Width (MM) | 12 | 16 | 12 | 16 | |
| Vertical Bending | Max. Width (MM) | 100 | 120 | 100 | 120 |
| Max. Angle (Degree) | 90° | 90° | 90° | 90° | |
| Out Dimension | MM | 1670*1200*1200 | 1800*1500*1300 | 1770*1400*1300 | 1980*1550*1460 |
| Power | KW | 3*4kw | 3*5.5kw | 3*4kw | 3*5.5kw |
| Weight | KG | 1200kg | 1750kg | 1360kg | 2200kg |
| CNC Precision | Bending Precision | ±1° | ±1° | ±1° | ±1° |
| Repeat Bending Precision | ±0.3° | ±0.3° | ±0.3° | ±0.3° | |

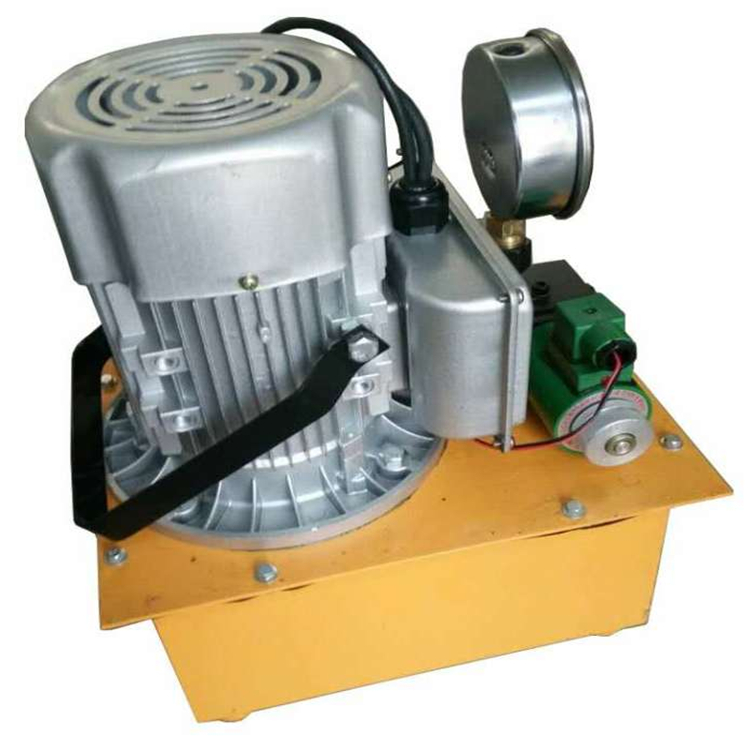

Product show

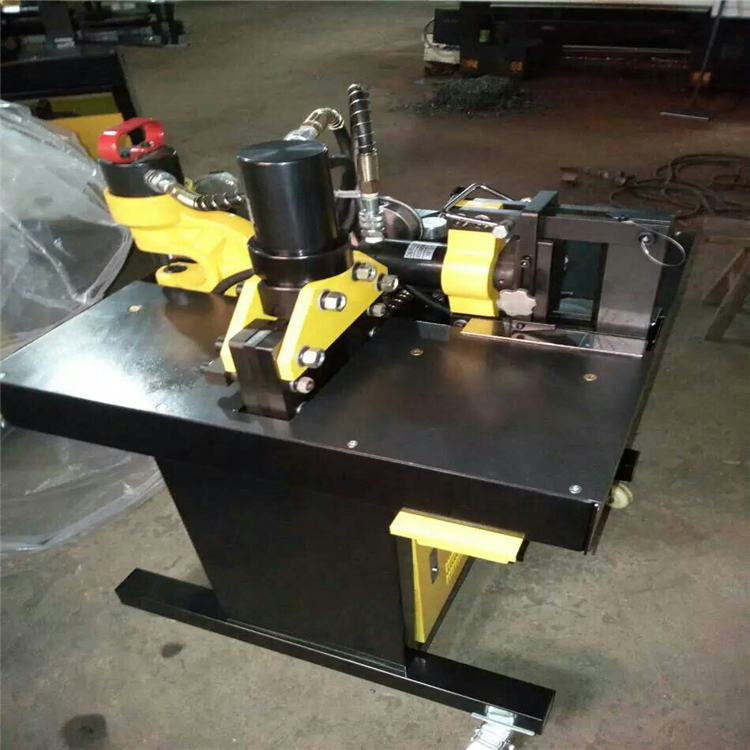

three in one hydraulic busbar processing machine for copper busbar
three in one hydraulic busbar processing machine for copper busbar
three in one hydraulic busbar processing machine for copper busbar
three in one hydraulic busbar processing machine for copper busbar
