HW High efficiency pin type pneumatic vibrator poker
Pneumatic vibrator poker features
1. Electrical or Engine Power Source
2. High strength rubber hose up to 16m, with many layers, such as meter net, canvas and steel belt for extreme high strength and long durability
3. 40-Chromium Alloy Head, hardness reached HRC52-55 degrees, long durability
4. Carbon Steel Body, hardness reached HRC52-55 degrees, long durability
5. Crank Shaft made of 40-Chromium Alloy, for extreme high strength
6. Flexible shaft made of spring steel, coiled without space for anti-breakage
Pneumatic vibrator poker parameter
Model |
| HW-XZ35 | HW-XZ 50 | HW-XZ 70 |
Vibrating spear | Diameter (mm) | 35 | 50 | 70 |
Vibrating Frequency(HZ) | 200 | 183 | 183 | |
Vibrating Amqlitude(mm) | 0.8 | 1 | 1.2 | |
Weight(KG) | 3 | 5 | 8 | |
Flexible axie&hose | Flexible axis Dia.(mm) | 10 | 13 | 13 |
Hose Dia.(mm) | 30 | 36 | 36 | |
Length(mm) | 4000 | 4000 | 4000 | |
Electromotr | Power(KW) | 1.1 | 1.5 | 2.2 |
Voltage(V) | 380 | 380 | 380 | |
Rotate speeed(rpm) | 2840 | 2840 | 2840 | |
Overall Dimensions | L×W×H(mm) | 320×180×280 | 320×180×280 | 320×180×280 |
Gross | (kg) | 16 | 17 | 19 |

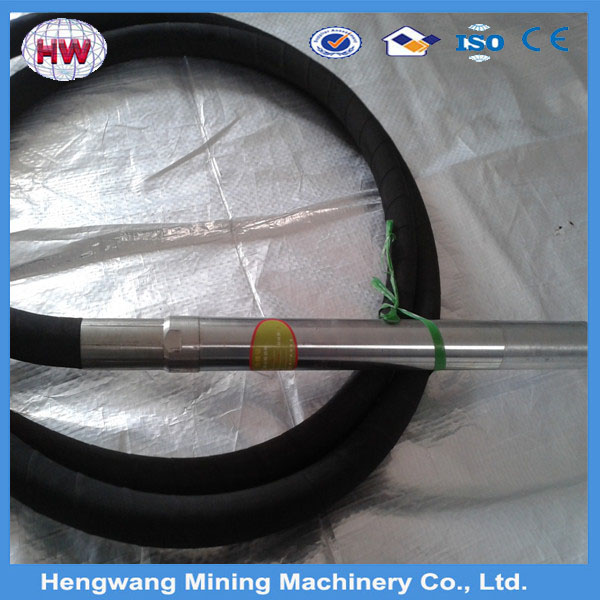

Pneumatic vibrator poker pictures
