Home > Products > HW-CK6 hydraulic piercing press/pipe Steel Punching Machine
HW-CK6 hydraulic piercing press/pipe Steel Punching Machine
Click on the image to view the original image
Product： views：2HW-CK6 hydraulic piercing press/pipe Steel Punching Machine
Branch： HW
Type： Hydraulic Diggers, split-unit hydraulic punch driver
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:33
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
HW
Dimension(L*W*H):
370x230x490mm
Model Number:
HW-CK
depth of throat:
95-115MM
Type:
Hydraulic Diggers, split-unit hydraulic punch driver
Name:
Trending hot products
Aperture:
3/8MM
max thickness of sheet:
11mm
Metal plate::
6-13MM
Weight:
8kg
After-sales Service Provided:
Overseas third-party support available
Warranty:
1 Year
Power(W):
0.8KW
Power Source:
Hydraulic
Condition:
New
Voltage:
380V/220V Optional
CNC or Not:
CNC
Certification:
CE ISO
Supply Ability
Supply Ability:
25000 Set/Sets per Week hydraulic piercing press/pipe Steel Punching Machine
Packaging & Delivery
Packaging Details
carton case, it can be adjusted
Port
qingdao/tianjing/ningbo/shanghai
Lead Time:
with 3 days
Video Description

Most popular hydraulic pressure hole punching machine

HigQuality Punching hole metal sheet machine Trending hot products

Product Description

High Quality Punching hole metal sheet machine Trending hot products

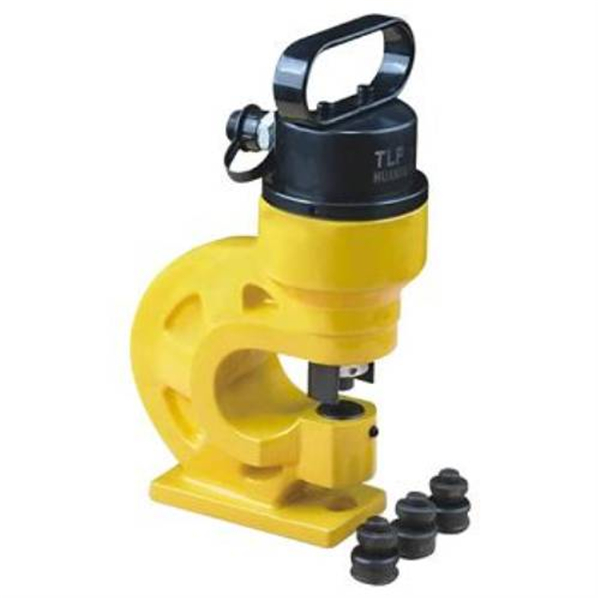

HW-CK is a remote control tool, works with an external hydraulic pump (Hand Foot or Electric pump). It is designed to punch round holes on Cu/Al Busbar. With 4 pairs standard punching dies (10.5 / 13.8 / 17 / 20.5mm), punching hole size is between diameter 10.5mm and diameter 20.5mm. Busbar thickness should below or equivalent to 12mm. With hydraulic power, 4 pairs sharp punching dies, easy fast and clean punching can be achieved.





Technical Parameter

Type
OutputThickness ironThickness copperThroat DepthWeightModel(mm)
HW-CK631T6mm10mm95mm19kg10.5,13.8,17.5,20.5
HW-CK1035T10mm12mm110mm38kg10.5,13.8,17.5,20.5
CH -CK1650T16mm20mm115mm50kg16,18,22,25



electric hydraulic pump  hole punching machine
