Home > Products > HW-YD 2000 Mobile hydraulic lift Lift/movable mini Lift

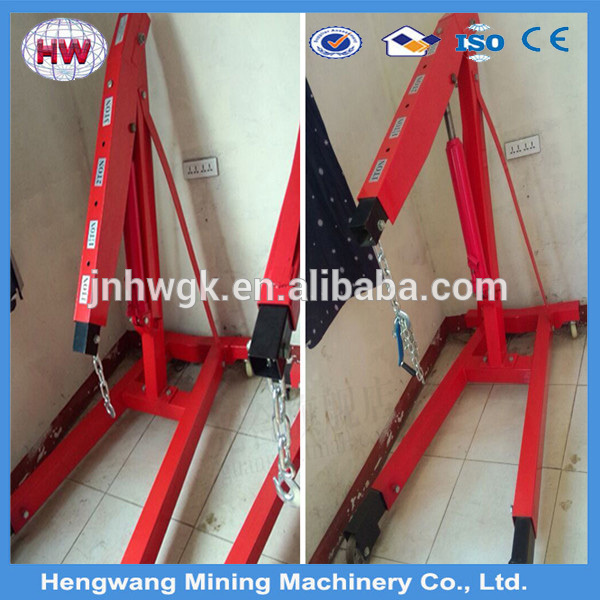

HW-YD 2000 Mobile hydraulic lift Lift/movable mini Lift
Click on the image to view the original image
Product： views：2HW-YD 2000 Mobile hydraulic lift Lift/movable mini Lift
Branch： HW
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:33
  Negotiated
Product Details
Overview
Quick Details
Max. Lifting Height:
2380mm
Feature:
Other
Condition:
New
Application:
Construction
Rated Loading Capacity:
2.5ton
Rated Lifting Moment:
800-150mm
Max. Lifting Load:
2ton
Span:
360degree
Place of Origin:
Shandong, China
Brand Name:
HW
Model Number:
HW-YD500
Certification:
CE/ISO9001
Max. Lifting Height::
1500mm
Capacity::
1000lbs
Name:
engine hoist crane
N.W.::
40kg
Lifting range::
800-150mm
G.W.::
41kg
Working range of boom::
0-2000mm
After-sales Service Provided:
Overseas third-party support available
Warranty:
1 Year
Supply Ability
Supply Ability:
1000 Set/Sets per Week
Packaging & Delivery
Packaging Details
Standards export packing
Port
qingdao shanghai tianjin
Lead Time:
3 days

engine hoist crane







model

HW-YD500  /   HW-YD
500A /   HW-YD
500B

HW-YD
1000  / HW-YD
1000A /   HW-YD
1000B

HW-YD
2000  /   HW-YD
2000A /   HW-YD
2000B

capacity(kg)

500

1000

2000

max.beam length(mm)

1095

1570

1595

min.beam length(mm)

895

1270

1295

max.hook height(mm)

2170

2500

2550

min.hook height(mm)

295

250

175

A leg before height(mm)

165

90

205

A size leg before(mm)

798/948

925/1079

994/1158

net weight(kg)/set

80

118

165

packing way

wood pallet

wood pallet

wood pallet

set(s)/pallet

1/1/ B:3

1/1/ B:3

1/1/1

pallet size

156*50*54cm/ B:150*52*99cm

174*50*65cm/ B:164*54*104cm

196*63*68cm/ B:187*67*43cm

gross weight(kg)/pallet

100/ B:263

142/ B:380

200/200
