Home > Products > China supplier small water well drilling machine/water borehole drilling machine

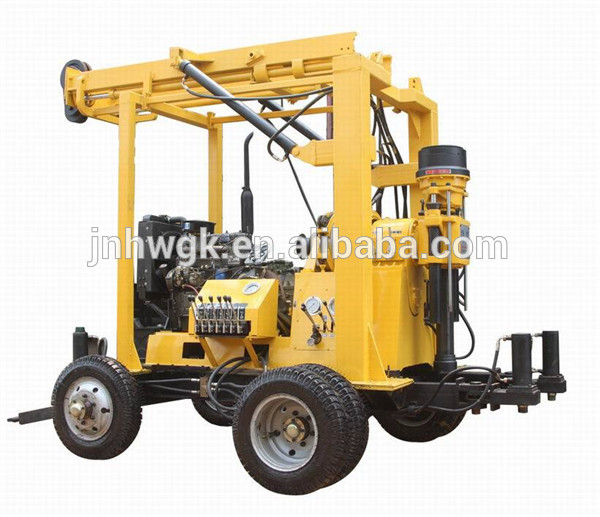

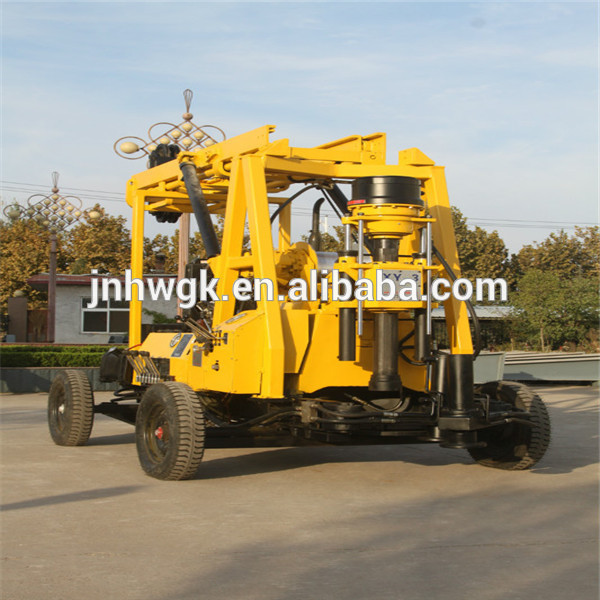

China supplier small water well drilling machine/water borehole drilling machine
Click on the image to view the original image
Product： views：2China supplier small water well drilling machine/water borehole drilling machine
Branch： HWGK
Type： Core Drilling Rig, small water well drilling machine
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:33
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
Type:
Core Drilling Rig, small water well drilling machine
Power Type:
Electric
Place of Origin:
Shandong, China
Brand Name:
HWGK
Model Number:
YXY-3
Usage:
Coal
Voltage:
380v
Power(W):
22KW
Dimension(L*W*H):
2500*900*1200mm
Weight:
1600KG
Certification:
ISO CE
Drill rod caliber::
50mm
driling depth::
100~600m
Drilling angle::
90-65
Maximum open hole caliber::
300mm
End hole caliber::
75mm
Usage::
Water Well
Power Type::
electric / diesel
Drilling diameter:
250~400mm
Warranty:
1year
After-sales Service Provided:
Overseas third-party support available
Supply Ability
Supply Ability:
100 Piece/Pieces per Month water drilling machine
Packaging & Delivery
Packaging Details
nude packing
Port
QINGDAO
Lead Time:
Within 3 days receiving payment
Product Description



Drilling depth

m

100

250

300

600

Drilling  DI

mm

300

200

150

75

End hole  DI

mm

75

Drilling rod

mm

Φ60

Drilling angle



90°-65°

Rotary Spindle

Spindle forward speed

r/min

30-1050

Spindle reverse speed

r/min

29-137

Spindle stroke

mm

560

Spindle lifting capacity

KN

60

Main Winch  ( drive hydraulic system)

Single line lifting speed

m/min

0-45

Hug floodgate belt width

mm

90

Tightrope diameter

mm

14

Hoist single line lifting capacity

KN

40

Roller diameter

mm

200

Mud pump

Horizontal Triplex BW-250 mud pump

Displacement

L/min

250

Work pressure

Mpa

7

Drilling rig Power

Diesel engine

Hp

4100#      50HP

Electric motor

KW

   Y180L-4      22KW









Drill workshop
