Home > Products > HWHZ-200Y Surface hydraulic rock core borehole drill machine

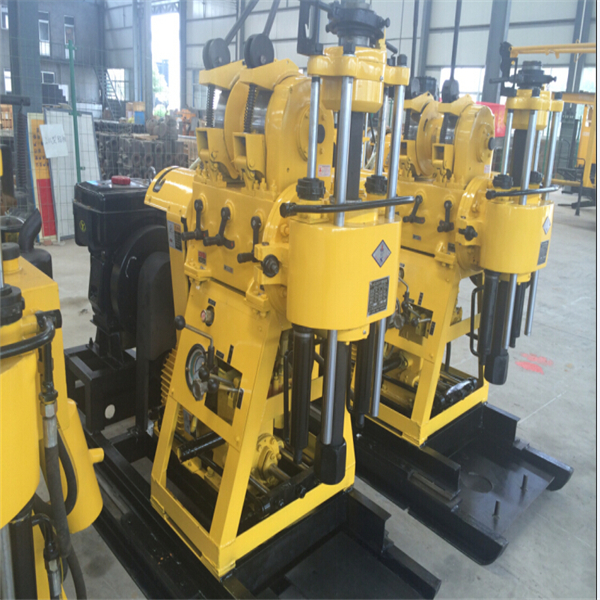

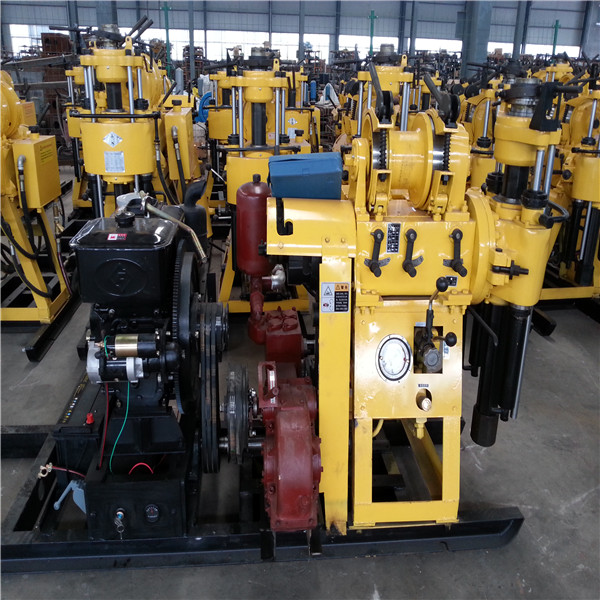

HWHZ-200Y Surface hydraulic rock core borehole drill machine

Click on the image to view the original image

Product：	views：2HWHZ-200Y Surface hydraulic rock core borehole drill machine
Branch：	HWGK
Type：	Core Drilling Rig, small water well drilling machine
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:33

Product Details

Overview

Quick Details

Condition:: New

Type:: Core Drilling Rig, small water well drilling machine

Power Type:: Electric

Place of Origin:: Shandong, China

Brand Name:: HWGK

Model Number:: HWHZ-200Y

Usage:: Coal

Voltage:: 380v

Power(W):: 59KW

Dimension(L*W*H):: 2500*900*1200mm

Weight:: 1600KG

Certification:: ISO CE

Drill rod caliber::: 50mm

driling depth::: 600m

Drilling angle::: 90-65

Maximum open hole caliber::: 300mm

End hole caliber::: 75mm

Usage::: Water Well

Power Type::: electric / diesel

After-sales Service Provided:: Overseas third-party support available

Warranty:: 1year

Supply Ability

Supply Ability:: 100 Piece/Pieces per Month water drilling machine

Packaging & Delivery

Packaging Details: nude packing

Port: QINGDAO

Lead Time:: Within 3 days receiving payment

small water well drilling machine

Drilling depth	m		100			250		300	600
Drilling DI	mm		300			200		150	75
Open hole DI	mm		300
End hole DI	mm		75
Drilling rod	mm		Φ60
Drilling angle			90°-65°
Rotary Spindle
Spindle forward speed				r/min			30-1050
Spindle reverse speed				r/min			29-137
Spindle stroke				mm			560
Spindle inner diameter				mm			96
Spindle lifting capacity				KN			60
Main Winch ( drive hydraulic system)
Single line lifting speed					m/min		0-45
Hug floodgate belt width					mm		90
Tightrope diameter					mm		14
Hoist single line lifting capacity					KN		40
Roller diameter					mm		200
Roller cubic measure					m		30
Gear Oil pump
Duplex gear oil pump CBF-F63/25
Front displacement,pressure							63mL/r 20Mpa
Behind displacement,pressure							25mL/r 20Mpa
Drilling rig Power
Diesel engine		Hp					R4105ZD 76HP
Electric motor		KW					Y180L-4 22KW


Drill workshop
