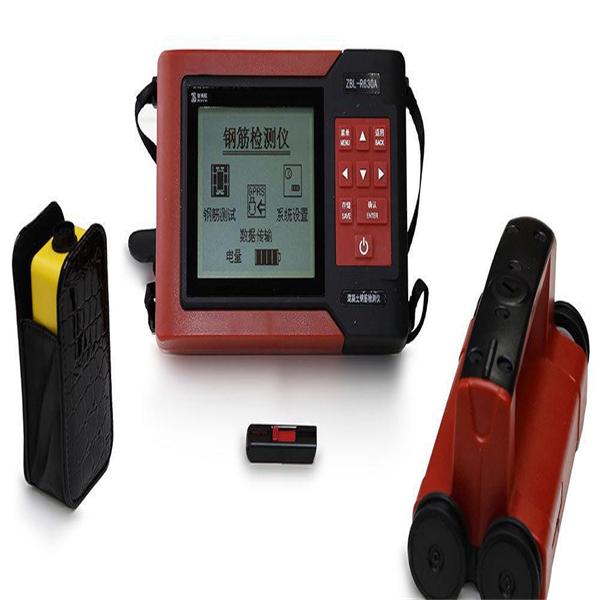

HW-R660 integrated concrete rebar scanner/concrete rebar locator
Concrete cover meter can be used in inspecting the construction quality of reinforced concrete works: testing diameter, location, and distribution of rebar as well as the thickness of protective layers. In addition, it is also designed to examine the location of magnetic and conductor in non-magnetic medium and non-conducting medium, such as inspecting the distribution of cables or water supply and hearting pipelines within wall.
Product Specification
1. Locate rebar quickly
2. Mark reinforcing bars automatically.
3. Detect the thickness of the protective layer automatically
4. Automatically detect ambient temperature and record test time.
5. Real-time display measuring value.
6. Unlimited grid scan and section scan mode.
7. Real-time data analysis
8. Professional Windows data processing software
Product Parameter
Number | Item | SPEC | |
1 | Bar diameter application range(mm) | Φ6 – Φ50 | |
2 | maximum value permissible error of Bar diameter | ≤±1 | |
3 | Protective layer thickness measuring range |
| |
The first measuring range (mm) | 6 - 90 | ||
The second measuring range (mm) | 7-180 | ||
4 | The maximum error of reinforced protective layer thickness test value |
| |
The first measuring range (mm) | The second measuring range (mm) |
| |
6 - 59 | 7 - 79 | ≤±1 | |
60 - 69 | 80 - 119 | ≤±2 | |
70 -90 | 120 - 180 | ≤±4 | |
5 | Work environment condition |
| |
Work temperature ℃ | -10 - +40 | ||
relative humidity RH | < 90% | ||
6 | power supply mode | Alkaline cell X 6 | |

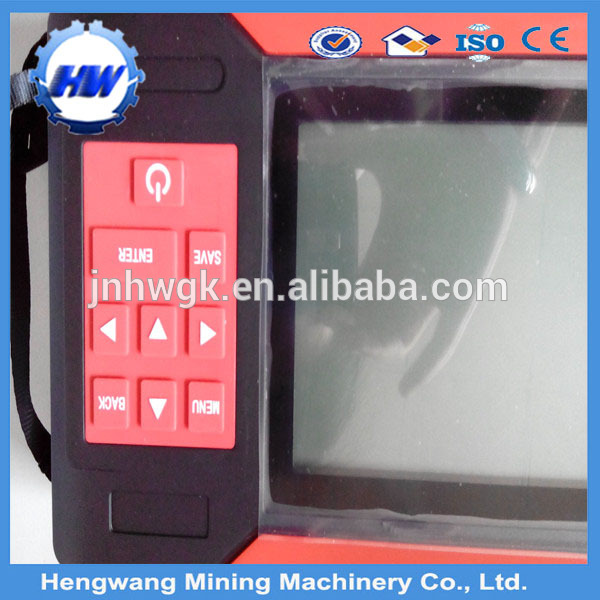

Product Show
