Home > Products > New development surface exploration petrol handheld drill rig /drilling machine price

New development surface exploration petrol handheld drill rig /drilling machine price

Click on the image to view the original image

Product：	views：2New development surface exploration petrol handheld drill rig /drilling machine price
Branch：	heng wang
Type：	Core Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:33

Product Details

Overview

Quick Details

Condition:: New

Type:: Core Drilling Rig

Power Type:: Gasoline

Place of Origin:: Shandong, China

Brand Name:: heng wang

Model Number:: HW-B30

Usage:: Coal

Voltage:: Gasoline Engine Driven

Power(W):: 5.8KW

Dimension(L*W*H):: 30.48*28.02*30.48cm(engine)

Weight:: 25KGS

Certification:: ISO/CE

Application:: mineral,oil and gas exploration

rock core drilling diameter:: 32-108mm

Product name:: portable drilling equipment

Water consumption:: about 0.3L / min

Oil consumption:: 0.39L/hr

drilling core diameter:: 32-108mm

Drilling rig power:: 7.75HP

Maximum drilling depth:: 30m

Gasoline/Petrol engine:: KOHLER engine

Rated Power:: 5.8KW

After-sales Service Provided:: Overseas third-party support available

Warranty:: 3 Year

Supply Ability

Supply Ability:: 1000 Set/Sets per Month

Packaging & Delivery

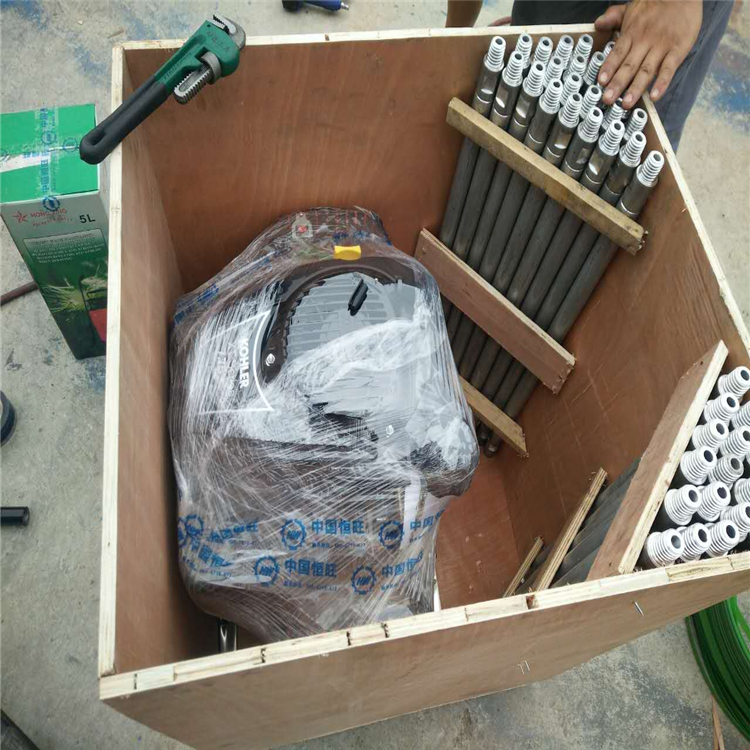

Packaging Details: wooden case

Port: shanghai qingdao dalian shenzhen ningbo

Lead Time:: within 7 daysafterreceiveyourfull payment

Product Description

1.The portable drilling machine is designed for mineral,oil and gas exploration, it is tailored for geological research and prospectors

2.we have decades of experience and accumulation in dozens of countries and regions in the world of field validation, we constantly improve and upgrade the quality of our products and we believe that the equipment will be helpful for your work

3. The engine of portable drilling machine is original Honda engine which has one of the best quality and long life service

Product parameter

Model: HW-B30

Drilling diameter : φ32-108mm

Drilling depth :30m

Adaptation Geological:soil, loose cover, all kinds of rock

Consumption: about 0.3L / min

Drill diameter : φ32mm

Drill length :750mm (with joints)

Drill pipe material: titanium

Drill pipe weight:about 1.1kg

Gasoline brand : KOHLER

Gasoline models: XT Series 775

Gasoline engine power :7.75HP

Rated speed : 2800rpm

Machine weight :about 25kg

Drilling work efficiency for Different rock stratum

Silicalite 69mm/min

Slate 119mm/min

Basalt 127mm/min

Sandstone 130mm/min

Dolomite 226mm/min

Limestone 241mm/min

Product Photos

Factory and Team

Certifications

Customer Visit
