Home > Products > Automatic stirrup bar star straightening and bendering machine.

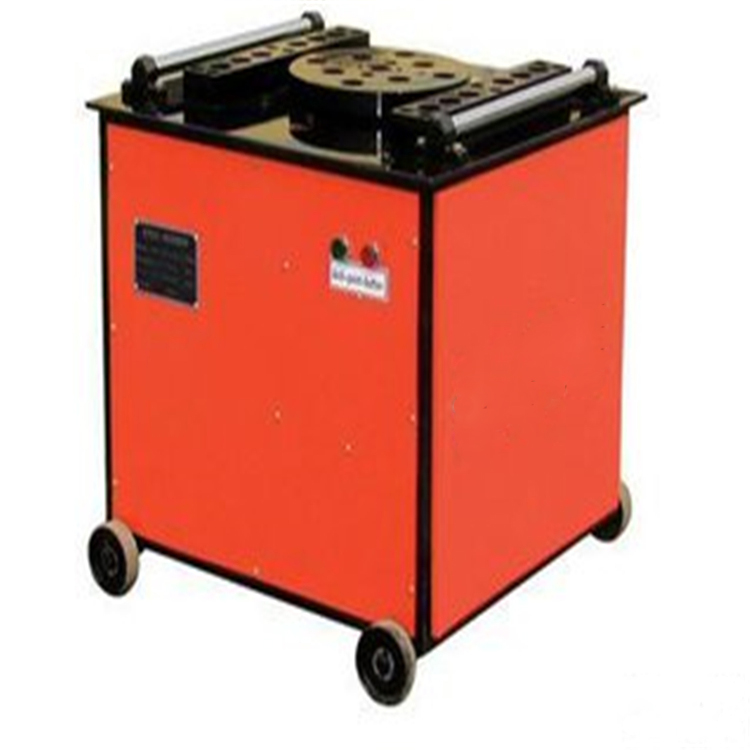

Automatic stirrup bar star straightening and bendering machine.

Click on the image to view the original image

Product：	views：2Automatic stirrup bar star straightening and bendering machine.
Branch：	HW-WG
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:33

Product Details

Overview

Quick Details

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: HW-WG

Material / Metal Processed:: Stainless Steel

Automation:: Automatic

Extra Services:: Machining

Certification:: ISO 9001:2000

Disc Speed:: 15/18 rpm/min

Weight:: 280KG

Product name:: steel stirrup bender

Motro speed:: 1880r/min

Motor Power:: 3KW

Disc diameter:: 350mm

Bending Speed:: 20-30pcs/min

After-sales Service Provided:: Overseas third-party support available

Model Number:: HW

Power:: CNC

Machine Type:: Pipe and Tube Bending Machine

Raw Material:: Steel Bar

Supply Ability

Supply Ability:: 1500 Set/Sets per Month stirrup bender

Packaging & Delivery

Packaging Details: regular packaging

Port: qingdao/dalian/shenzhen

Lead Time:: with 3 days

Automatic stirrup bar bendering machine

Product Description

1.It"s small in size, light in weight, reliable in quality and accurate angle, easy to move.

2. Automatic working, just slip a swith button, angle will be processed.

3. New time control function reduce the impact caused by inertia to extend the lifetime of the gears.

4.Manual & automatic buttons integrated together, high affregation.

5. Large weight gear and high quality buttons and other electrical parts

Product Parameter

Model	HW-WG21	HW-WG28	HW-WG21
Bending range	round bar:6-40reinforced bar:6-32	round bar:6-40 reinforced bar:6-32	round bar:6-50 reinforced bar:6-50
Working mode	Automatic	digital pannel with coder	Automatic or digital
Disc Speed	15 rpm/min	15 rpm/min	18 rpm/min
Disc diameter	350mm	350mm	400mm
Bending Speed	20-30pcs/min	20-30pcs/min	20-30pcs/min
Motor Power	3KW	3KW	4KW with brake
Input voltage	220VAC 380VAC 450VAC or customized
Motro speed	1440r/min
Driving mode	Worm gear	Gear	Worm gear
Weight	280KGS	305KGS	450KGS

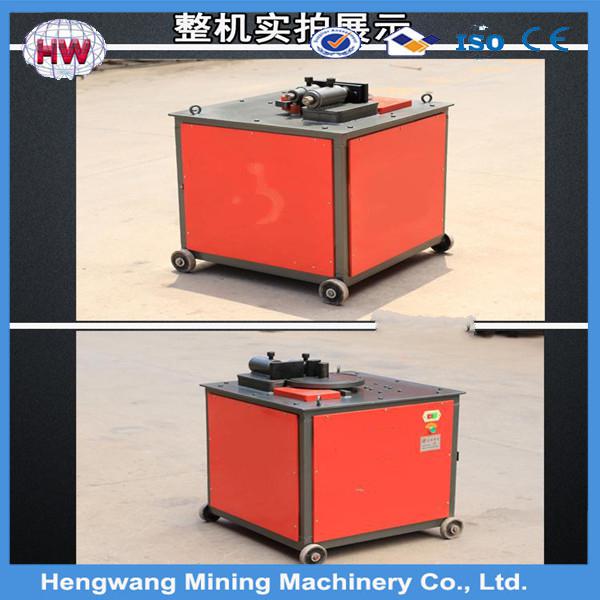

Product show

Product details

Structure detail

Work performance

Company cooperation
