Home > Products > Concrete Finishing Tools - Trowels, Floats, Edgers, and Groovers

Concrete Finishing Tools - Trowels, Floats, Edgers, and Groovers

Click on the image to view the original image

Product：	views：2Concrete Finishing Tools - Trowels, Floats, Edgers, and Groovers
Branch：	WPT
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:33

Product Details

Overview

Quick Details

Power Source:: Gasoline

Power(W):: 17.9 kw/24HP

Dimension(L*W*H):: 1920*910*980mm

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: WPT

Model Number:: HW

Voltage:: 220V 380V

Weight:: 53-120KG

Certification:: ISO/CE

work dia(MM):: 600

Rotary speed(RPM):: 60-140

Name:: power trowel machine

package size:: 90*90*68

usage:: road construction

Working speed:: 70-140rpm

Pitch range:: 0-15°

Engine Power:: 5.0-5.5

Blade adjustment:: 0-15mm

Color:: Client Requirment

After-sales Service Provided:: Overseas third-party support available

Warranty:: 3years

Supply Ability

Supply Ability:: 1200 Set/Sets per Week Concrete Finishing Tools - Trowels, Floats, Edgers, and Groovers

Packaging & Delivery

Packaging Details: regular packaging

Port: qingdao/dalian/shenzhen/ningbo

Lead Time:: Shipped in 3 days after payment

Concrete Finishing Tools - Trowels, Floats, Edgers, and Groovers

Product Specifications

1.Good quality blades are convenient for ground working ,which improves the build class more.

2.It adopts 4-stroke type engine to improve the equipment reliability.

3.Humanelydesigned blade and star-shaped blade angle regulating degree is more comfortably used

4.Improve the working efficiency ,10 times higher than before.

5.Height adjustable handle, assures operator comfortable and easy control.

6.Centrifugal safety switch shuts the engine down in the event of the operator loosing control of the unit.

7.Screw control ensures precise blade adjustment.

8.Lifting hook is available as optional.

9.Over-built gearbox assure long service life.

Product Parameter

Model	WPT-900A	WPT-600	WPT-760	WPT-900	WPT-1000	WPT-1200
Weight (kg)	89	53	76	70	83	120
Dimension (mm)	L1920 X W910 X H980	L1460 X W660 X H980	L1610 X W760 X H830	L1920 X W910 X H980	L1820 X W945 X H980	L2080 X W1250 X H1020
Working diameter	850mm	660 mm	760 mm	850 mm	915 mm	1170 mm
Speed (rpm)	110	145	70 - 140	70 - 140	70 - 125	70 - 125
Motor/ Engine	380v/50hz/3p	Air-cooled, 4-cycle, Gasoline
Type		Honda GX160 / Robin EX17				Honda GX270 /Subaru EX27
Max.output kw(hp)	2.0	4.0 (5.5) / 4.2 (5.7)				7.0 (9.0) / 6.6 (9.0)
Max. speed		3600 rpm
Fuel tank		3.6 liter				6.1 liter

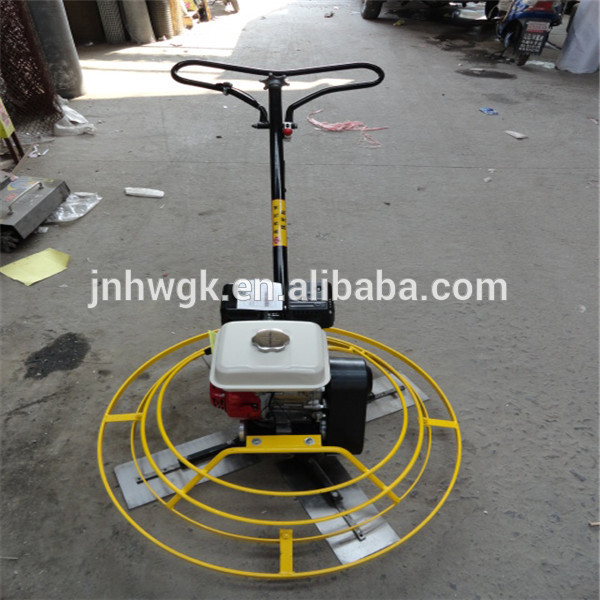

Product Show

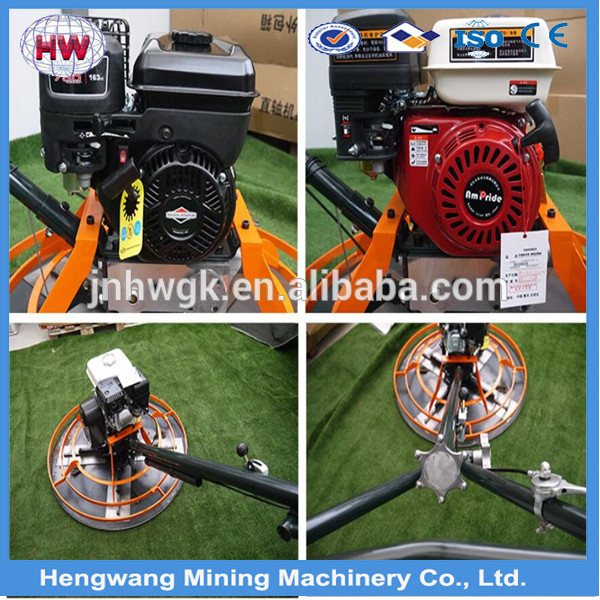

blade show

Company cooperation
