Dth Hammer Drilling Rig
Click on the image to view the original image
Product: views:5Dth Hammer Drilling Rig
Branch: HWGK
Type: Core Drilling Rig
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 20:33
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
Type:
Core Drilling Rig
Power Type:
Electric
Place of Origin:
Shandong, China
Brand Name:
HWGK
Model Number:
KQZ
Usage:
Coal
Voltage:
380V
Power(W):
5.5kw
Dimension(L*W*H):
2.75*0.95*1.6m
Weight:
910KG
Certification:
ISO9001
Model:
down the hole drill
Drilling depth:
100m
Technical guidance:
long time
Open hole DI:
300mm
End holeDI:
75mm
Drilling rod:
60mm
Spindle forward speed:
1050r/min
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
2000 Set/Sets per Year down the hole drill
Packaging & Delivery
Packaging Details
carton
Port
qingdao
Lead Time:
seven wordays

Down-the-hole drill



Drilling depth

m

100

250

300

600

Drilling  DI

mm

300

200

150

75

Open hole DI

mm

300

End hole  DI

mm

75

Drilling rod

mm

Φ60

Drilling angle



90°-65°

Rotary Spindle

Spindle forward speed

r/min

30-1050

Spindle reverse speed

r/min

29-137

Spindle stroke

mm

560

Spindle inner diameter

mm

96

Spindle lifting capacity

KN

60

Main Winch  ( drive hydraulic system)

Single line lifting speed

m/min

0-45

Hug floodgate belt width

mm

90

Tightrope diameter

mm

14

Hoist single line lifting capacity

KN

40

Roller diameter

mm

200

Roller cubic measure

m

30

Gear Oil pump

Duplex gear oil pump           CBF-F63/25

Front displacement,pressure



63mL/r    20Mpa

Behind displacement,pressure



 25mL/r    20Mpa

Drilling rig Power

Diesel engine

Hp

   R4105ZD    50HP

Electric motor

KW

   Y180L-4      37KW

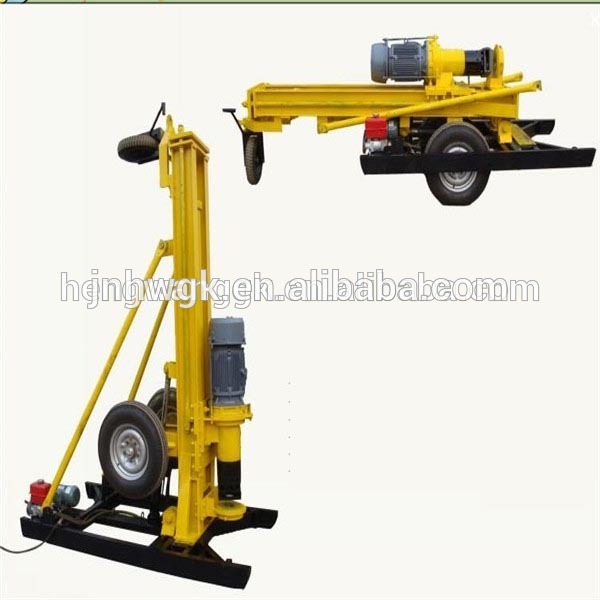

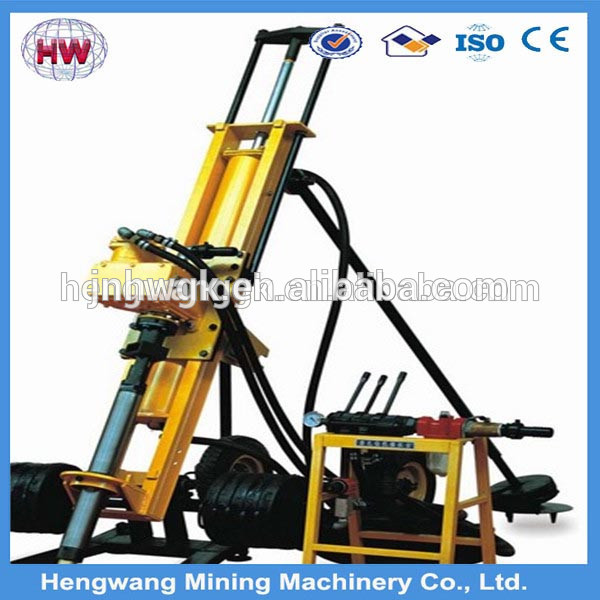

Figure photos
