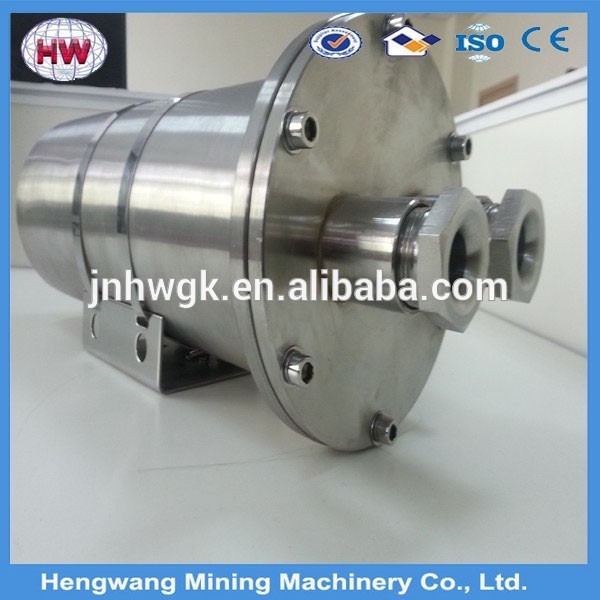

stainless steel anti explosion camera housing IP68
1 | Atmospheric Pressure | 80KPa~106Kpa |
2 | Ambient Temperature | –25°c~+60°c |
3 | Relative Humidity | No more than 95% (+25°c) |
4 | Ex-proof Marking | ExdⅡCT6/DIP A21 TA, T6 |
5 | Enclosure Protection | IP68 |
6 | Voltage Input | 220VAC, 50Hz (optional) |
7 | Outer Dimension | 312.5(L) mm× 140(W) mm×145(H) mm |
8 | Largest installation | 220(L) mm ×65(W) mm× 65(H) mm |
9 | Window | Φ58mm |
10 | Net weight | 4.5Kg |
11 | Material | SS304 (chemical factories, outdoors and so on) SS316L(sea environment, oil tankers and so on) |
12 | Auto-heated | while it is <1°c(Optional) |
13 | Installation | All mounting (recommending ZAZ100B bracket), or fixed at pan/tilt. |
