Jining Hengwang Mining Machinery Co., Ltd.

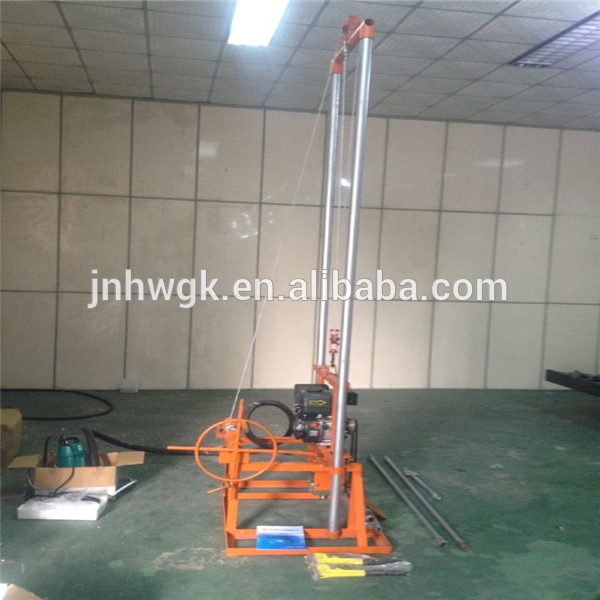

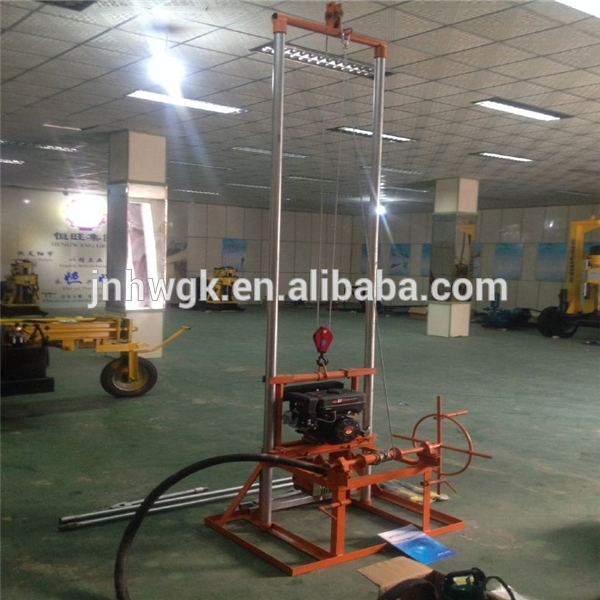

This machine mainly used for geothermal drilling, farm irrigation , house yard, gardens and water well drilling, drilling diameter is 70-300mm, and drilling depth is 80-100m. It also can be used in small building piling, like farmhouse or factory and so on, the drilling diameter can reach 300mm and depth less than 10m.


Features:

1. Light weight. The main engine is only weighted 150kg ;
2. Unique design and simple drilling structure;
3. Easy to transport and can learn how to handle the machine in short time;
4. Can drill through hard stratum with diamond bit, unless thick rock layer ;
5. Can drill deep. Equipped with raser, reduce the labor intensity ;
6. High efficiency, the drilling speed can reach 20meters depth per hour, in plain area ;
7. Assure easily operation and long life span to save more labors and money for you;
8.The packing of the machine is wood box, the CBM is about 2.0m³, the total weight (complete set) is about 850KG .

1: What kind of drilling work can it do?

Mainly applies to drill wells for farm irrigation wells, garden irrigation wells, drilling water wells, geothermal wells.

2: What are the max. depth and the max. diameter of holes allowed for this drill rig?

Max 300mm diameter or Max 100m depth are available. Here we sincerely inform that the final depth and diameter will subject to your special local working strata and drilling experience.

3: What kind of working strata is OK ?

Soil, sandy, clay, sediment, soft rocks, etc. Certainly, the special strata need different drilling bits. Please note that this model is not designed for drilling hard rocks

4: What is your advantage over this drill?

Economical and worthy to owned by any family.Practical and efficient by drilling speed of 20m/h; Easy operate and maintain by only two workers.
