Home > Products > Gasoline Asphalt Road Milling Machine/Mini Scarifying Machine

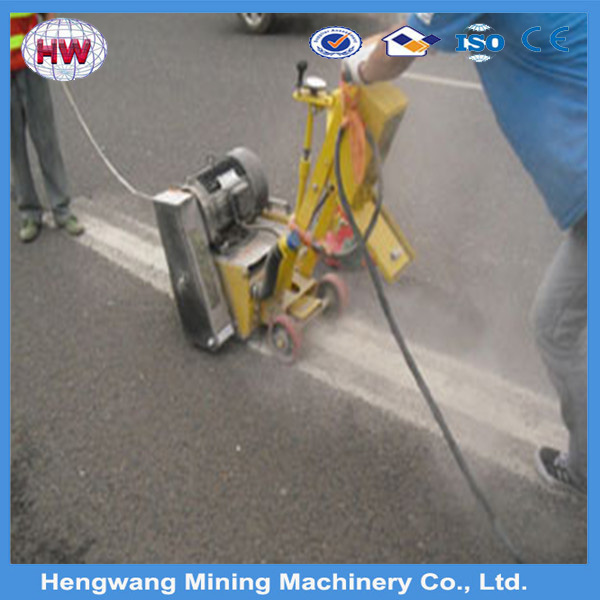

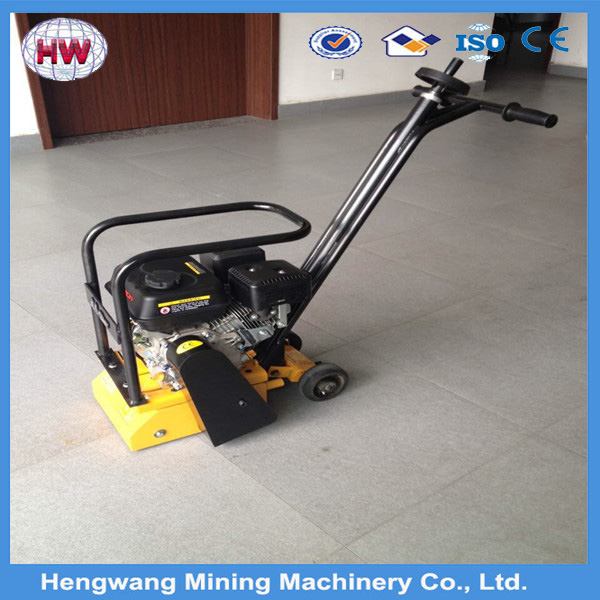

Gasoline Asphalt Road Milling Machine/Mini Scarifying Machine
Click on the image to view the original image
Product： views：2Gasoline Asphalt Road Milling Machine/Mini Scarifying Machine
Branch： HW
Type： Vertical
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:34
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HW
Model Number:
HW-XB11D
Type:
Vertical
CNC or Not:
Normal
Voltage:
220V
Dimension(L*W*H):
1330x650x1050mm
Certification:
ISO
Voltage::
220V
Engine::
electric/Gasoline engine
Name::
Gasoline Asphalt Road Milling Machine/Mini Scarifying Machine
Cutting head Quantity::
84Pieces
Power:::
13.0hp/3600rpm
Fuel tank volume::
6.5L
Lubricant L:::
1.1L
Fuel consumption::
313g/kWh
Packing size:::
1330x650x1050mm
Delivery::
within 3 days
Weight:
about 200-300KG
After-sales Service Provided:
No overseas service provided
Warranty:
2 Years
Power(W):
7.5kW
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case
Port
qingdao
Lead Time:
within 3 days

Gasoline Asphalt Road Milling Machine/Mini Scarifying Machine

Type

HW-XB11

HW-XB11D

HW-XB12

HW-XB12D

Working



Milling width

220mm

255mm

Milling depth

5mm

3mm

Arbor quantity

6Pieces

Cutting head Quantity

84Pieces

90Pieces

Engine



Model

HONDA GX390

Y132S-4

HONDA GX390

Y132S-4

Type

Gasoline engine,air cooled, 4stroke, OHV, single cylinder

   Three-phase asynchronous motor, 380V,50Hz

Gasoline engine,air cooled, 4stroke, OHV, single cylinder

   Three-phase asynchronous motor, 380V,50Hz

Power

13.0hp/3600rpm

7.5kW

13.0hp/3600rpm

7.5kW

Fuel tank volume

6.5L

Non

6.5L

Non

Lubricant L

1.1L

Non

1.1L

Non

Fuel consumption

313g/kWh

Non

313g/kWh

Non

Dimension



Packing size

1330x650x1050mm

1330x760x1250mm

Total length

1610mm

1520mm

Total width

530mm

700mm

Total height

940mm

1140mm

Weight



Working weight

220kg

230kg

290kg

300kg

MAX.working weight

225kg

235kg

340kg

350kg
