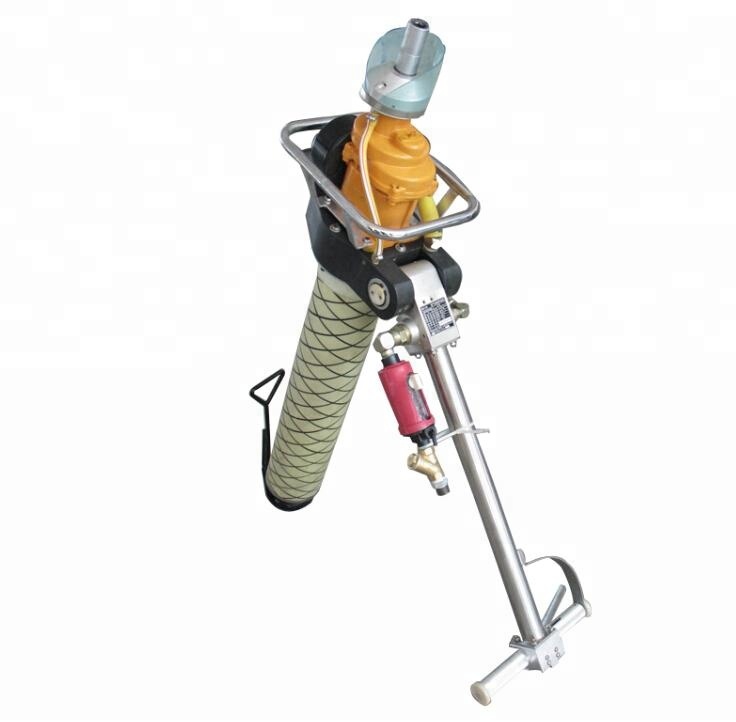

MQT mining coal jumbolter Specification:
Appliance:
1. pneumatic roof bolter drill is widely used in rock hardness coefficient of more than 10 f, especially
suitable for bolt-anchor cable operations.
2. It can drill roof bolt hole, and drilling anchor hole, still can stir and installation of medicine (anchor,
resin anchor cable without other equipment.
3. Pneumatic roof bolter can realize the anchor nut a installation tightened early to anchor of
prestressing force requirements.
4. MQT pneumatic jumbolter series pneumatic jumbolter is mainly used to drill in coal lane, rock
lane.Usually the hardness of rock is less than or equal f10.
Parameters:
name of parameter | UNIT | MQT110 | MQT120 | MQT130 |
Working air pressure | Mpa | 0.4-0.63 | 0.4-0.63 | 0.4-0.63 |
Rated air pressure | Mpa | 0.5 | 0.5 | 0.5 |
Rated torque | n.m | 110 | 120 | 130 |
Rated rotate speed | r/min | ≥230 | ≥200 | ≥180 |
max out put power | KW | ≥2.4 | ≥2.6 | ≥3.0 |
max load torque | n.m | ≥180 | ≥220 | ≥260 |
Air consumption | n.m | ≥170 | ≥180 | ≥230 |
Air consumption | m³/min | ≤3.8 | ≤4.2 | ≤4.4 |
max speed | r/min | 620 | 500 | 460 |
weight | Kg | 48 | 52 | 54 |

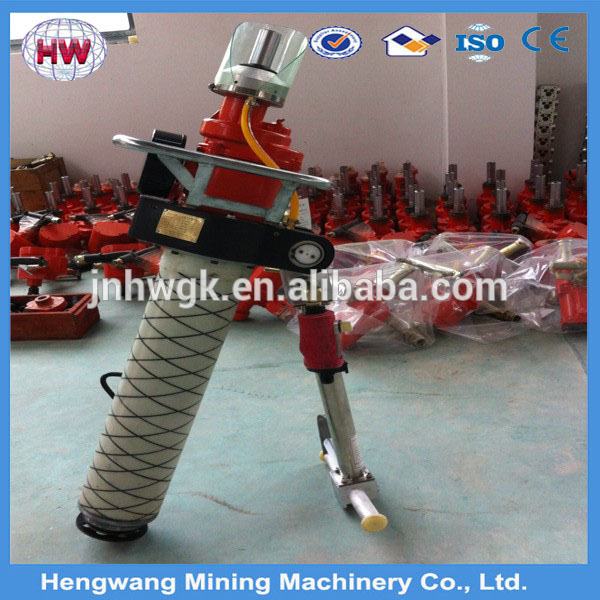

Photos for MQT series of pneumatic roofbolter :
Features of the products:
1.The rock drill maximizes adopting the engineering plastic, light and flexible.
2.The rock drill adopts high-power motor,more powerful.
3.The part of propulsion adopts ERP air cylinder, security and explosion-proof.
Company information:
Jining Heng Wang Mining Machinery company is located in Jining, the Kong Meng Township
and the canal charm city. Oriental holy city of Qufu is in the east, west near the Beijing-Hangzhou
Grand Canal,south near Weishan Lake,north near Yue Chun Mount Tai.
Our company is established in 2002, registration capatial is 10,800,000 RMB,more than 200
existing staffs.
