man portable light weight core sample drill rig

Click on the image to view the original image

Product：	views：2man portable light weight core sample drill rig
Branch：	heng wang
Type：	Core Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:34

Product Details

Overview

Quick Details

Condition:: New

Type:: Core Drilling Rig

Power Type:: Gasoline, Gasoline

Place of Origin:: Shandong, China

Brand Name:: heng wang

Model Number:: HW-B30

Usage:: Coal

Voltage:: Gasoline Engine Driven

Power(W):: 5.8 KW

Dimension(L*W*H):: 60*35*55CM

Weight:: 25KG

Certification:: ISO, ISO

the highest Drill speed:: 1780 rpm

Maximum torque:: 11 Nm

Name:: portable drilling rig

Drill rod length:: 600 mm

Advantage:: small volume, light weight

Drilling depth:: 30m

Drilling diameters:: 32-108mm

Part name:: Backpack core drill

After-sales Service Provided:: Overseas third-party support available

Warranty:: 1 years

Supply Ability

Supply Ability:: 10000 Set/Sets per Month man portable light weightcore sample drill rig

Packaging & Delivery

Packaging Details: wooden case

Port: qingdao/tianjing/shenzhen/dalian

Lead Time:: Shipped in 3 days after payment

Product Description

Products brief introduction

Backpack drill Revolutionary portable core drill!! The current record depth of penetration is 23 meters!! The most portable near-surface sampling core drill in the world!! This portable drill is designed particularly for mineral exploration, Oil exploration , geological research

Products parameters

Model: HW-B30

Drilling diameter : φ32-108mm

Drilling depth :30m

Adaptation Geological:soil, loose cover, all kinds of rock

Consumption: about 0.3L / min

Drill diameter : φ32mm

Drill length :750mm (with joints)

Drill pipe material: titanium

Drill pipe weight:about 1.1kg

Gasoline brand : KOHLER

Gasoline models: XT Series 775

Gasoline engine power :7.75HP

Rated speed : 2800rpm

Machine weight :about 25kg

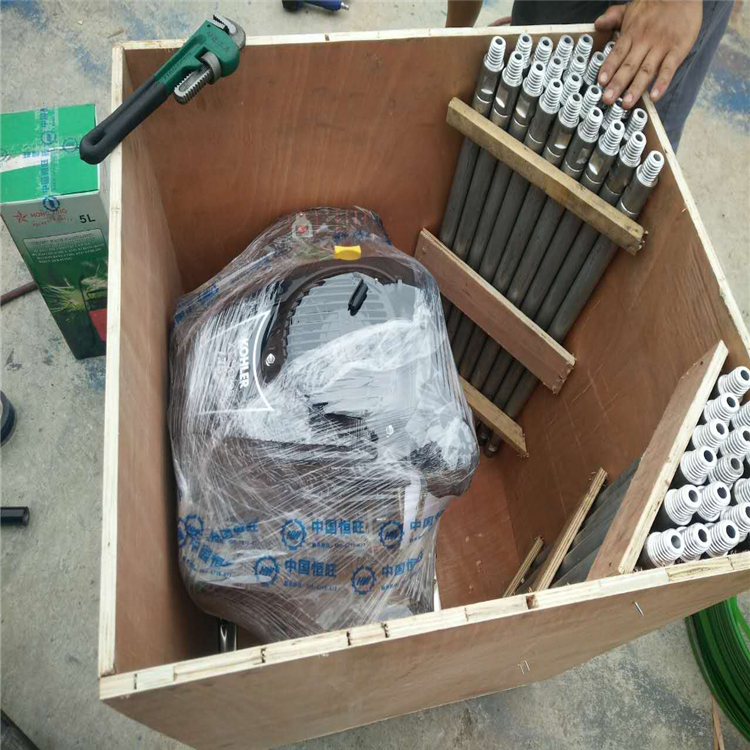

Packaging & Shipping

Mineral Exploration Bagpack Portable drill rig

Machinery accessories

Product photos
