Home > Products > HW2100 professional portable core drilling machine for rock blasting hole drilling

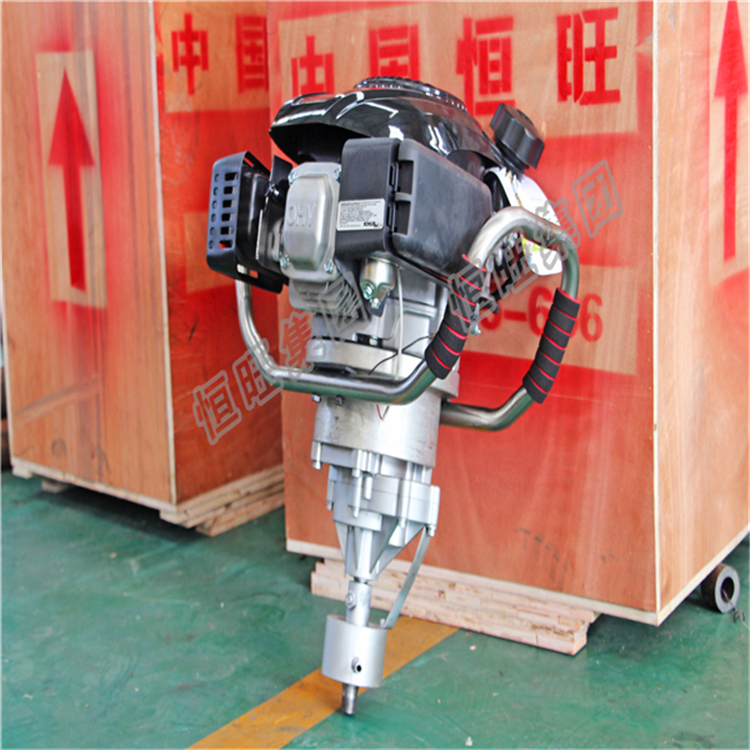

HW2100 professional portable core drilling machine for rock blasting hole drilling
Click on the image to view the original image
Product： views：2HW2100 professional portable core drilling machine for rock blasting hole drilling
Branch： HW
Type： Core Drilling Rig
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:34
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
Type:
Core Drilling Rig
Power Type:
Gasoline, Gasoline
Place of Origin:
Shandong, China
Brand Name:
HW
Model Number:
HW-B30
Usage:
Coal
Voltage:
Gasoline Engine Driven
Power(W):
5.8kw
Dimension(L*W*H):
60*35*55CM
Weight:
25KG
Certification:
ISO, ISO
the highest Drill speed:
1780 rpm
Maximum torque:
11 Nm
Name:
portable drilling rig
Drill rod length:
600 mm
Advantage:
small volume, light weight
Drilling depth:
30m
Drilling diameters:
32-108mm
Part name:
Backpack core drill
After-sales Service Provided:
Overseas third-party support available
Warranty:
1 years
Supply Ability
Supply Ability:
10000 Set/Sets per Month portable core drilling machine for rock blasting hole drilling
Packaging & Delivery
Packaging Details
wooden case
Port
qingdao/tianjing/shenzhen/dalian
Lead Time:
3 days
Video Description

 professional portable electric core drilling machine for rock blasting hole drilling



Product Description

 professional portable electric core drilling machine for rock blasting hole drilling





Products brief introduction



Backpack drill Revolutionary portable core drill!! The current record depth of penetration is 23 meters!! The most portable near-surface sampling core drill in the world!! This portable drill is designed particularly for mineral exploration, Oil exploration , geological research



Products parameters





Model: HW-B30

Drilling diameter : φ32-108mm

Drilling depth :30m

Adaptation Geological:soil, loose cover, all kinds of rock

Consumption: about 0.3L / min

Drill diameter : φ32mm

Drill length :750mm (with joints)

Drill pipe material: titanium

Drill pipe weight:about 1.1kg

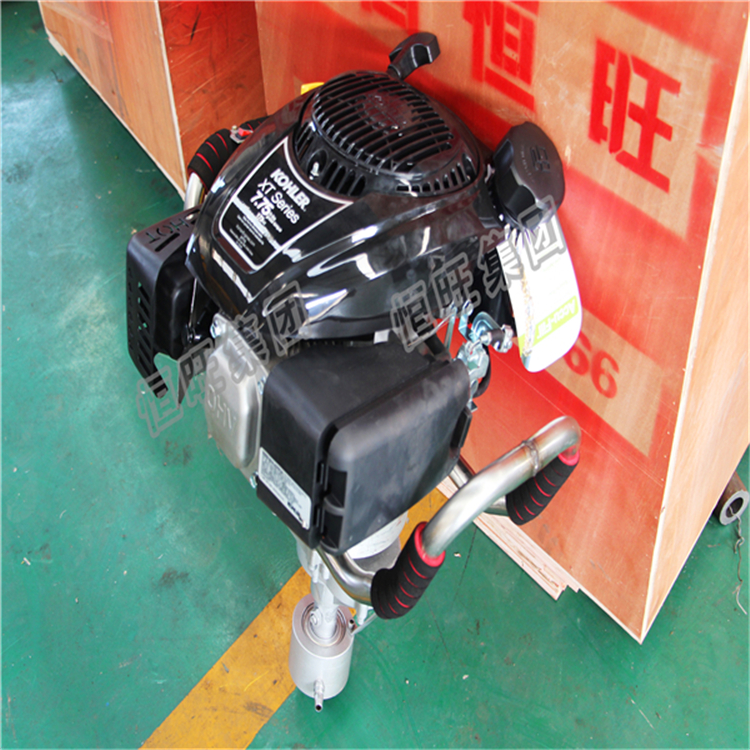

Gasoline brand : KOHLER

Gasoline models: XT Series 775

Gasoline engine power :7.75HP

Rated speed : 2800rpm

Machine weight :about 25kg
