Home > Products > Low price CNC punching hole/hydraulic punching machine/Plate Punching Machine
Low price CNC punching hole/hydraulic punching machine/Plate Punching Machine
Click on the image to view the original image
Product： views：2Low price CNC punching hole/hydraulic punching machine/Plate Punching Machine
Branch： HW
Type： Hydraulic Diggers, split-unit hydraulic punch driver
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:34
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
HW
Dimension(L*W*H):
370x230x490mm
Model Number:
HW-CK
depth of throat:
95-115MM
Type:
Hydraulic Diggers, split-unit hydraulic punch driver
Name:
Low price CNC punching hole
Aperture:
3/8MM
max thickness of sheet:
11mm
Metal plate::
6-13MM
Weight:
8kg
After-sales Service Provided:
Overseas third-party support available
Warranty:
1 Year
Power(W):
0.80KW
Power Source:
Hydraulic
Condition:
New
Voltage:
380V/220V Optional
CNC or Not:
CNC
Certification:
CE ISO
Supply Ability
Supply Ability:
25000 Set/Sets per Week Plate Punching Machine
Packaging & Delivery
Packaging Details
carton case, it can be adjusted
Port
qingdao/tianjing/ningbo/shanghai
Lead Time:
with 3 days
Video Description

Most popular hydraulic pressure hole punching machine



Low price CNC punching hole/hydraulic punching machine/Plate Punching Machine

Product Description

Low price CNC punching hole/hydraulic punching machine/Plate Punching Machine

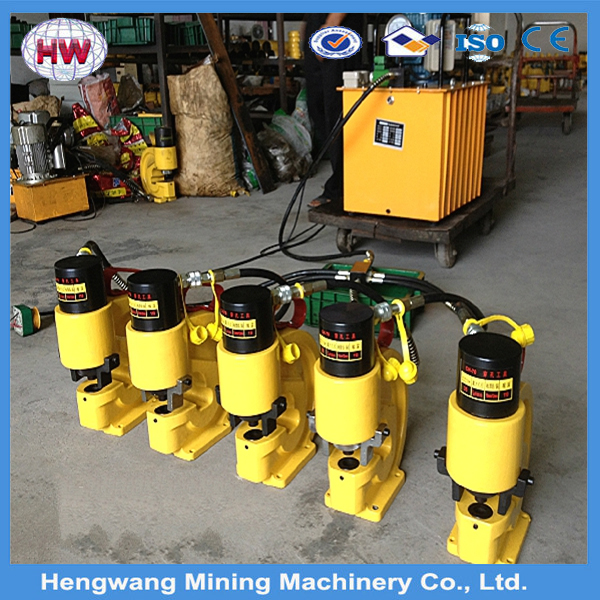

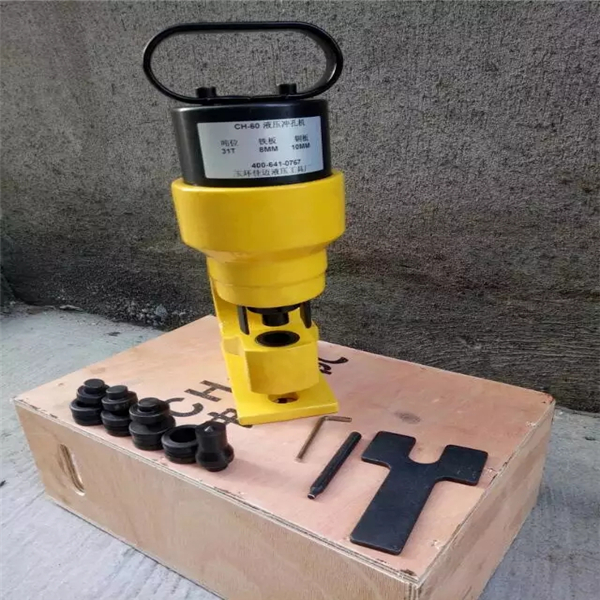

HW-CK is a remote control tool, works with an external hydraulic pump (Hand Foot or Electric pump). It is designed to punch round holes on Cu/Al Busbar. With 4 pairs standard punching dies (10.5 / 13.8 / 17 / 20.5mm), punching hole size is between diameter 10.5mm and diameter 20.5mm. Busbar thickness should below or equivalent to 12mm. With hydraulic power, 4 pairs sharp punching dies, easy fast and clean punching can be achieved.





Technical Parameter

Type
OutputThickness ironThickness copperThroat DepthWeightModel(mm)
HW-CK631T6mm10mm95mm19kg10.5,13.8,17.5,20.5
HW-CK1035T10mm12mm110mm38kg10.5,13.8,17.5,20.5
HW-CK1650T16mm20mm115mm50kg16,18,22,25



Low price CNC punching hole/hydraulic punching machine/Plate Punching Machine
