Most popular hydraulic pressure hole punching machine with low price
Metal Plate Hole Punching machine Trending hot products
Metal Plate Hole Punching machine Trending hot products

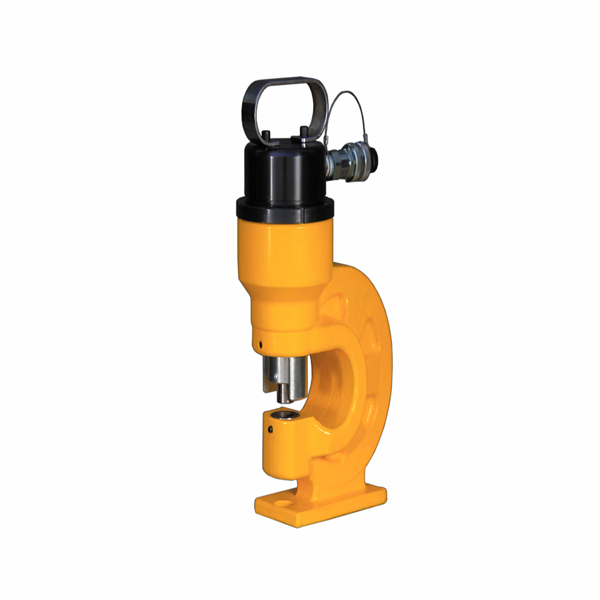

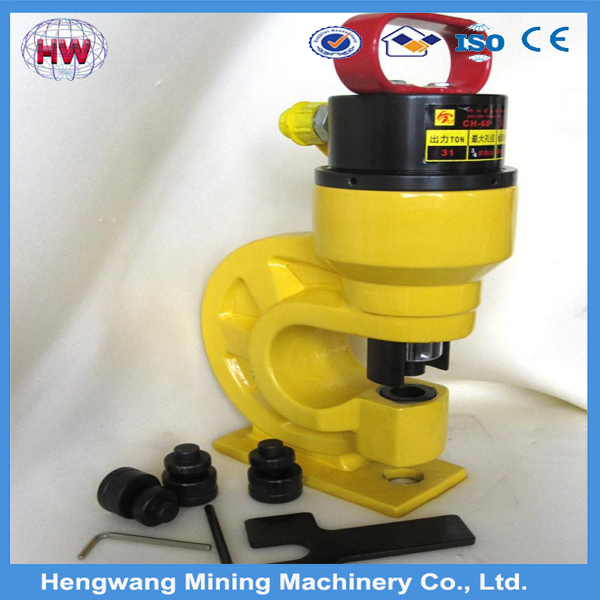

CH -60/70/80 is a remote control tool, works with an external hydraulic pump (Hand Foot or Electric pump). It is designed to punch round holes on Cu/Al Busbar. With 4 pairs standard punching dies (10.5 / 13.8 / 17 / 20.5mm), punching hole size is between diameter 10.5mm and diameter 20.5mm. Busbar thickness should below or equivalent to 12mm. With hydraulic power, 4 pairs sharp punching dies, easy fast and clean punching can be achieved.
Type | Output | Thickness iron | Thickness copper | Throat Depth | Weight | Model(mm) |
| CH-60 | 31T | 6mm | 10mm | 95mm | 19kg | 10.5,13.8,17.5,20.5 |
| HW-70 | 35T | 10mm | 12mm | 110mm | 38kg | 10.5,13.8,17.5,20.5 |
| CH -80 | 50T | 16mm | 20mm | 115mm | 50kg | 16,18,22,25 |
High Quality Perforated Many Hole Punching Machine
Products and details
Metal Plate Hole Punching machine Trending hot products
Company display
Jining Hengwang Mining Machinery Co.Ltd is one of the largest mining machinery manufacturing and sales company ,it is located in Jining City, Shandong Province, China(mainland).
Company qualification
Our products are popular both in China and abroad ,especially in Southeast Asia ,Africa and Middle East .
Our promise
Good quality
High technology
Excellent service
Reasonable price
You are welcome to contact us
Miss.Nina Rao
Overseas Marketing Manager
Tel.: 0086-537-2081658 mobile phone:008613668679003
Skype:649932389at qq.com Whatsapp:+8618353787695
E-mail:hw004at hengwanggk.com
Thank you for spending so much time reading, thank you for your time,.
