Most popular hydraulic pressure hole punching machine with low price
High Quality Perforated Many Hole Punching Machine for window and door
High Quality Perforated Many Hole Punching Machine for window and door

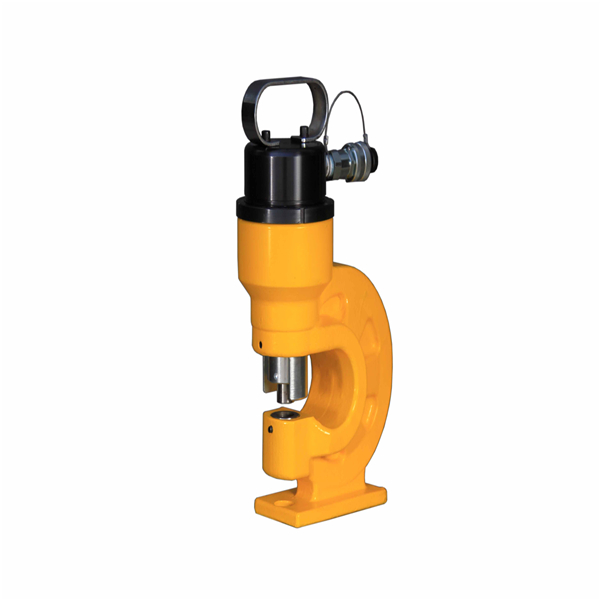

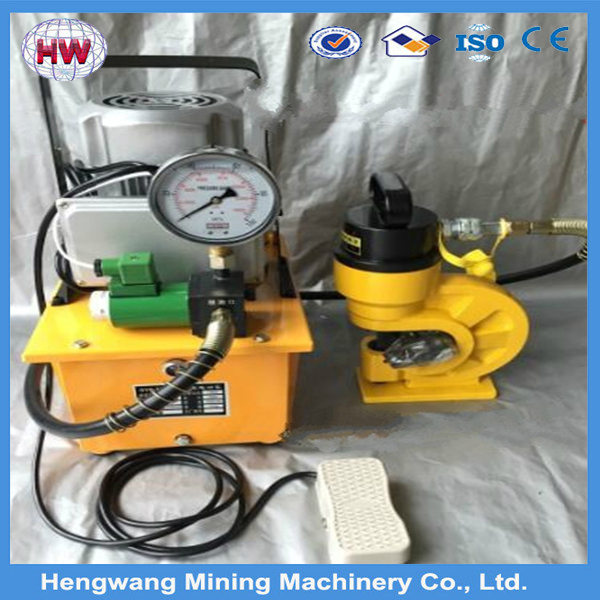

CH -60/70/80 is a remote control tool, works with an external hydraulic pump (Hand Foot or Electric pump). It is designed to punch round holes on Cu/Al Busbar. With 4 pairs standard punching dies (10.5 / 13.8 / 17 / 20.5mm), punching hole size is between diameter 10.5mm and diameter 20.5mm. Busbar thickness should below or equivalent to 12mm. With hydraulic power, 4 pairs sharp punching dies, easy fast and clean punching can be achieved.
Type | Output | Thickness iron | Thickness copper | Throat Depth | Weight | Model(mm) |
| CH-60 | 31T | 6mm | 10mm | 95mm | 19kg | 10.5,13.8,17.5,20.5 |
| HW-70 | 35T | 10mm | 12mm | 110mm | 38kg | 10.5,13.8,17.5,20.5 |
| CH -80 | 50T | 16mm | 20mm | 115mm | 50kg | 16,18,22,25 |
High Quality Perforated Many Hole Punching Machine
Products and details
High Quality Perforated Many Hole Punching Machine for window and door
Company display
Jining Hengwang Mining Machinery Co.Ltd is one of the largest mining machinery manufacturing and sales company ,it is located in Jining City, Shandong Province, China(mainland).
Company qualification
Our products are popular both in China and abroad ,especially in Southeast Asia ,Africa and Middle East .
Our promise
Good quality
High technology
Excellent service
Reasonable price
