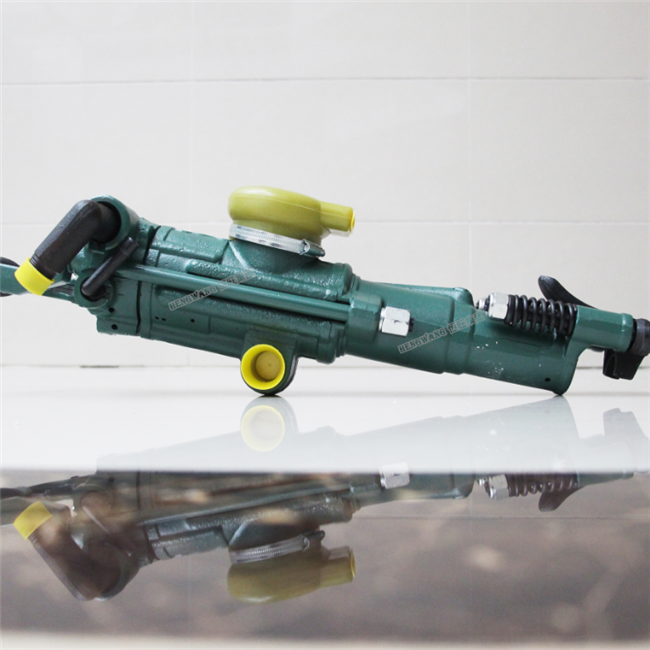

YT24 YT27 YT28 YT29A mining Pneumatic air leg hammer rock drill

Click on the image to view the original image

Product：	views：2YT24 YT27 YT28 YT29A mining Pneumatic air leg hammer rock drill
Branch：	HW
Type：	Rotary Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:34

Product Details

Overview

Quick Details

Condition:: New

Type:: Rotary Drilling Rig

Power Type:: pneumatic

Place of Origin:: Shandong, China

Brand Name:: HW

Usage:: Coal

Voltage:: 220V/380V

Power(W):: 7.5-11KW

Dimension(L*W*H):: 654*247*195mm

Weight:: 27KG

Certification:: CE/SGS/ATEX

Warranty:: 3years

Air consumption:: ≤81

Drilling depth:: 5m

Name:: air compressor hammer rock drill

Drilling diameter:: 34-42

Color:: Optional

bit shank standard:: 22*108

Working pressure:: 0.63

water pipe inner diameter:: 13 mm

cylinder bore:: 80 mm

Total length:: 661 mm

After-sales Service Provided:: Overseas third-party support available

Supply Ability

Supply Ability:: 100000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: YT24 YT27 YT28 YT29A mining Pneumatic air leg hammer rock drill

Port: qingdao/dalian/shanghai/guangzhou

Lead Time:

Quantity(Pieces)	1 - 10	>10
Est. Time(days)	3	To be negotiated

YT24 YT27 YT28 YT29A mining Pneumatic air leg hammer rock drill

Product Description

YT24 YT27 YT28 YT29A mining Pneumatic air leg hammer rock drill

Product Name:	Atlas Copco Brand YT28 Rock Drilling Equipment / Pneumatic Air Pick Hammer Drilling 5meters Deep
Description:	The series of pneumatic rock drills are mainly used in mine, railway, water irrigation works and quarrying works to drill holes. It"s suitable for wet or dry drilling in all kinds of rocks.


Drilling direction:	Hand held type for perpendicular; Air leg type for titling direction
Advantage:	Light weight & convenient operation, Low consumption & long life parts, High efficiency & fast drilling velcocity.
Advantage:
MOQ:	No requirement for testing and trial order
Spare parts	Integral drill rod, Plug hole drill rods, Tapered/threaded drill rods, Tapered/threaded drill bits (button bits, chisel bits, cross bits)
Spare parts

YT24 YT27 YT28 YT29A mining Pneumatic air leg hammer rock drill
Hand Held Rock Drill	Y6	Y8	Y20	Y24	Y26	YH24
Weight (kg)	6	8	18	24	26	24
Air consumption (L/s)	≤9.5	9.5	25	55	≤47	55
Drill hole diameter (mm)	20	20-24	34-42	34-42	34-42	34-42
Max.drilling depth (m)	0.5	0.5	3	5	5	5
Shank (mm)	15*88	15	22*108	22*108	22*108	22*108
Air Leg Rock Drill	YT19a	Y20ly	YT24	YT27	YT28	YT29a
Weight (kg)	18	18	24	26	26	26.5
Air consumption (L/s)	28	≤25	≤67	≤85	≤81	≤65
Drill hole diameter (mm)	34-42	34-42	34-42	34-42	34-42	34-45
Max.drilling depth (m)	3	3	5	5	5	5
Shank (mm)	22*108	22*108	22*108	22*108	22*108	22*108
