ZYX compressed oxygen self-rescuer
After isolation closed cycle respirator, wearing isolated human respiratory system, can prevent all kinds of poisonous and harmful gas enters the body
Used in coal mines or other toxic gas such as air pollution Used in coal mines or other toxic gas such as air pollution and oxygen suffocation hazard when workers used to escape
Technical parameters
Model | Oxygen supply way | Oxygen bottle volume (L) | Guard time min Medium intensity of labor | Rated pressure Mpa | Gas storage capacity (L) | Automatic exhaust pressure Pa | Size (mm×mm×mm) | opening pressure of safety valve Mpa | CO2 Absorbent should be charge g | weight kg | ||
Oxygen to ration L/min | Oxygen delivery by demand vaive L/min | Oxygen delivery by manual switch L/min | ||||||||||
ZYX15 | >1.2 | >60 | >60 | 0.2 | 15 | 20Mpa | >40 | 150-300Pa | 155×82×170 | ≤1Mpa | ≥255 | 1.3
|
ZYX30 | >1.2 | >60 | >60 | 0.3 | 30 | 20Mpa | >60 | 150-300Pa | 160×85×215 | ≤1Mpa | ≥350 | 1.7 |
ZYX45 | >1.2 | >60 | >60 | 0.38 | 45 | 20Mpa | >76 | 150-300Pa | 227×177×96 | ≤1Mpa | ≥530 | 2.1 |
ZYX60 | >1.2 | >60 | >60 | 0.45 | 60 | 20Mpa | >90 | 150-300Pa | 177×96×227 | ≤1Mpa | ≥540 | 2.4 |
ZYX120 | >1.2 | >60 | >60 | 1.0 | 120 | 20Mpa | >200 | 150-300Pa | 190×100×290 | ≤1Mpa | ≥560 | 4.3 |

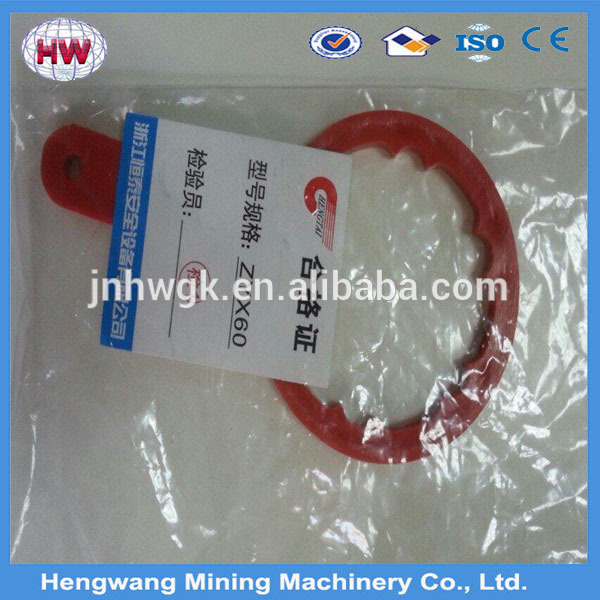

Figure photos
Qualification & certification:
Clients inspection factory:
History order:
