Electric Drill/Electric Rock Drill/Electric Hand Drill Machine
Click on the image to view the original image
Product: views:2Electric Drill/Electric Rock Drill/Electric Hand Drill Machine
Branch: HWGK
Type: Core Drilling Rig
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 20:34
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Place of Origin:
Shandong, China
Brand Name:
HWGK
Model Number:
KHYD
Usage:
Coal
Voltage:
380V
Power(W):
2KW
Dimension(L*W*H):
950x460x430mm
Weight:
40KG
Certification:
CE
Model:
electric rock rotary drill
speed:
2814 r/min
Packaging Detail:
wooden box
After-sales Service Provided:
Overseas service center available
Warranty:
one year
Supply Ability
Supply Ability:
2000 Set/Sets per Year electric rock rotary drill
Packaging & Delivery
Packaging Details
wooden case
Port
qingdao
Lead Time:
according the quantity



Product Description





Made in china KHYD electric rock rotary drill for sale



1. Features



1.Be used for drilling burst mine hole in rock

2.Be able to do wet type and dry type work

3.Be easy to move, easy to operate



2. Applications



1.Electric rock drill is used for drilling burst mine hole in rock.



2. It is widely used in the mine shaft excavation, road construction, water conservancy construction, metallurgy mining, rock engineering, quarry operation, basic engineering drilling reinforcement construction process.



3.The explosion-proof electric rock drill is used for drilling water injection hole, on coal seam, exploring water holes and discharging gas, also can be used for soft rock tunnel excavation.



4.they can do wet type and dry type work (equipped with twist drill rod). Drills holes horizontally forward or tilt up, only need to control the handwheel, the drill will track forward and backward automatically on the railway.

Product Parameter:





Model

Drilling dia.

for rock

Drilling dia.

for mine

Drilling depth for rock

Drilling depth for mine

Spindle speed

Power

weight

HWYD40

42mm

45-60mm

5m

20-60m

2814 r/min

2kw

40kg

HWYD75

42mm

45-80mm

10m

30-80m

1420 r/min

3kw

75kg

HWYD140

42-80mm

80-100mm

20m

30-80m

1440 r/min

5.5kw

140kg

HWYD150

42-80mm

80-120mm

25m

40-100m

1440 r/min

7.5kw

150kg

accessories:35#/42#  round dril rod / Twist drill rod   alloy bit and slide

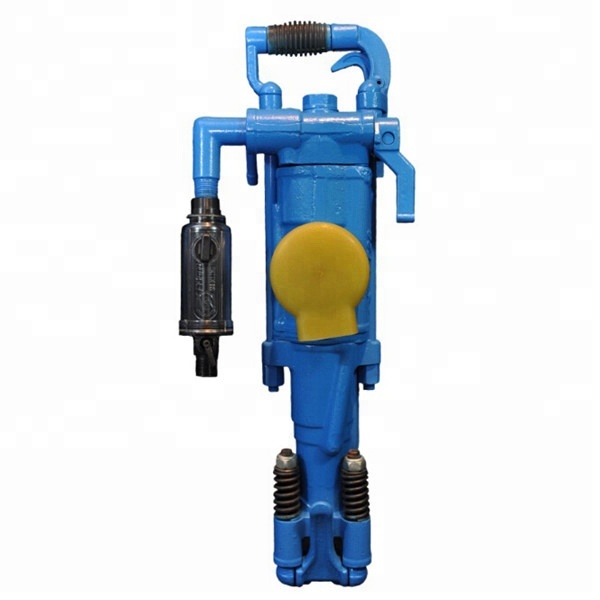

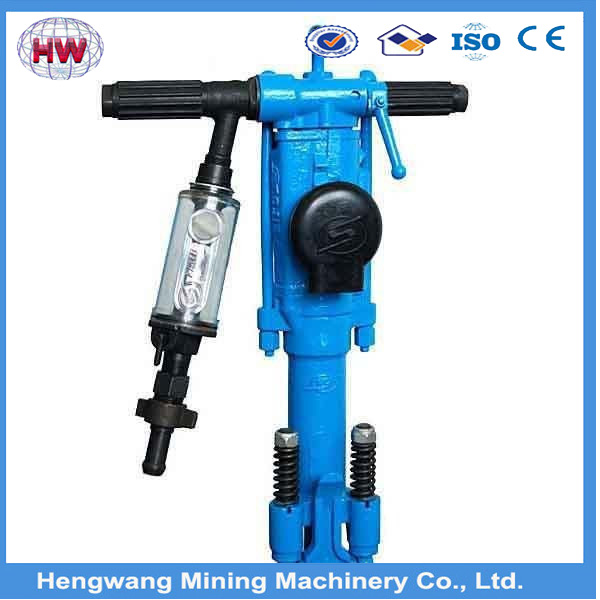

Figure photos
