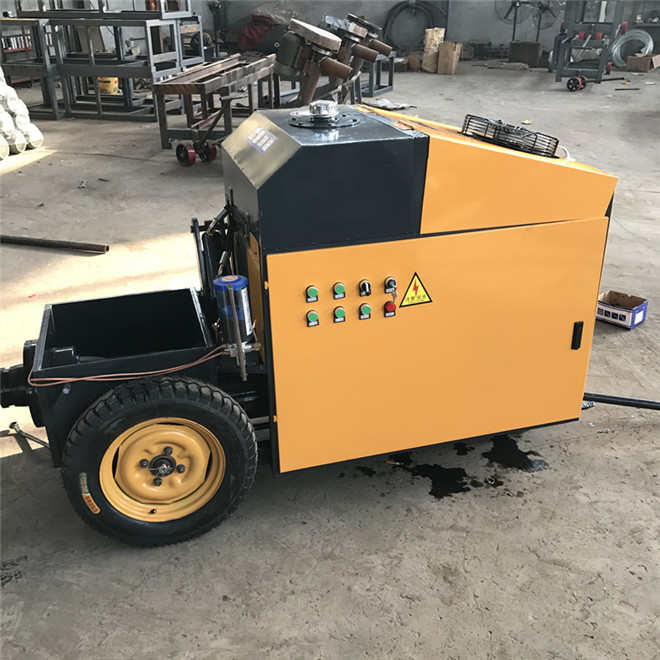

china made concrete pump with mixer trailer
Product Description
Model | -- | HW15-05-22 (piston) | HW20-08-33 (piston) | HW-04 (squeeze) |
Motor power | kw | 22 | 30 | 4 |
Maximum theoretical working pressure | Mpa | 5.3 | 8 | 5 |
Theoretical displacement | m³/h | 15 | 20 | 6 |
Maximum horizontal delivery distance | m | 200 | 350 | 180 |
Maximum vertical delivery distance | m | 80 | 140 | 180 |
Maximum grain size | mm | ≤20 | ≤25 | ≤6 |
Cylinder diameter and stroke | mm | Φ140×800 | Φ140×800 | Squeeze pipe Φ50×1400 |
Delivery hose diameter | mm | Φ80, Φ50 | Φ100,Φ80 | Φ38 |
Net weight | kg | 1580 | 2000 | 500 |
Dimension (L×W×H) | mm | 3400×1320×1480 | 4000×1500×1550 | 800×1100×1300 |
Product Show
Jining Heng Wang Mining Machinery company is located in Jining, the Kong Meng Township
and the canal charm city. Oriental holy city of Qufu is in the east, west near the Beijing-Hangzhou
Grand Canal,south near Weishan Lake,north near Yue Chun Mount Tai.
Our company is established in 2002, registration capatial is 10,800,000 RMB,more than 200
existing staffs.
