fiberglass self-drilling anchor rock bolt
Production Description
light weight fiberglass rock bolts
The application of fiberglass rock bolts offers various possibilities.In cooperation with FiReP
International AG (Switzerland), offers a range of fiberglass rock bolts that are manufactured using
the latest technologies. The material offers high mechanical solidity and favorable long-term behavior for anchor technology.
Benefits of fiberglass rock bolts
1.Good machinability
2.Corrosion resistance
3.High tensile strength
4.Low weight
5.Easy handling
6.Good ductility
parameters
Specification | Diameter (mm) | Torque (Nm) | Tensile Strength (Mpa) ≥ | Shear Strength (Mpa) ≥ | Anchoring Strength (Kn) ≥ | Tensile Strength of nut (Kn) ≥ | Load capacity of the plate (Kn) ≥ |
S-16 | 16 | 45 | 600 | 110 | 110 | 50 | 60 |
S-18 | 18 | 70 | 620 | 110 | 170 | 75 | 75 |
S-20 | 20 | 80 | 670 | 110 | 210 | 80 | 80 |
S-22 | 22 | 90 | 690 | 120 | 260 | 90 | 90 |
S-25 | 25 | 120 | 720 | 125 | 360 | 100 | 100 |
H-25 | 25/12 | 90 | 660 | 150 | 250 | 70/120(metal) | 100 |
H-32 | 32/14 | 220 | 700 | 180 | 360 | -- /120(metal) | -- |
Remarks | S: Solid Bar; H: Hollow Bar | ||||||

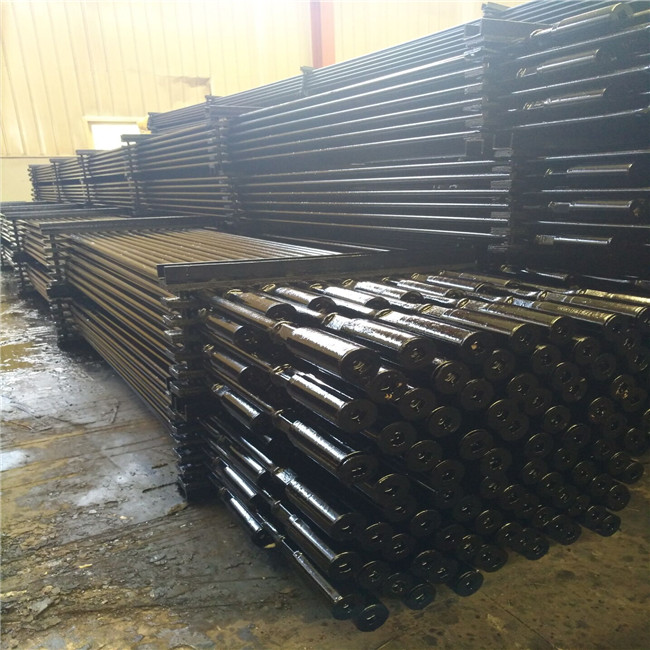

Product Picture
