Home > Products > cheap D9 plug ramming machine Pneumatic Tamper tamping machine with best quality

cheap D9 plug ramming machine Pneumatic Tamper tamping machine with best quality

Click on the image to view the original image

Product：	views：2cheap D9 plug ramming machine Pneumatic Tamper tamping machine with best quality
Branch：	HW
Type：	Air Hammer, Air/Pneumatic rammer
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:34

Product Details

Overview

Quick Details

Place of Origin:: Shandong, China

Brand Name:: HW

Model Number:: HW

Type:: Air Hammer, Air/Pneumatic rammer

Average Air Consumption:: 0.25 l/s

name:: Air/Pneumatic rammer

Maximum Torque:: no

No-Load Speed:: 2450

operation pressure:: 0.63 mpa

air consumption:: 0.25 l/s to 0.65l/s

Diameter of piston:: 17mm to 32mm

color:: black or blue

length:: 410mm to 1180mm

Supply Ability

Supply Ability:: 1000 Piece/Pieces per Day D9 air sand rammer

Packaging & Delivery

Packaging Details: carton box or according to your requirements

Port: qingdao

Lead Time:: within 2 days

cheap D9 plug ramming machine Pneumatic Tamper tamping machine with best quality

Product Description

cheap D9 plug ramming machine Pneumatic Tamper tamping machine with best quality

Product Introduction

1. Air/Pneumatic rammer hammer tamper Appliance :

It is widely used in road construction, concrete and other hard objects demolition. It is featured by durable parts, good performance and easier operation, which is a classic products among breaking tools.

Tamping machine is a compressed air as the driving force of mechanized hand tools. Tamping suitable for medium sized castings, sand, and can also be used for operations such as concrete and brick.

The pneumatic tamper can be applied to tamping for small size sand-cast, and to the tamping of concrete adobe and bricks.

2. Air/Pneumatic rammer hammer tamper Feature:

1. Applied to tamp sand mould

2. High quality and reasonable price

3. MOQ: 1set

cheap D9 plug ramming machine Pneumatic Tamper tamping machine with best quality

Technology Parameters

cheap D9 plug ramming machine Pneumatic Tamper tamping machine with best quality

Type	D3	D4	D6	D9
weight	2.5kg	3.6kg	6kg	9kg
operation pressure	0.63 mpa	0.63mpa	0.63mpa	0.63mpa
air consumption	0.25 l/s	0.35l/s	0.45l/s	0.65l/s
Diameter of piston	17mm	20mm	25mm	32mm
Structure of travel	92mm	128mm	155mm	207mm
Diameter of hammer	32mm	36mm	42mm	54mm
internal diameter of air pipe	13mm	13mm	13mm	13mm
length	410mm	480mm	975mm	1180mm

cheap D9 plug ramming machine Pneumatic Tamper tamping machine with best quality

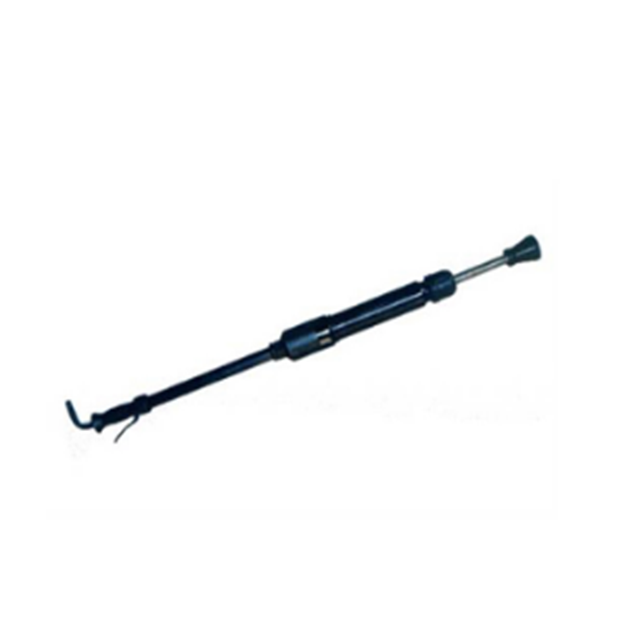

The real details photo

cheap D9 plug ramming machine Pneumatic Tamper tamping machine with best quality
