Air Powered Tools D4 Pneumatic Rammer For Sand Casting

Click on the image to view the original image

Product：	views：2Air Powered Tools D4 Pneumatic Rammer For Sand Casting
Branch：	HENGWANG
Type：	Air/Pneumatic rammer
Size：	80X40X30 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:34

Product Details

Overview

Quick Details

Warranty:: 2 Years

Power(W):: 5.5HP

Weight:: 10

After-sales Service Provided:: Video technical support, Online support, Free spare parts, Field installation, commissioning and training, Engineers available to service machinery overseas

Certification:: ISO

Applicable Industries:: Construction works

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: HENGWANG

Voltage:: Customized

Dimension(L*W*H):: 760*430*1000mm

UNIQUE SELLING POINT:: High operating efficiency

Type:: Air/Pneumatic rammer

Average Air Consumption:: 0.25 l/s

name:: Air/Pneumatic rammer

Maximum Torque:: no

No-Load Speed:: 2450

operation pressure:: 0.63 mpa

air consumption:: 0.25 l/s to 0.65l/s

Diameter of piston:: 17mm to 32mm

color:: black or blue

Packaging & Delivery

Selling Units:: Single item

Single package size:: 80X40X30 cm

Single gross weight:: 5.0 kg

Package Type:: carton box or according to your requirements

Lead Time:

Quantity(Piece)	1 - 40	41 - 100	>100
Est. Time(days)	2	3	To be negotiated

Air Powered Tools D4 Pneumatic Rammer For Sand Casting

Product Description

Air Powered Tools D4 Pneumatic Rammer For Sand Casting

Product Introduction

1. Air/Pneumatic rammer hammer tamper Appliance :

It is widely used in road construction, concrete and other hard objects demolition. It is featured by durable parts, good performance and easier operation, which is a classic products among breaking tools.

Tamping machine is a compressed air as the driving force of mechanized hand tools. Tamping suitable for medium sized castings, sand, and can also be used for operations such as concrete and brick.

The pneumatic tamper can be applied to tamping for small size sand-cast, and to the tamping of concrete adobe and bricks.

2. Air/Pneumatic rammer hammer tamper Feature:

1. Applied to tamp sand mould

2. High quality and reasonable price

3. MOQ: 1set

Air Powered Tools D4 Pneumatic Rammer For Sand Casting

Technology Parameters

Air Powered Tools D4 Pneumatic Rammer For Sand Casting

Type	D3	D4	D6	D9
weight	2.5kg	3.6kg	6kg	9kg
operation pressure	0.63 mpa	0.63mpa	0.63mpa	0.63mpa
air consumption	0.25 l/s	0.35l/s	0.45l/s	0.65l/s
Diameter of piston	17mm	20mm	25mm	32mm
Structure of travel	92mm	128mm	155mm	207mm
Diameter of hammer	32mm	36mm	42mm	54mm
internal diameter of air pipe	13mm	13mm	13mm	13mm
length	410mm	480mm	975mm	1180mm

Air Powered Tools D4 Pneumatic Rammer For Sand Casting

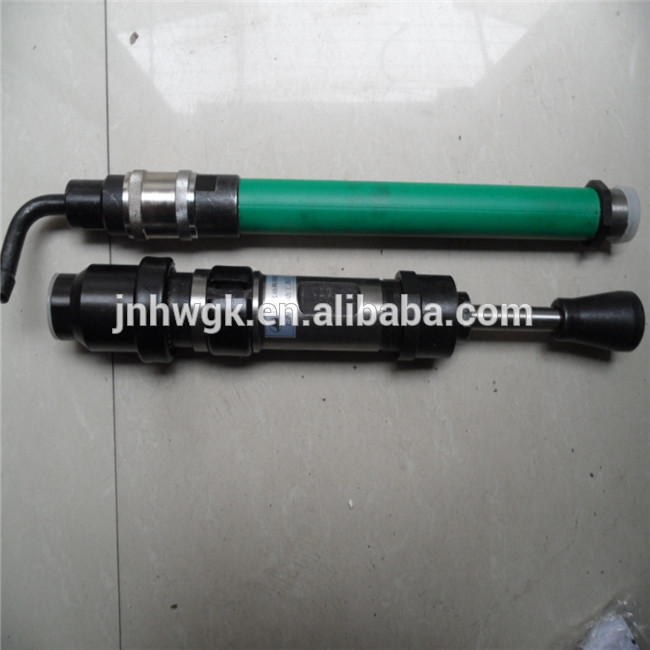

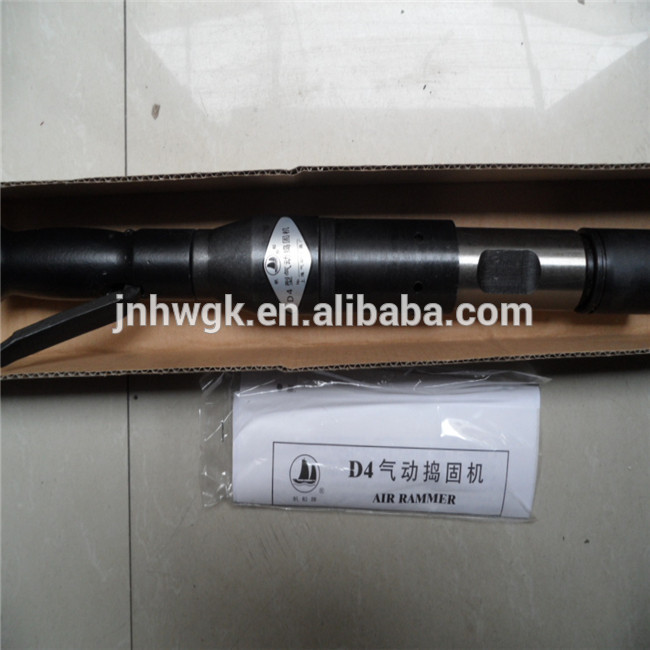

The real details photo

Air Powered Tools D4 Pneumatic Rammer For Sand Casting
