20m depth DTH drilling machine

Click on the image to view the original image

Product：	views：220m depth DTH drilling machine
Branch：	HW
Type：	Core Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:34

Product Details

Overview

Quick Details

Condition:: New

Type:: Core Drilling Rig

Power Type:: Electric

Place of Origin:: Shandong, China

Brand Name:: HW

Model Number:: HQZ200

Usage:: Water Well

Voltage:: 380v

Power(W):: 5kw

Dimension(L*W*H):: 2.0*1.5*1.8 m

Weight:: 500KG

Certification:: CE

Model:: down-hole drill rig

Dia of The Hole:: 80-100mm

Working Pressure:: 0.5-0.7Mpa

Lifting Power:: 9600N

Specification of Drill Rod:: 60*1000mm

Depth of The Hole:: 200m

Air Consumption:: ≥7m3/min

Rotation Speed:: 0-84rmp

After-sales Service Provided:: Overseas service center available

Warranty:: two years

Supply Ability

Supply Ability:: 1000 Set/Sets per Year DTH drilling rig

Packaging & Delivery

Packaging Details: wooden case

Port: qingdao

Lead Time:: 15days

Product Description

Model	HQZ150	HQZ200
Drilling dia	100-219 MM	100-254MM
Drilling depth	150M	200M
Drilling direction	45° -90°	45° -90°
Drill pipe length	1500MM	1500MM
Eletric motor power	7.5KW	11KW
Drill swing speed	0-62rpm	52rpm
Air Pressure	0.8-2.1MPa	1.45-2.5MPa
Air consumption	13-21m3 /min	15-27m3 /min
Total weight	1300KG	1600KG
Diesel engine	NO	YES

DTH drilling rig application: Suitable for workers, civil drilling, geothermal drilling, with a large diameter drilling, deep drilling, mobile and flexible application of geographical advantages.

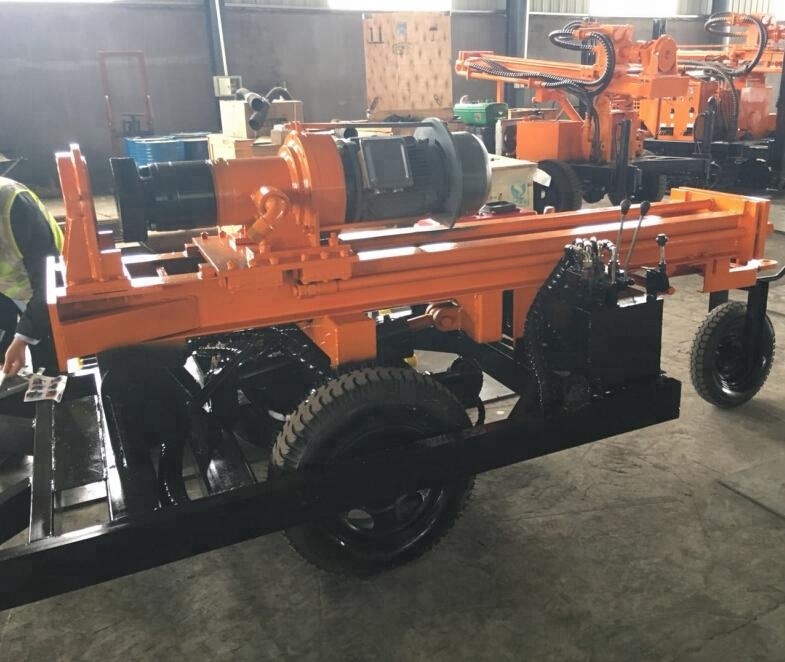

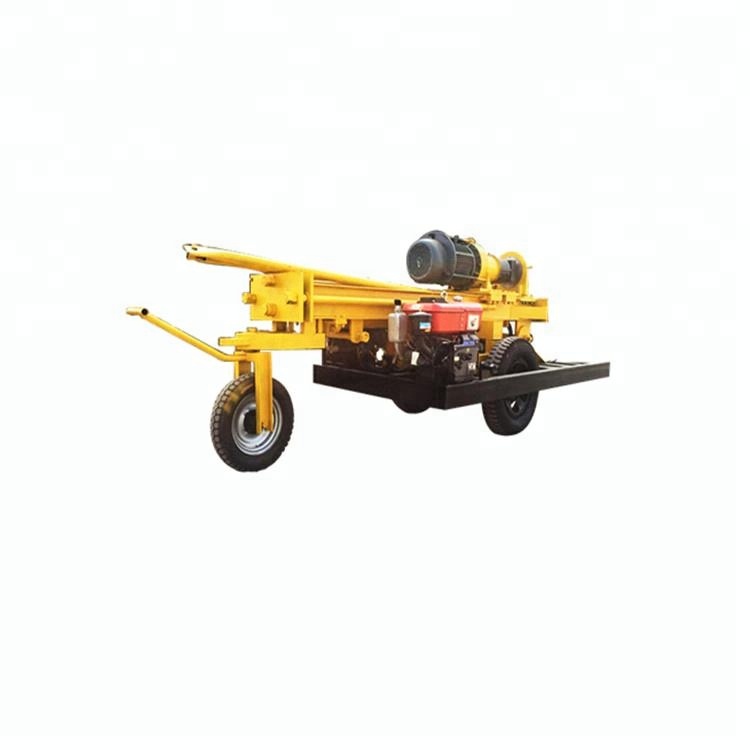

Products Show

Packing & Delivery

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
