Home > Products > HW-PL30 used stone splitting machine/Concrete Block Splitter

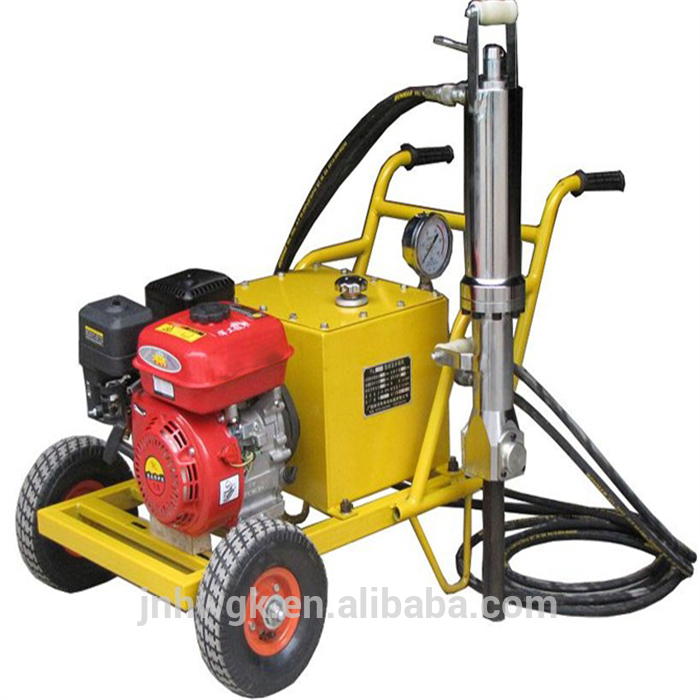

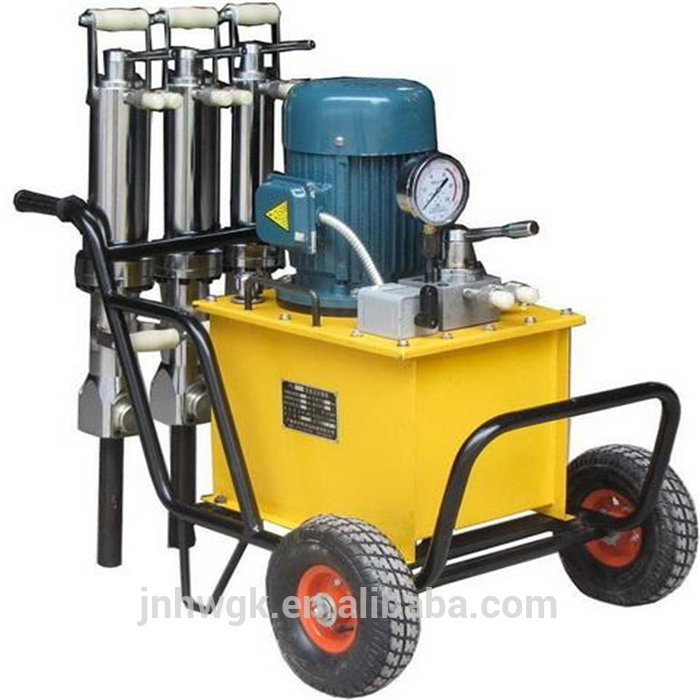

HW-PL30 used stone splitting machine/Concrete Block Splitter

Click on the image to view the original image

Product：	views：2HW-PL30 used stone splitting machine/Concrete Block Splitter
Branch：	HWGK
Type：	Rock Splitter
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:34

Product Details

Overview

Quick Details

Type:: Rock Splitter

Condition:: New

Application:: Hydraulic Rock Splitter

Motor Type:: AC Motor

Power(W):: 5.5KW

Place of Origin:: Shandong, China

Brand Name:: HWGK

Model Number:: HW-PL30

Dimension(L*W*H):: 450 410 700

Certification:: ISO9001

Drilling Dia(mm)::: 38-40MM

Real breaking force::: 660

Name:: used stone splitting machine

Engine::: diesel engine

Drilling deepth(mm)::: 400

Splite Width(mm)::: 10-40

Piston inner Dia(mm)::: 70/180

Theory breaking forcing(Tons)::: 700

Splitter Length(mm)::: 200

After-sales Service Provided:: Overseas third-party support available

Warranty:: 2 Year

Supply Ability

Supply Ability:: 1000 Piece/Pieces per Week HW-PL30 used stone splitting machine/Concrete Block Splitter

Packaging & Delivery

Packaging Details: Standards export packing

Port: QINGDAO SHANGHAI TIANJIN

Lead Time:: Within 3 days receiving payment

Product Description

used stone splitting machine

Bore diameter	Minimun drilling depth	The length of the wedge	Crack width of a division	Split time	Theoretical splitting force	The actual split force
(MM)	(MM)	(MM)	(MM)	(S)	(T)	(T)
Φ36~40	≥300	150	10~40	5~12	720	680
Φ38~40	≥400	200	10~40	5~12	700	660
Φ38~42	≥500	250	10~40	5~12	680	640
Φ38~42	≥600	300	10~40	5~12	660	620
Φ45~50	≥800	380	10~40	5~12	640	600
