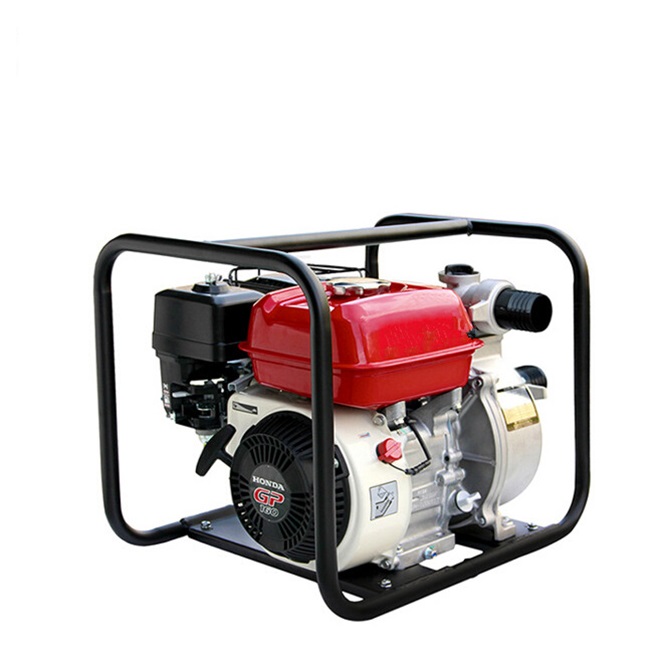

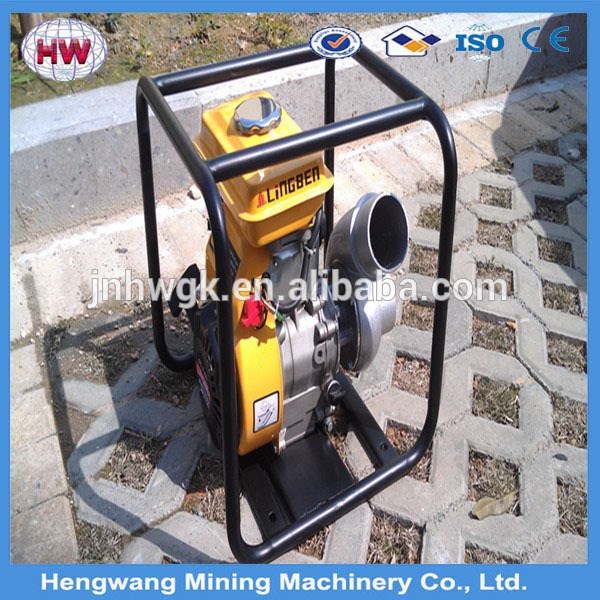

4 inch irrigation gasoline water pump
1.OHV ENGINE 2.CLOSE IN STRUCTURE AND CONVENIENT IN OPERATION 3.LOW SOUND, LESS OIL CONSUMPTION, LIGHT WEIGHT, LARGE DISCHARGE
1. ADOPT OHV ENGINE
2. CLOSE IN STRUCTURE AND CONVENIENT IN OPERATION
3. LOW SOUND, LESS OIL CONSUMPTION, LIGHT WEIGHT AND LARGE DISCHARGE
4. NO NEEDED POWER SOURCE, SAFE USING.
5. EASY TO OPERATION AND MOVE.
| MODEL | NDL30 |
| SUCTION/DISCHARGE PORT DIAMETER[MM(IN)] | 80(3") |
| ASSEMBLY WEIGHT(KG) | 26 |
| LIFT(M) | 25 |
| SUCTION(M) | 8 |
| FLOWING VOLUME(M³/H) | 60 |
| ENGINE | OHV FORCE COOLED |
| BORE*STROKE(MM) | 68*54 |
| MAX.POWER KW (HP)/RPM | 4.2(6.5)/3600 |
| DISPLACEMENT(CC) | 196 |
| FUEL TANK CAPACITY(L) | 3.6 |
| OIL CAPACITY(L) | 0.6 |
| FUEL CONSUMPTION(G/KW·H) | 310 |
| STARTING SYSTEM | RECOIL START |
| DIMENSION | 50.50*38.5*42.5 |
