Home > Products > MQS manual Hydraulic anchor rope cable cutter
MQS manual Hydraulic anchor rope cable cutter
Click on the image to view the original image
Product： views：2MQS manual Hydraulic anchor rope cable cutter
Branch： HENG WANG
Type： CUTTING TOOLS
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:34
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
HENG WANG
Model Number:
MQS
Type:
CUTTING TOOLS
Processing Type::
Casting
weight::
11kg
name::
MQS manual Hydraulic anchor rope cable cutter
Process of piston::
28mm
Material::
Iron
forehead on oil pressure::
63Mpa
Maximum shear force::
190N
working principle::
Hydraulic transmission
Cut the maximum diameter of wire rope::
15.24mm
Condition::
New
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
wooden box
Port
QINGDAO TIANJIN SHANGHAI





Anchor Cutter with manual anchor tensioning equipment used for cable installation, exposed strand cutting superfluous, but is prohibited in places of excessive gas content. Cable cutting device can also be one-way manual pump with a small diameter steel cut into separate groups to use for PC strand, anchor.





Mining anchor cable (strands) to cut off the appliance has a light weight, easy to operate, with

high quality segment, cutting off fast and durable



Usage:



Support in coal mine roadway drivage, mining anchor cable steel strand) cutter can be quickly

cut off the long exposed anchor cable anchor cable installation



Parameter







Model

MQS-15

MQS-18

Rated Cut off power

190KN

290KN

For steel wire diameter

15.24mm

17.80mm

Trip

28mm

28mm

Rated  oil pressure

63Mpa

63Mpa

Weight (oil)

11kg

18kg

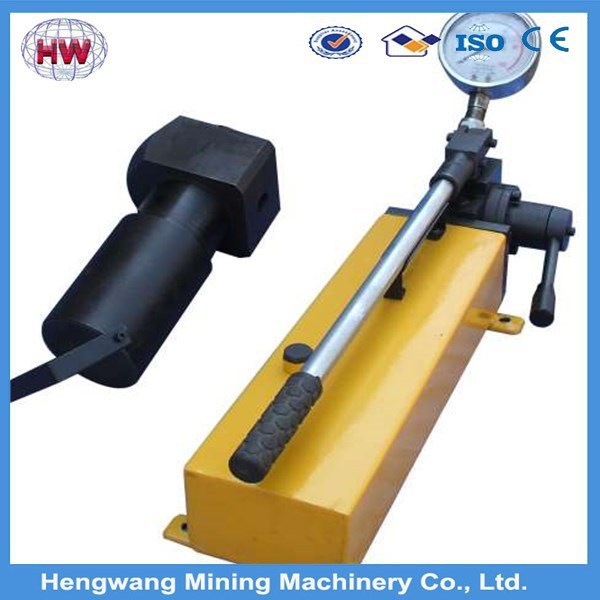

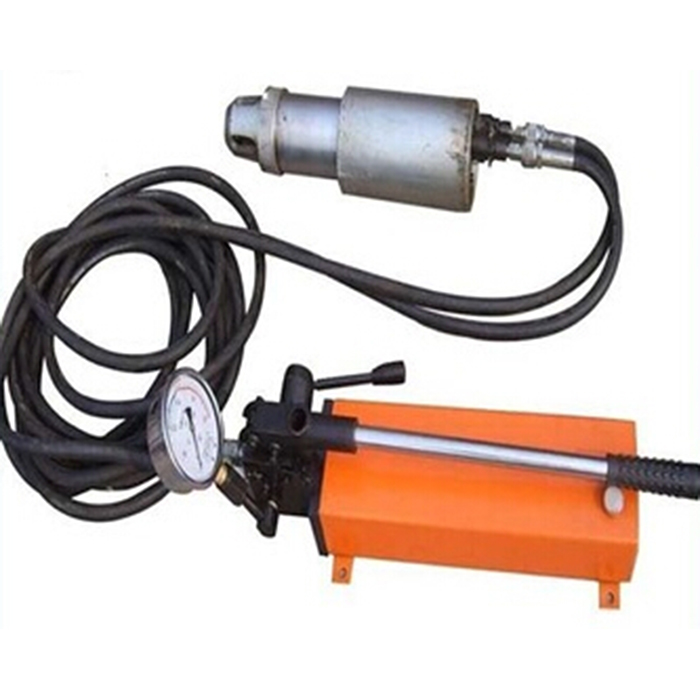

Figure Photos
