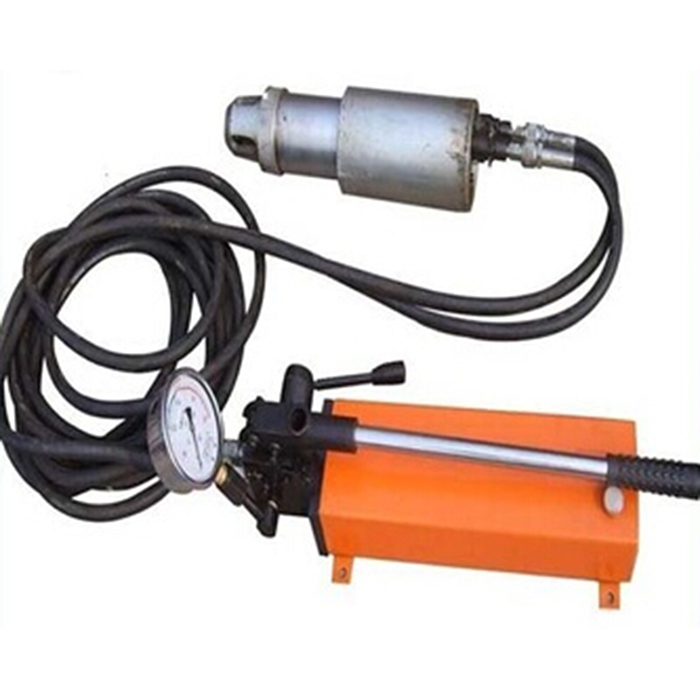

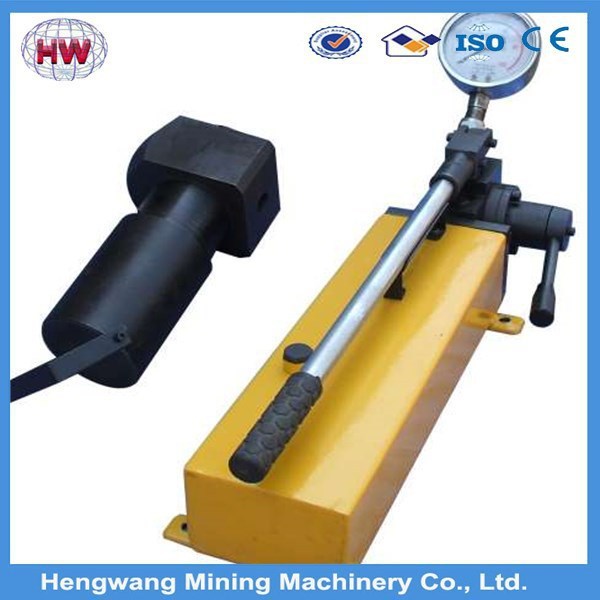

Anchor Cutter with manual anchor tensioning equipment used for cable installation, exposed strand cutting superfluous, but is prohibited in places of excessive gas content. Cable cutting device can also be one-way manual pump with a small diameter steel cut into separate groups to use for PC strand, anchor.
Mining anchor cable (strands) to cut off the appliance has a light weight, easy to operate, with
high quality segment, cutting off fast and durable
Usage:
Support in coal mine roadway drivage, mining anchor cable steel strand) cutter can be quickly
cut off the long exposed anchor cable anchor cable installation
Parameter
Model | MQS-15 | MQS-18 |
Rated Cut off power | 190KN | 290KN |
For steel wire diameter | 15.24mm | 17.80mm |
Trip | 28mm | 28mm |
Rated oil pressure | 63Mpa | 63Mpa |
Weight (oil) | 11kg | 18kg |
Figure Photos
