Product Description

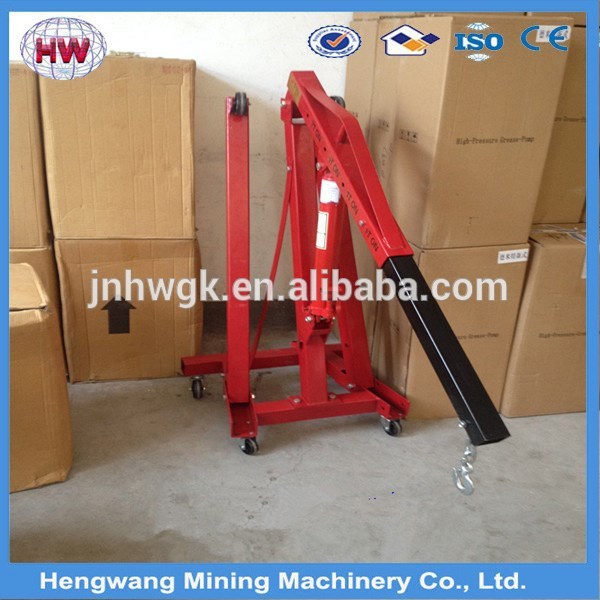

China small hydraulic crane Features:
- Designed for shops with limited space.
- Folds for easy storage.
- Heavy steel construction for maximum durability.
- Boom is reinforced to increase strength and eliminate flex
- Heavy-duty steel casters for easy positioning.
- Front casters include a safety brake to prevent movement.
- Telescopic boom provides 4 positions.
- Includes heavy steel hook with safety latch.
- Wide base for maximum stability.
model | SC500 / SC500A / SC500B | SC1000 / SC1000A / SC1000B | SC2000 / SC2000A / SC2000B |
capacity(kg) | 500 | 1000 | 2000 |
max.beam length(mm) | 1095 | 1570 | 1595 |
min.beam length(mm) | 895 | 1270 | 1295 |
max.hook height(mm) | 2170 | 2500 | 2550 |
min.hook height(mm) | 295 | 250 | 175 |
A leg before height(mm) | 165 | 90 | 205 |
A size leg before(mm) | 798/948 | 925/1079 | 994/1158 |
net weight(kg)/set | 80 | 118 | 165 |
packing way | wood pallet | wood pallet | wood pallet |
set(s)/pallet | 1/1/ B:3 | 1/1/ B:3 | 1/1/1 |
pallet size | 156*50*54cm/ B:150*52*99cm | 174*50*65cm/ B:164*54*104cm | 196*63*68cm/ B:187*67*43cm |
gross weight(kg)/pallet | 100/ B:263 | 142/ B:380 | 200/200 |
Figure photos
Figure photos for small hydraulic crane
