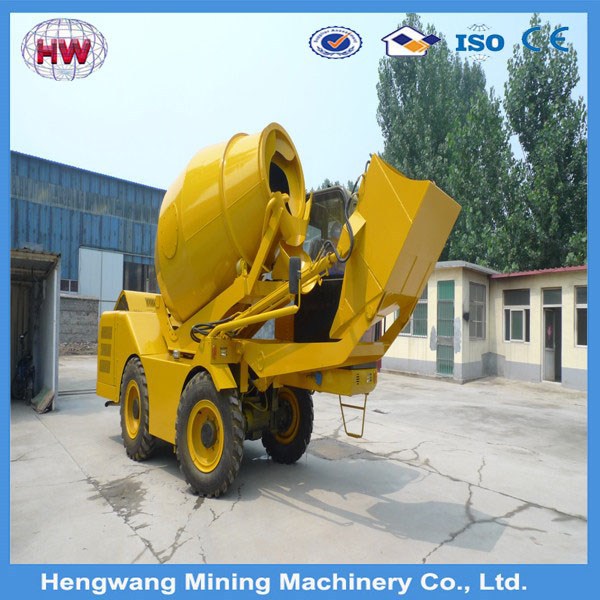

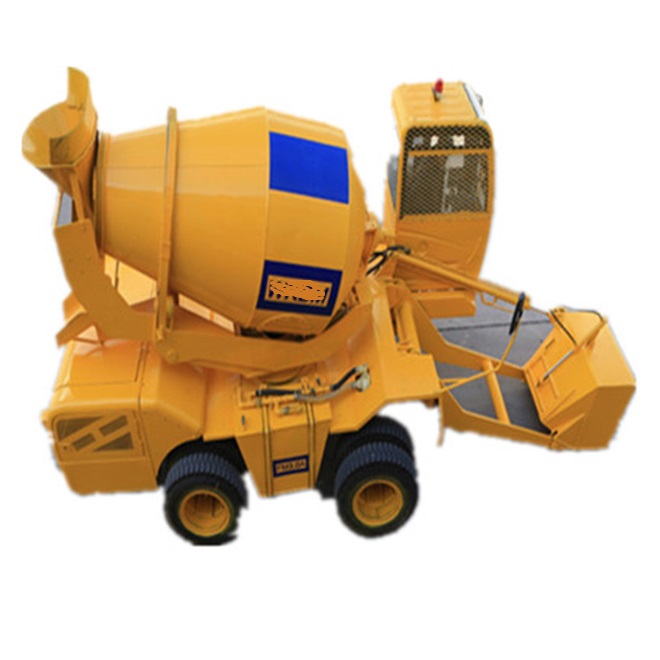

big mobile concrete mixer of block making machine
| MIXING UNIT | Drum capacity 4.3 m3. Concrete output: 3.0 m3 per batch. The mixing unit is slewing hydraulically through 300° |
| PRODUCTIVITY | up to 4 batches per hour |
| ENGINE | YUCHAI YC4D85 water-cooled, 4cylinders. Rated power 60KW/2200rpm . |
| TRANSMISSION | 4 wheels drive,4 wheels steering. |
| SPEED | Working speed from 0 to 9 km/h, road transfer from 0 to 20 km/h. |
| DRIVING SEAT | Front cab on side of loading shovel. ROPS-FOPS type complete with double closing door. |
| HYDRAULIC SYSTEM | Three circuits. 2 variable outlet pumps for hydrostatic transmission and drum rotation. 1 gear pumps for services. Inlet and outlet filter. Heat exchanger water/oil-air type. |
| JOYMIX | All hydraulic functions of shovel controlled by a single - fully servo controlled Joystick. |
| LOADING SHOVEL | Capacity 400 liters, complete with hydraulic opening gate. |
| CHUTE | Slewing and hydraulically tilting. Fitted with two pins easily detachable to increase the discharge height. |
| WATER SYSTEM: | Self-contained. Hydraulic driven water pump, water meter. High pressure water pump & washing gun(on request). |
| BRAKES: | Oil bath disc brakes inside differential axles. Twin indipendent circuits. Negative hydraulic parking brake. |
| TYRES | 10.00-20-16 |
| ELECTRIC SYSTEM | 24 Volt. 120 Ah battery for electric starter and road lighting. Safety battery cut-off. |
| TANKS | Water: 2x300 liters. Diesel: 100 liters. Hydraulic oil: 125 liters. |
| CHASSIS | Steel profile specially engineered for off-road operations. |
| WEIGHT | About Kg.7500, equally distributed on both axles |
| OVERALL DIMENSIONS | Long: 6.715M Width 2.28M High: 3.23M |
| SAFETY | Machine equipped with checking and block valves for maximum safety of the operator. |
