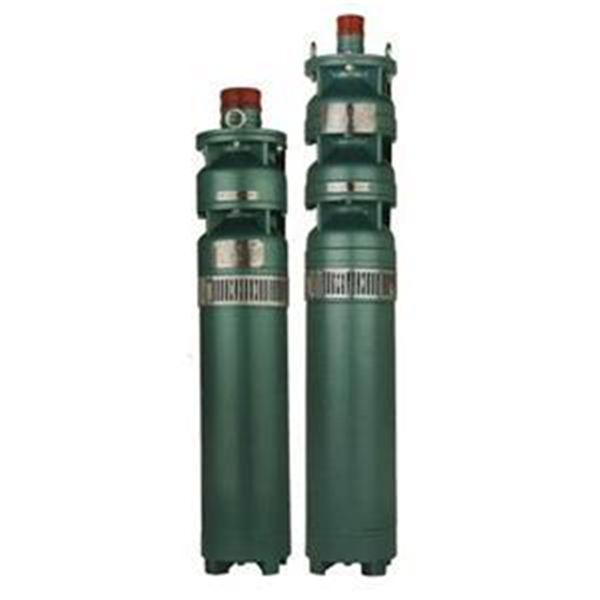

deep well submersible pump 2 inch diameter
· Motor is wet type submersible motor, simple structure
· High strength water resistant insulation nails, winding wires, strong water resistance, insulation performance is good
· Pumps installed directly on the motor shaft, compact structure small volume, light weight, high efficiency and reliable operation
· Bearing with high wearresistant copper alloy sliding bearing and stainless steel shaft sleeve, and guarantee the motor run smoothly without noise, long service life
· Motor shaft extension end of sand control unit, reliable in performance
· Should be submerged pumps running, dive into the depth not greater than 5 m
· Row to send medium: temperature is not higher than 20 °C
· The water sand content is not more than 0.01%
· No greater than 400 mg/L chloride ion content
serial number | specifications | flux | lift | power | remark |
|
|
|
|
| outlet diameter |
1 | QS10-34-2.2 | 10 | 34 | 2.2 | 1.5" |
2 | QS10-54-3 | 10 | 54 | 3 | 1.5" |
3 | QS10-72-4 | 10 | 72 | 4 | 1.5" |
4 | QS10-90-5.5 | 10 | 90 | 5.5 | 1.5" |
5 | QS10-102-5.5 | 10 | 102 | 5.5 | 1.5" |
6 | QS10-105-7.5 | 10 | 105 | 7.5 | 1.5" |
7 | QS10-120-7.5 | 10 | 120 | 7.5 | 1.5" |
8 | QS10-144-7.5 | 10 | 144 | 7.5 | 1.5" |
9 | QS15-26-2.2 | 15 | 26 | 2.2 | 1.5" |
10 | QS15-52-4 | 15 | 52 | 4 | 1.5" |
