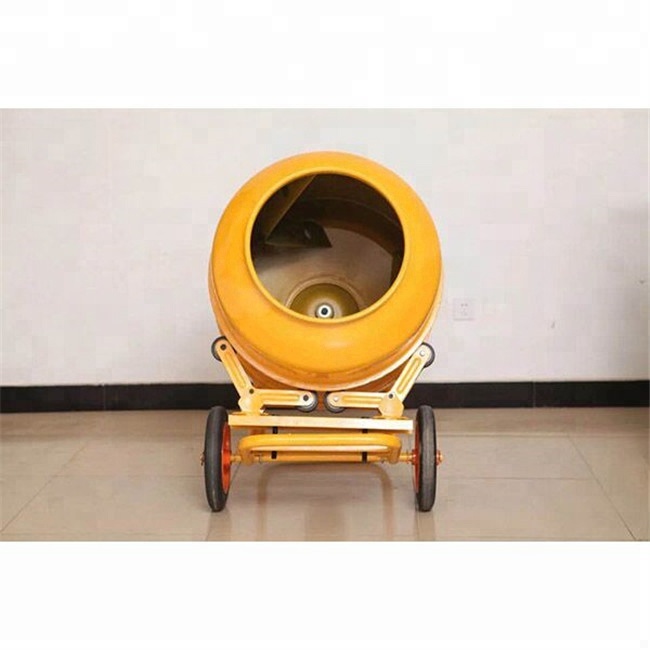

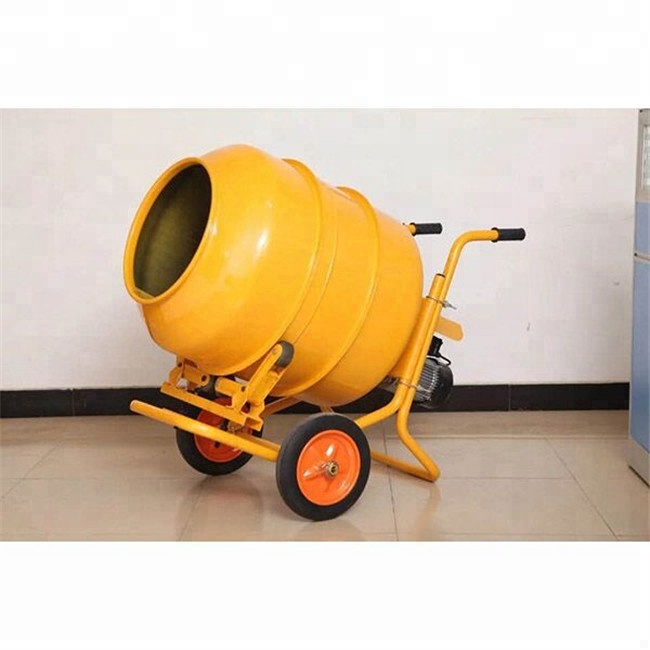

hand cement mixer/cement mortar mixer/cement mixer in wheelbarrow :
concrete mixer, cement mixer
1.tipping bucket or lifting hopper to feed material.
2.Automatic or hydraulic discharge system.
3.two or four wheels, low weight, easy to move as site changes.
4.electric engine or diesel type is optional for power supply.
Mini Cement Mixer | ||||||||
Model No. | CM-2A Mini Cement Mixer, CM-4A Mini Cement Mixer | |||||||
Charge Volume | 260 L | 300 L | 350 L | 400 L | ||||
Discharge Volume | 230 L | 270 L | 320 L | 370 L | ||||
Productivity | 6-10 m³/h | 8-12 m³/h | 10-14 m³/h | 12-16 m³/h | ||||
Churn Speed | 30 r/min | |||||||
Motor Power | 4 HP | 6 HP | ||||||
Motor Engine | Diesel Engine / Gasoline Engine / Electric Motor | |||||||
Drum Thickness | 2.75-3.75 mm | |||||||
Transmission Way | Big Gear Wheel | |||||||
Material | 100% Steel | |||||||
Type of The Tires | 4.00-12 Tire | |||||||
Overall Dimension (L×W×H mm) | 1900x900x1100 | 1960x940x1100 | 1960x940x1100 | 1960x1100x1200 | ||||
Weight(kg) | 333 | 338 | 353 | 358 | 379 | 384 | 389 | 394 |
Loading Plan | 14 sets Per 20GP, 28 sets Per 40 HC for Cement Mixer | |||||||
