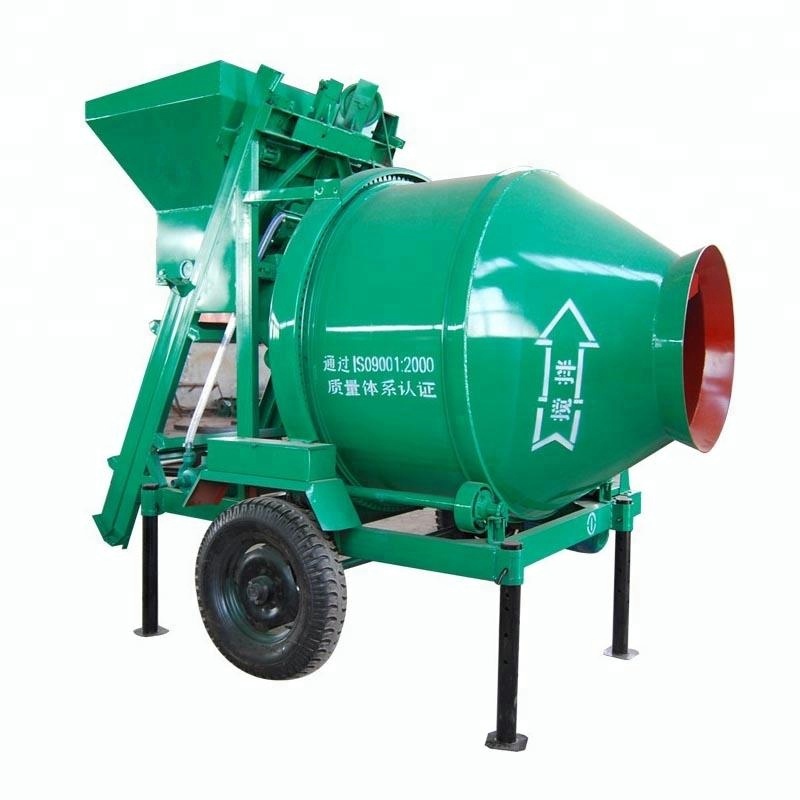

JZC 350 concrete mixer
Main Technical Parameter | |
Model | JZC350 |
Discharging Capacity | 350 L |
Loading Capacity | 560 L |
Productivity | 10-14 m3/h |
Thickness of Mixing Drum | 6mm |
Rated Power of Diesel Engine | 5.5KW |
Power of Water Pump | 5.5KW |
Bore×Stroke of Hydraulic Cylinder | 80mm×540mm |
Displacement of Gear Pump | 25 ml/r |
Pressure of Multi-way Valve | 16 Mpa |
Accuracy of Water Supply | Error≤2 Percent |
Maximum Size of Aggregate | 6 mm |
Max Trailing Speed | 20 km/h |
Tyre Size | 6.50-16 |
Speed of Mixing Drum | 14 RPM |
Dimension in Container (L×W×H) | 3135*2190*2900mm |
Overall Weight | 2150 KGS |
product description:
JZC 350 Concrete Mixer with Hydraulic Tipping Hopper is mixer of double conical drums which discharge concrete by reverse-rotation, suitable for mixing plastic and semi-dry & hard concrete with the size of aggregate up to 60mm. Mixing is carried out when the mixing drum rotates in normal direction, and discharge is performed when the mixing drum rotates in reversed direction. Each time, the mixing drum can handle 0.35 cubic meters of concrete.
It is featured by diesel engine power, hydraulic tipping hopper, novel construction, advanced performance, high productivity, high mixing quality, compact structure, low energy consumption, simple operation, etc. Therefore, It is particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and small-sized prefabricated-component factories etc.

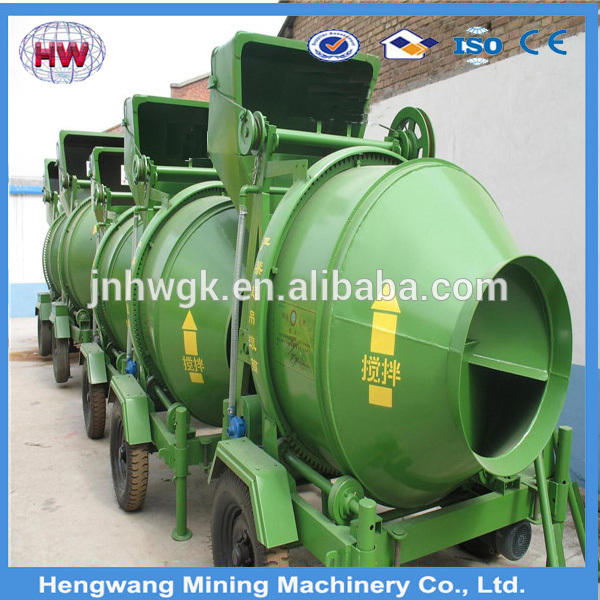

Figure photos:
