Concrete Vibrator screed concrete vibrator concrete table vibrator :
Concrete Vibrator
Product description :
1. Convenient and comfortable to operate due to the design of the motor and light waight
2. Double-insulation for the motor enhance the safe operation greatly
3. Working with the single phase power supply, very suitable for individual use.
Model |
| WR35 | WR50 | WR70 |
Vibrating spear | Diameter (mm) | 35 | 50 | 70 |
Vibrating Frequency(HZ) | 200 | 183 | 183 | |
Vibrating Amqlitude(mm) | 0.8 | 1 | 1.2 | |
Weight(KG) | 3 | 5 | 8 | |
Flexible axie&hose | Flexible axis Dia.(mm) | 10 | 13 | 13 |
Hose Dia.(mm) | 30 | 36 | 36 | |
Length(mm) | 4000 | 4000 | 4000 | |
Electromotr | Power(KW) | 1.1 | 1.5 | 2.2 |
Voltage(V) | 380 | 380 | 380 | |
Rotate speeed(rpm) | 2840 | 2840 | 2840 | |
Overall Dimensions | L×W×H(mm) | 320×180×280 | 320×180×280 | 320×180×280 |
Gross | (kg) | 16 | 17 | 19 |

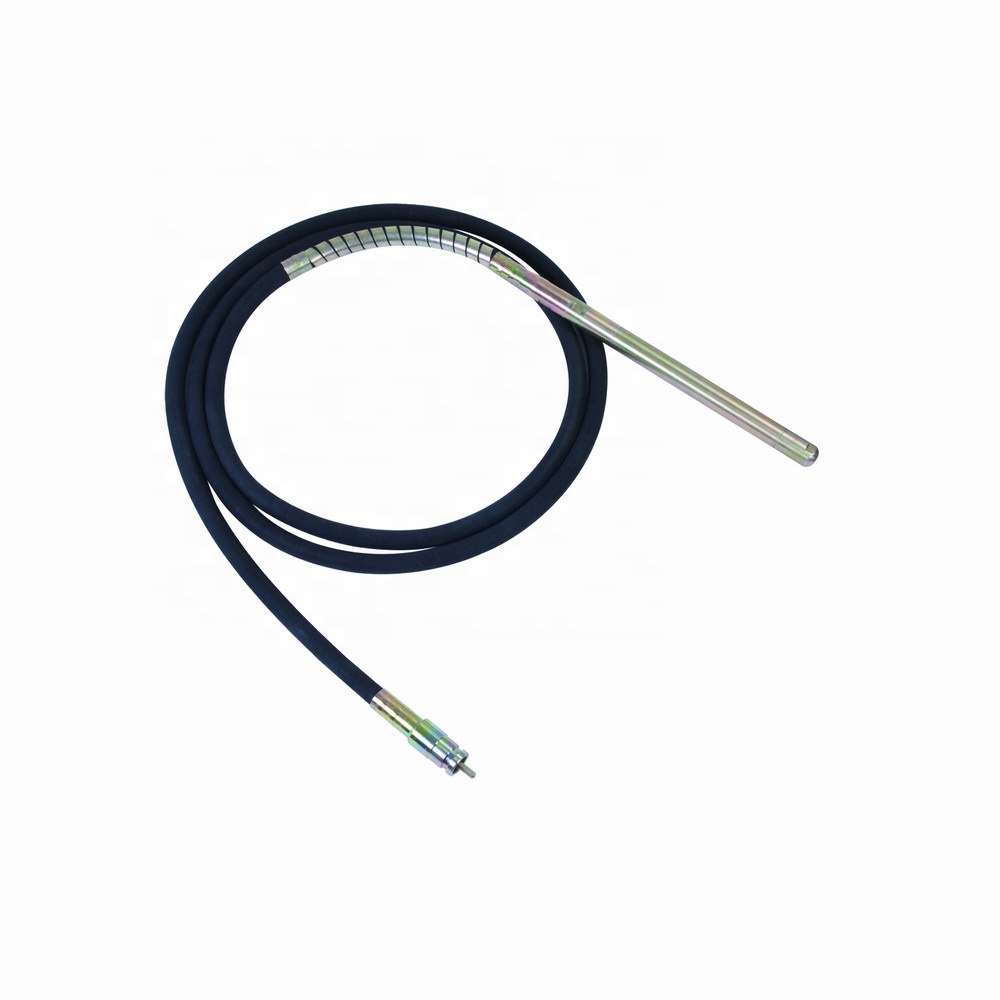

Sample pic :
Concrete Vibrator
clients inspection factory:
history order:
certificates:
