portable hydraulic drilling machine/land drilling machine/water well drilling machine heavy duty
Click on the image to view the original image
Product： views：2portable hydraulic drilling machine/land drilling machine/water well drilling machine heavy duty
Branch： HWGK
Type： Core Drilling Rig
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:35
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
Type:
Core Drilling Rig
Power Type:
Electric
Place of Origin:
Shandong, China
Brand Name:
HWGK
Model Number:
XY-3
Usage:
Coal
Voltage:
380v
Power(W):
59kw
Dimension(L*W*H):
2500*1000*1300mm
Weight:
1600kg
Certification:
CCC CE ISO
Weight::
1600KG
Power Type::
Electric
Name::
portable hydraulic drilling machine
Drill rod caliber:::
50mm
driling depth:::
600m
Drilling angle:::
90-65
Maximum open hole caliber:::
300mm
End hole caliber:::
75mm
Usage:::
Water Well
Power Type:::
electric / diesel .
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1year
Supply Ability
Supply Ability:
1000 Set/Sets per Week
Packaging & Delivery
Packaging Details
wooden box
Port
QINGDAO
Lead Time:
Within 3 days receiving payment

    portable hydraulic drilling machine





Drilling depth

m

100

250

300

600

Drilling  DI

mm

300

200

150

75

Open hole DI

mm

300

End hole  DI

mm

75

Drilling rod

mm

Φ60

Drilling angle



90°-65°

Rotary Spindle

Spindle forward speed

r/min

30-1050

Spindle reverse speed

r/min

29-137

Spindle stroke

mm

560

Spindle inner diameter

mm

96

Spindle lifting capacity

KN

60

Main Winch  ( drive hydraulic system)

Single line lifting speed

m/min

0-45

Hug floodgate belt width

mm

90

Tightrope diameter

mm

14

Hoist single line lifting capacity

KN

40

Roller diameter

mm

200

Roller cubic measure

m

30

Gear Oil pump

Duplex gear oil pump           CBF-F63/25

Front displacement,pressure



63mL/r    20Mpa

Behind displacement,pressure



 25mL/r    20Mpa

Drilling rig Power

Diesel engine

Hp

   R4105ZD    76HP

Electric motor

KW

   Y180L-4      22KW

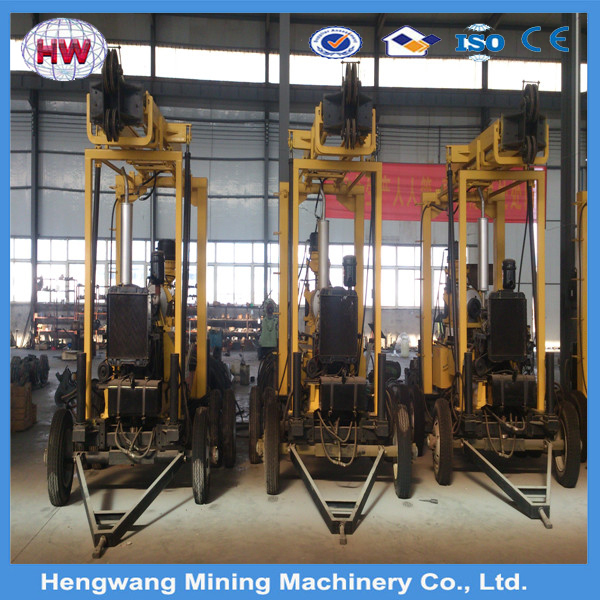

rock core drilling machine  picture







Drill workshop





Good cooperation



Transaction history



Kelly

Mob.: +86 13665372568 (WhatsApp,Wechat is available)

Tel.: +86 0537 2882838 QQ: 2853024729

Website: www.chinahwgroup.com


Any enquiry, pls do not heasitate to let Kelly know, best service will be offered to you
