Home > Products > HZ series of drilling machine/water well drilling machine/bore well drilling machine price

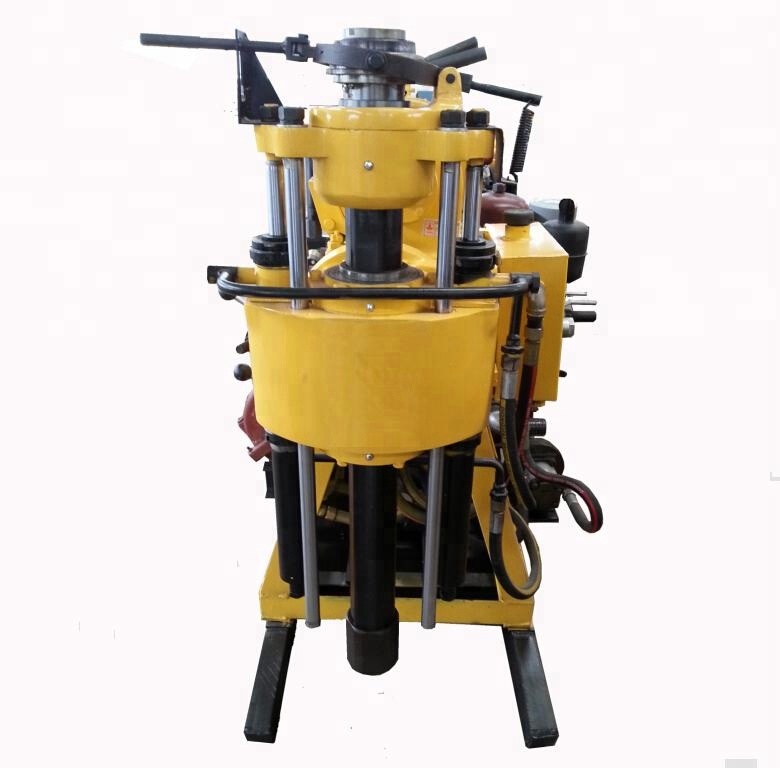

HZ series of drilling machine/water well drilling machine/bore well drilling machine price
Click on the image to view the original image
Product： views：2HZ series of drilling machine/water well drilling machine/bore well drilling machine price
Branch： HW
Type： Core Drilling Rig
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:35
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Place of Origin:
Shandong, China
Brand Name:
HW
Model Number:
HZ
Usage:
Water Well
Voltage:
380V
Power(W):
15KW
Dimension(L*W*H):
2500*900*1300mm
Weight:
975KG
Certification:
CCC CE ISO
technical::
long time
packaging::
as request
Name::
HZ series of drilling machine
Usage::
Water Well
supply ability::
500sets
drilling angle::
90-75
afther sale serve ability::
high
drilling depth::
130m
Voltage::
380V
max.open hole caliber::
260mm .
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1year
Supply Ability
Supply Ability:
1000 Set/Sets per Week
Packaging & Delivery
Packaging Details
as request
Port
QINGDAO;SHANGHAI;TIANJIN
Lead Time:
3days

  HZ series of drilling machine

Drilling depth

m

100

250

300

600

Drilling  DI

mm

300

200

150

75

Open hole DI

mm

300

End hole  DI

mm

75

Drilling rod

mm

Φ60

Drilling angle



90°-65°

Rotary Spindle

Spindle forward speed

r/min

30-1050

Spindle reverse speed

r/min

29-137

Spindle stroke

mm

560

Spindle inner diameter

mm

96

Spindle lifting capacity

KN

60

Main Winch  ( drive hydraulic system)

Single line lifting speed

m/min

0-45

Hug floodgate belt width

mm

90

Tightrope diameter

mm

14

Hoist single line lifting capacity

KN

40

Roller diameter

mm

200

Roller cubic measure

m

30

Gear Oil pump

Duplex gear oil pump           CBF-F63/25

Front displacement,pressure



63mL/r    20Mpa

Behind displacement,pressure



 25mL/r    20Mpa

Drilling rig Power

Diesel engine

Hp

   R4105ZD    50HP

Electric motor

KW

   Y180L-4      37KW

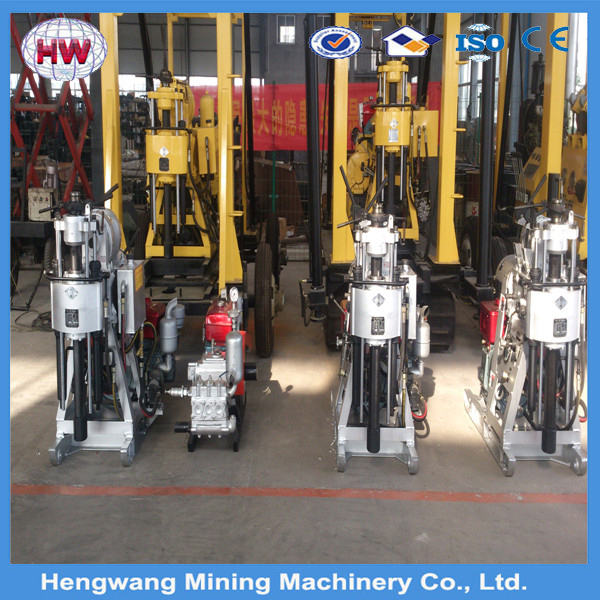

Figure photos for rock drilling









Qualification & certification for rock drilling

History order

Welcome to visit our factory





Kelly

Mob.: +86 13665372568 (WhatsApp,Wechat is available)

Tel.: +86 0537 2882838 QQ: 2853024729

Website: www.chinahwgroup.com


Any enquiry, pls do not heasitate to let Kelly know, best service will be offered to you
