Home > Products > road surface slitting machine /Hand push construction cutting machine/road cutter

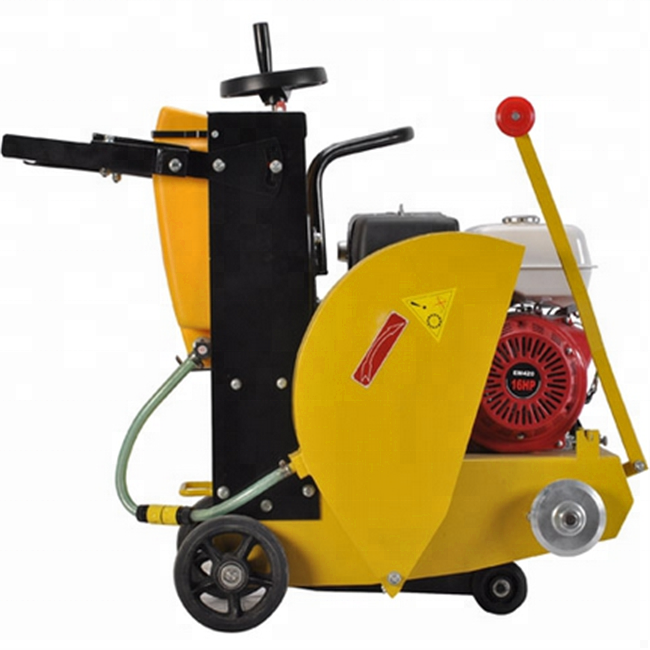

road surface slitting machine /Hand push construction cutting machine/road cutter

Click on the image to view the original image

Product：	views：2road surface slitting machine /Hand push construction cutting machine/road cutter
Branch：	HW
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:35

Product Details

Overview

Quick Details

Cutting Depth:: 160-185mm

Power(W):: 6600

Rotary Speed:: 1-2m/min

Power Source:: Gasoline Engine

After-sales Service Provided:: Engineers available to service machinery overseas

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: HW

Model Number:: HW

Diameter of Blade:: 350/400/450/500mm

Voltage:: 220/380

Weight:: 130KG

Dimension(L*W*H):: 930*565*1020mm

Certification:: CE/SGS/ATEX

Running Speed:: Manual Push

Power Source::: Gasoline Engine

Certification::: CE/SGS/ATEX

Name::: road surface slitting machine

Running Speed::: Manual Push

Max Cutting Depth(mm)::: 185

Water Tank Capacity(L)::: 35

Depth Adjustment::: Handle Rotation

Colour:::: Yellow/Red

Weight::: 130KG

Road Cutting Machine::: Road Cutting Machine .

Supply Ability

Supply Ability:: 1000 Set/Sets per Week

Packaging & Delivery

Packaging Details: wooden case concrete road cutting machine / road cutting machine

Port: Qingdao Shanghai Tianjin

Lead Time:: 3-5days after receive you payment

road surface slitting machine

1.Double water pipe---better cooling both side of blade

2.Rustless/ABS water tank---providing an optimum flow and volume of water for the blade

3.Super-rigid box frame---ensuring straight auts while resisting warping and vibration

4.Hinged front,lift-up blade guard--- to conveniently replace the diamond blade

5.Adjustable height handle---to esaily raise or lower cutting depth

Advantages Of Asphalt Concrete Cutting Machine:

Technical Specification of Asphalt Concrete Cutting Machine:

Model	ROCC-450
Disc Diameter(mm)	350/400/450
Driving	Manual Push
Depth Adjustment	Handle Rotation
Max Cutting Depth(mm)	185
Water Tank Capacity(L)	35
Weight(Kgs)	128
Packing Size(mm)(LWH)	9305651020

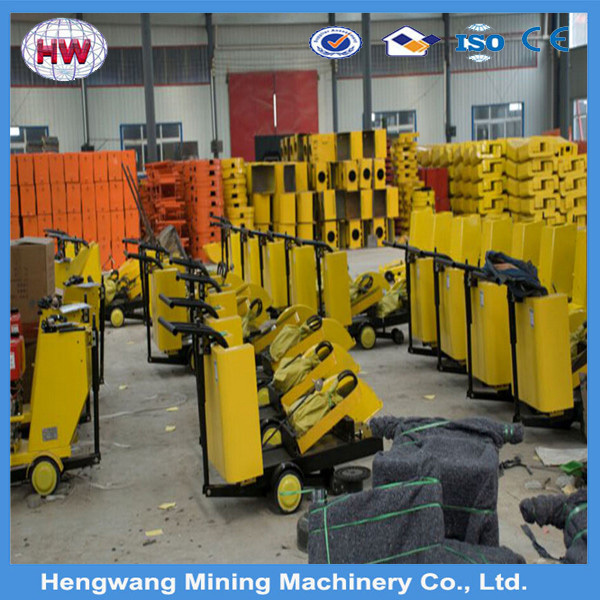

Sample picture :
