Home > Products > Pneumatic frame column drill with good price and good quality for sale
Pneumatic frame column drill with good price and good quality for sale
Click on the image to view the original image
Product： views：2Pneumatic frame column drill with good price and good quality for sale
Branch： pneumatic Roof Bolter
Type： AIR
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:35
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
Type:
AIR
Place of Origin:
Shandong, China
Brand Name:
pneumatic Roof Bolter
Usage:
Coal
Voltage:
380/660
Dimension(L*W*H):
450*256*210mm
Weight:
45KG,49kg
Certification:
CE/SGS/ATEX
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Maximum Push force:
8.2KN
Maximum output power:
2.1kw
Free running speed:
600r/min
Static torque:
200 N/m
No-load speed:
190 r/min
Hexagonal shape shank tail:
19mm
Rated air pressure:
0.5Mpa
Model:
MQT
Supply Ability
Supply Ability:
2000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden box
rock bolt drill
Port
Qingdao Shanghai Tianjin

  Pneumatic frame column drill with good price and good quality for sale    :







Product Description

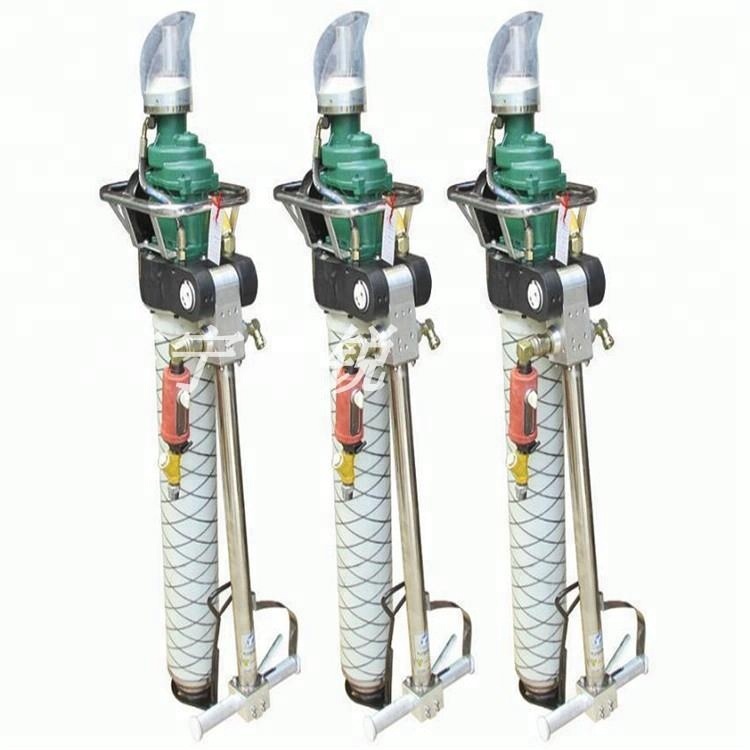

  pneumatic Roof Bolter

Parameter

Unit

MQT110

MQT120

MQT130

Stress range

Mpa

0.4-0.63

0.4-0.63

0.4-0.63

Rated pressure

Mpa

0.5

0.5

0.5

Rated torque

n.m

110

120

130

Rated speed

r/min

≥230

≥200

≥180

Maximum output power

KW

≥2.4

≥2.6

≥3.0

Maximun load torque

n.m

≥180

≥220

≥260

starting torque

n.m

≥170

≥180

≥230

Load gas consumption

m³/min

≤3.8

≤4.2

≤4.4

Maximum speed of revolution

r/min

620

500

460

Weight

Kg

48

52

54

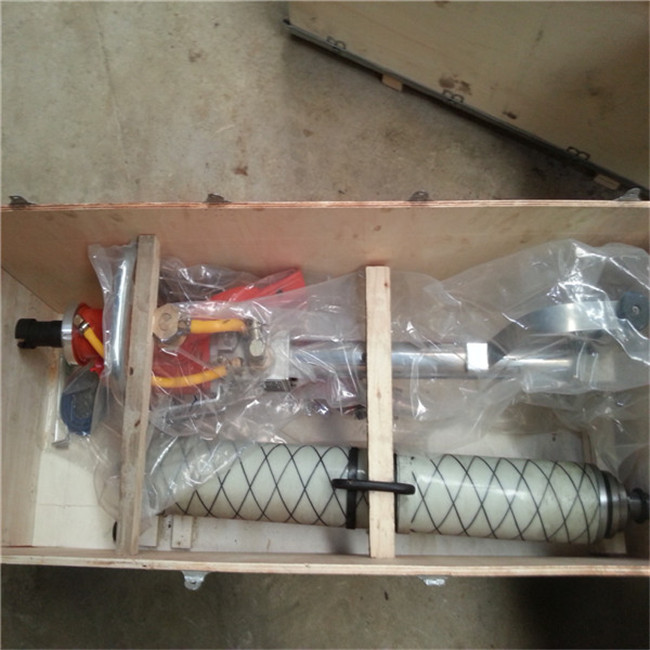

  Sample pic     :
 Good cooperation   :

Transaction history :







Quality certificate :





  rock bolt drill
